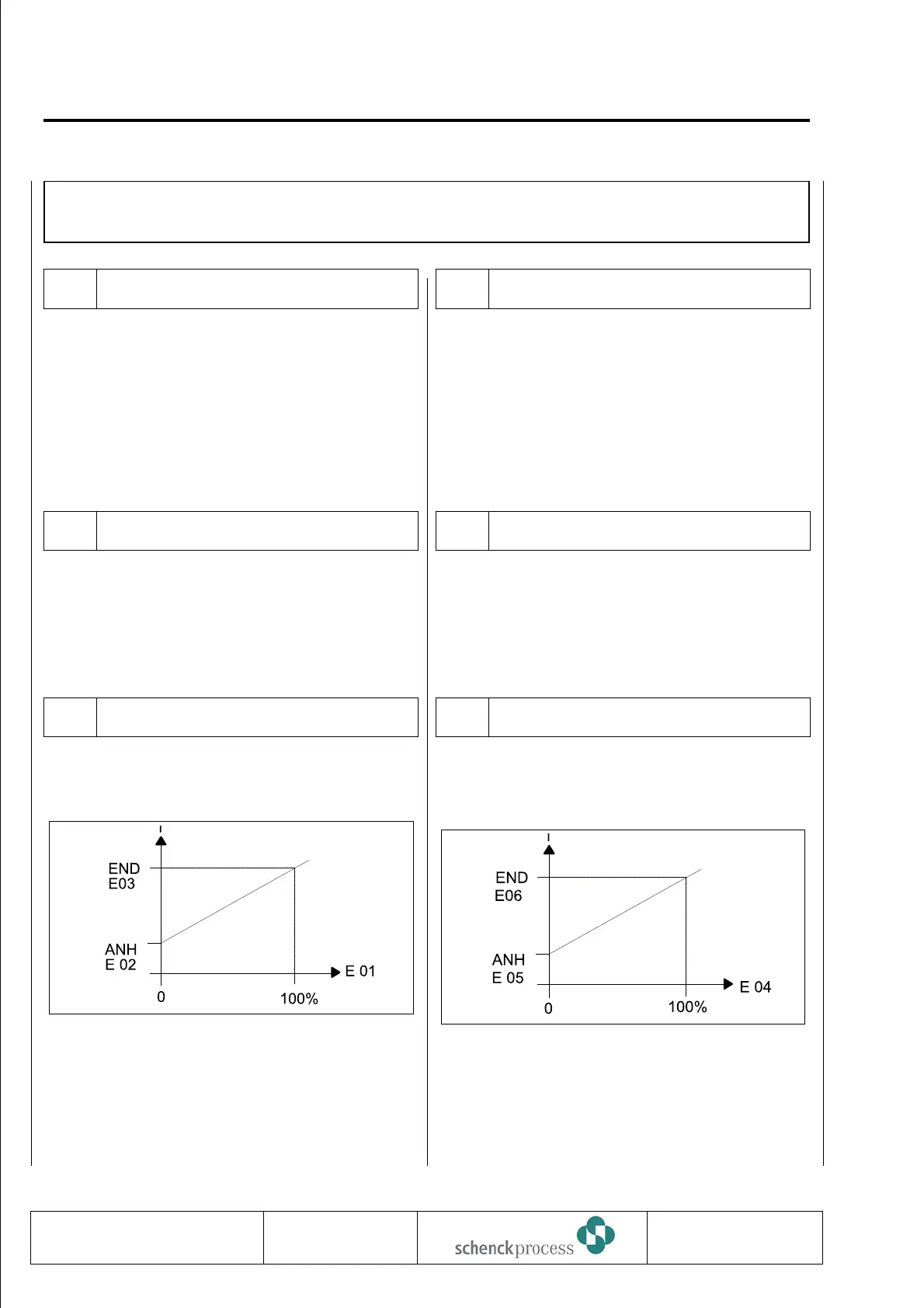

Schenck process Intecont Plus Belt Weigher User Manual

Block E : Analog Output
E01 Source AO 1
Range: I (feed rate)
Q (belt load)
V (belt speed)
Default: I
One of these values can be output in analog fashion.
Filters: Parameters G 02, G 04, G 05
E02 Elevation AO 1
Range: 0,00...20,00 mA Default: 4,00 mA
Output current with E 01 set to 0.
The smallest value is limited to E 02, also in stop state
of scale.
E03 Limit Value AO 1
Range: 0,00...1000,00 mA Default: 20,00 mA
Output current with E 01 set to 100 % (nominal value).
Range of output current is limited to 0...20 mA.
E04 Source AO 2
Range: I (feed rate)
Q (belt load)
V (belt speed)
Default: Q
One of these values can be output in analog fashion.
Filters: Parametesr G 02, G 04, G 05
E05 Elevation AO 2
Range: 0,00...20,00 mA Default: 4,00 mA
Output current with E04 set to 0.
The smallest value is limited to E 05, also in stop state
of scale.
E06 Limit Value AO 2
Range: 0,00...1000,00 mA Default: 20,00 mA
Output current with E04 set to 100 % (nominal value).
Current output range is limited to 0...20 mA by the
hardware.
0837
VBW INTECONT PLUS
Parameterization
BV-H2214 GB 56
Technische
Redaktion PDE-RD
Transmission to third parties and reproduction of
this documentation are not permitted. Schenck
Process GmbH reserves all rights of ownership
and copyrights.
