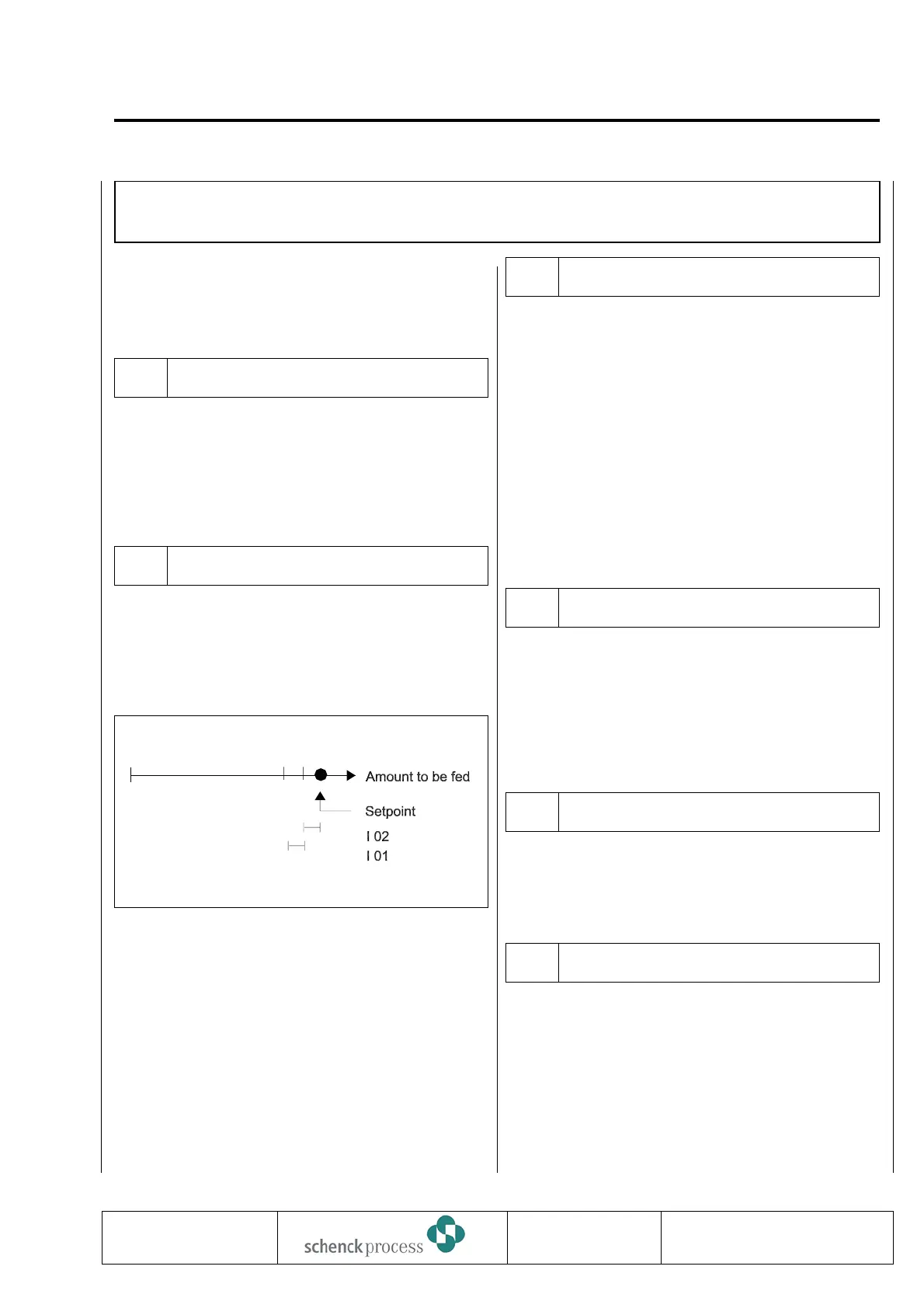

Block I : Batch Mode
The sequence of the available batch modes is
detailed in Chapter “Details”.
Make sure start source B 06 is not set to “v”.
I01 Batch Dribble FD
Range: 0.00...220 000 kg Default: 100 000 kg
If batch setpoint is reached “Batch Setpoint I 01-I 02",
full feed output Q11 is reset; dribble feed output Q12
activated.
These signals can be used, e.g. to reduce belt speed
or prefeeder output.
I02 Batch End
Range: 0.00...220 000 kg Default: 0.000 kg
If batch setpoint minus pre-cut-off amount I 02 is
reached, batch is complete.
Drive, or prefeeder, stops.
I 02 makes allowance for possible afterflow.
I03 Adaption Fact.
Range: 0.0...1.0 Default: 1.0
Pre-cut-off amount I 02 is adapted automatically, so
that the system better suits the situation upon next
batch.
Value is corrected by the batch error*I03.
I 03 = 0 : no adaption
I 03 = 1 : full adaption
Intermediate values cause a filtered adaption,
preferred in the case of plants with non-exact
repeatability.
I04 Batch Tolerance +
Range: 0.0...100.0 % Default: 1.0 %
Reference: Batch Setpoint
Defines the value admissible for excess of batch
setpoint.
I05 Batch Tolerance -
Range: 0.0...100.0 % Default: 1.0 %
Reference: Batch Setpoint
Defines the value for shortfall of batch setpoint.
I06 Out of Tolerance B1
Range: WARNING 1
WARNING2
ALARM
IGNORE Default: WARNING 1
Event message B1 reports excess of limit values I 04
or I 05.
0837
INTECONT PLUS VBW
Parameterization
BV-H2214 GB 61
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
