1.2 Removing and installing cylinder head

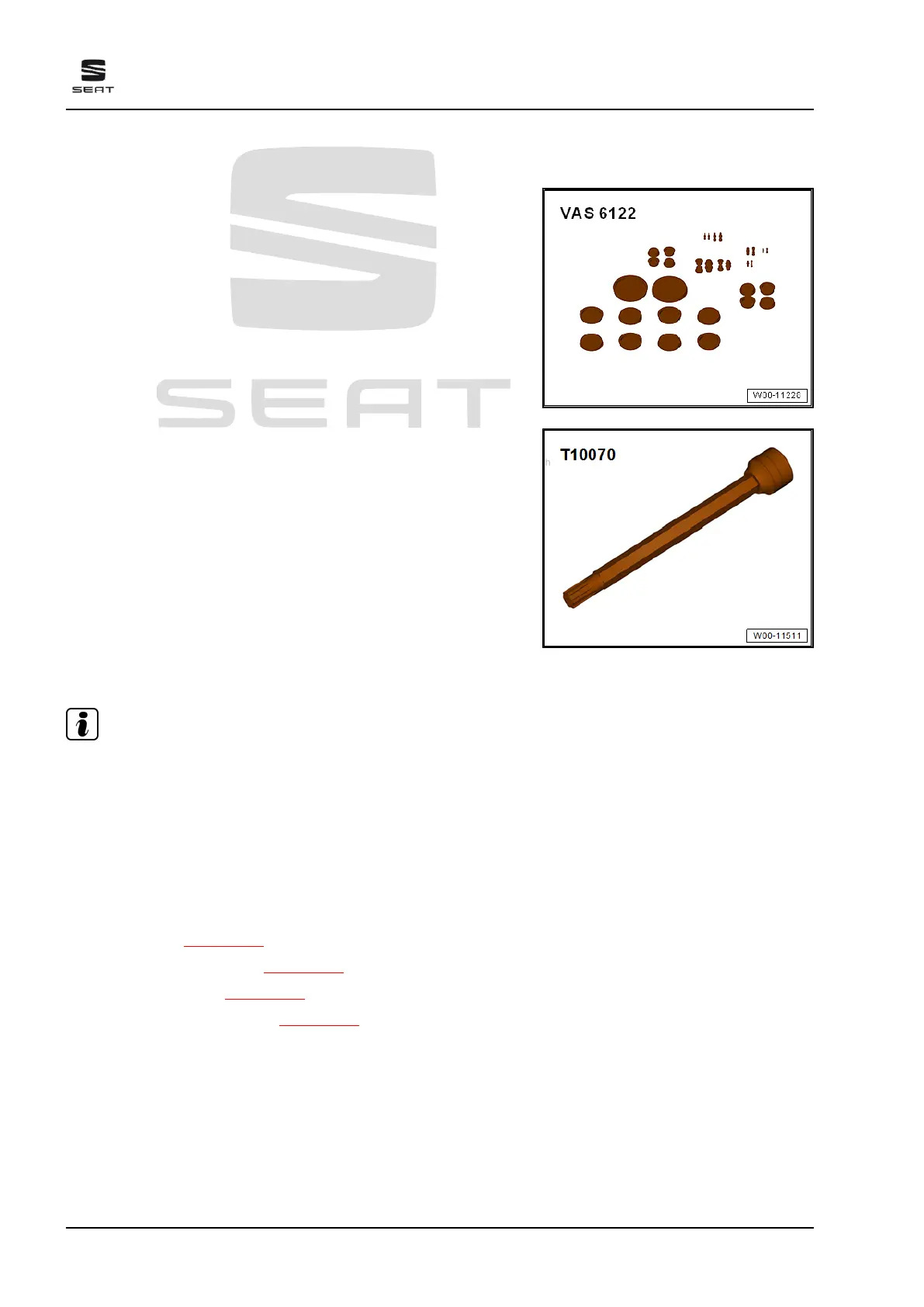

Special tools and workshop equipment required
♦ Sealing cap set for engine - VAS 6122-
♦ Special wrench (Polydrive) - T10070-
Removing
Note
♦
Before the cylinder head is removed, the engine support and
engine mounting must be reinstalled temporarily, because the
eyes of the support bracket are secured to the cylinder head.
♦
Fit the cable ties in the original position when installing.
♦
Seal open channels of intake and exhaust system with suitable
plugs from engine sealing cap set - VAS 6122- .
♦
Cover the openings in the gearbox with a cloth to avoid letting
coolant in the clutch housing.
– Drain coolant ⇒ page 239 .
– Remove air filter housing ⇒ page 356 .
– Remove camshafts ⇒ page 158 .
– Remove catalytic converter ⇒ page 420 .
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
108 Rep. gr.15 - Cylinder head, valve gear
