Removing
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐
sulation .

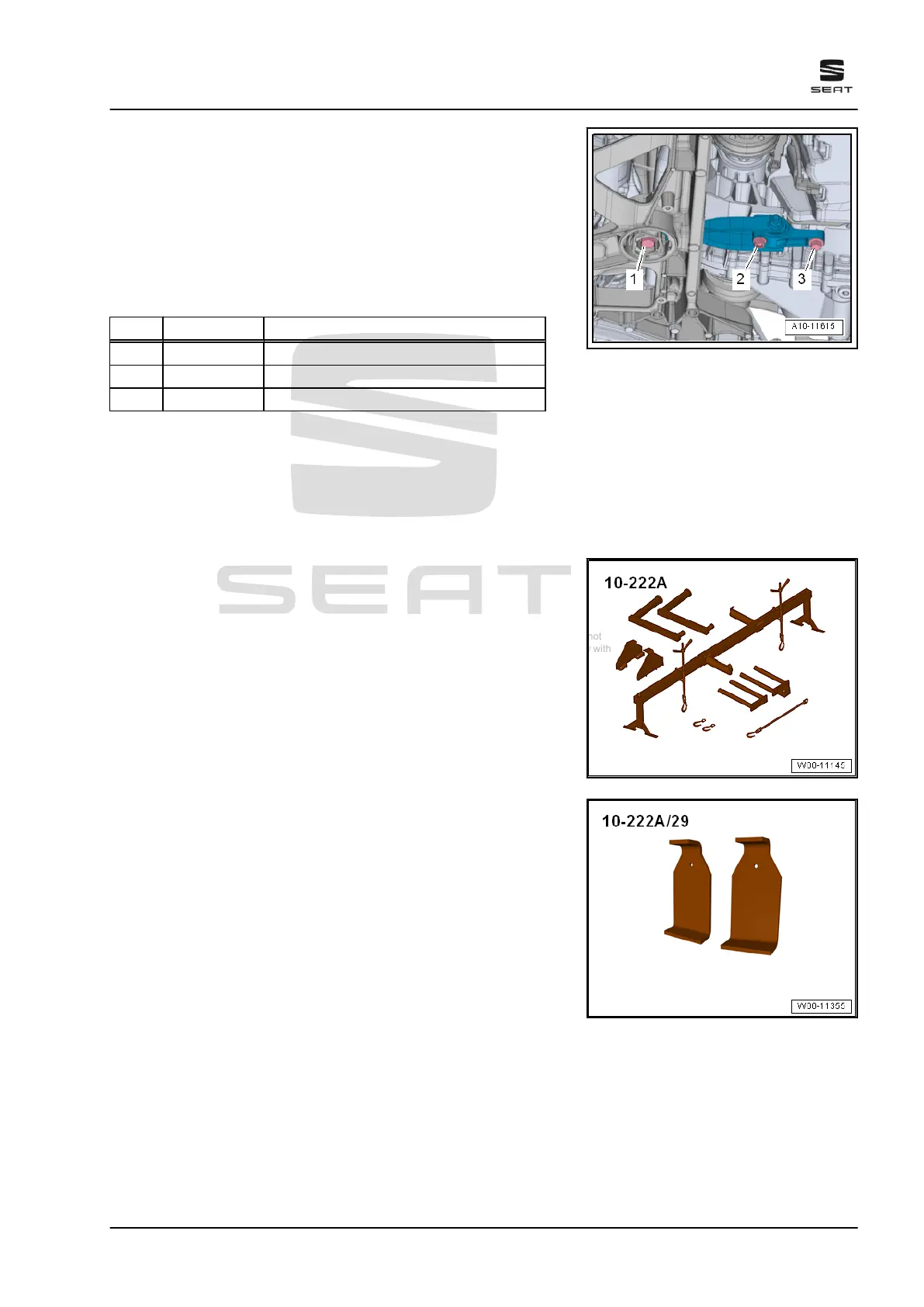

– Remove bolts -1, 2, 3- and detach pendulum support.
Fitting
Install in the reverse order of removal, observing the following:
Specified torques
Stage Bolts Specified torque/turning further angle
1. -2 and 3- 50 Nm
2. -1- 130 Nm
3. -1 - 3- Turn 90° further
♦ ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insula‐
tion; Assembly overview - noise insulation
2.5 Supporting engine in installation posi‐
tion
Special tools and workshop equipment required
♦ Support tool - 10 - 222 A-
♦ Adapter - 10 222A/29-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
2. Assembly bracket 51
