7 - O-ring
❑ Renew if damaged
8 - O-ring
❑ Renew if damaged.
9 - Hall sensor - G40-
❑ Inspect O-ring for damage before fitting
❑ Removing and fitting ⇒ page 455
10 - Bolt
❑ 9 Nm
11 - O-ring
❑ Renew if damaged
12 - Engine speed sensor - G28-
❑ Inspect O-ring for damage before fitting
❑ Removing and fitting ⇒ page 456
13 - Bolt
❑ 9 Nm

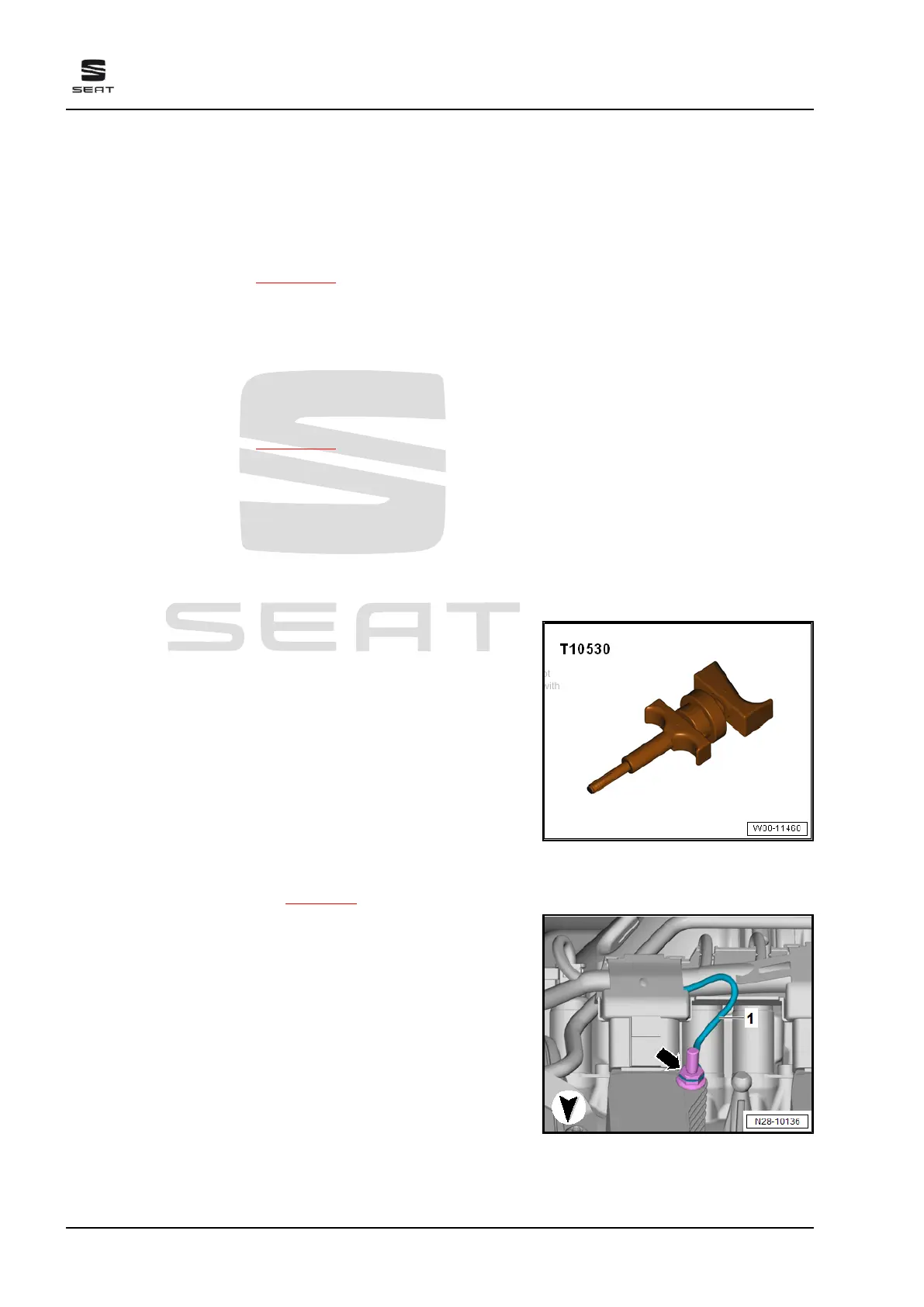

1.2 Ignition coils with output stage: remov‐
ing and fitting
Special tools and workshop equipment required
♦ Puller - T10530-
Removing
– Remove engine cover panel ⇒ page 57 .
– If fitted, detach earth wire -1- of ignition coil to be removed,
and unscrew bolt -arrow-.
