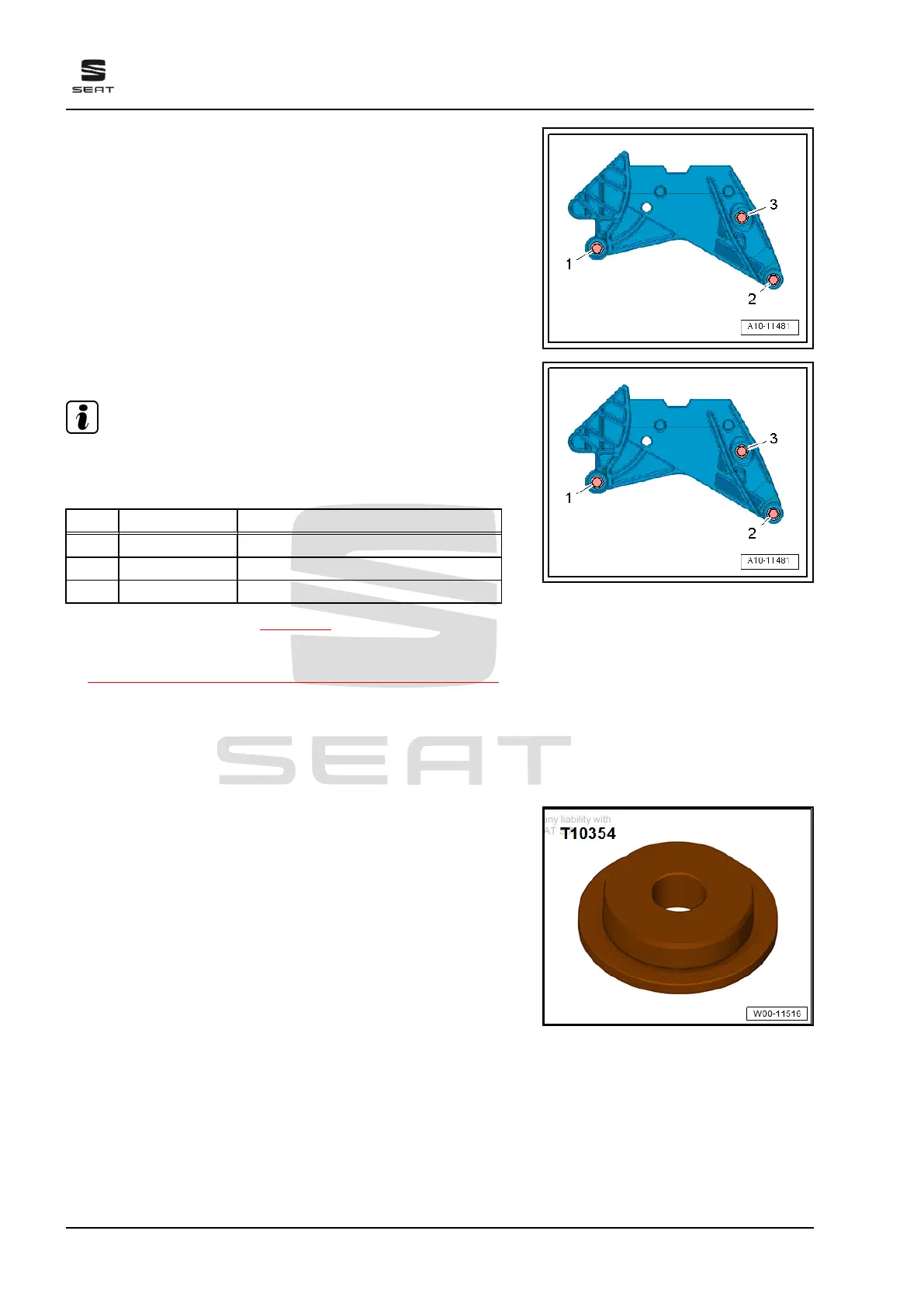

– Slightly lower engine, and unscrew bolts -1- and -2- from below
using bit - T10099- .
– Lift engine again, and unscrew bolt -3- from above.
Fitting
Install in the reverse order of removal, observing the following:
Engine support - Tightening torque and sequence
Note
Renew bolts
– Tighten bolts in stages in the sequence shown.
stage Bolts Specified torque/turning further angle
1. -1 - 3- 7 Nm
2. -1 - 3- 40 Nm
3. -1 - 3- Turn 90° further
– Install engine mountings ⇒ page 45 .
Specified torques
♦ ⇒ “2.1 Installation overview - assembly mountings”, page 44
♦ ⇒ General body repairs, exterior; Rep. gr. 66 ; Wheel housing
liners; Assembly view - front wheel housing liner
1.7 Renewing seal for vibration damper
Special tools and workshop equipment required
♦ Thrust piece - T10354-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
70 Rep. gr.13 - Crankshaft group
