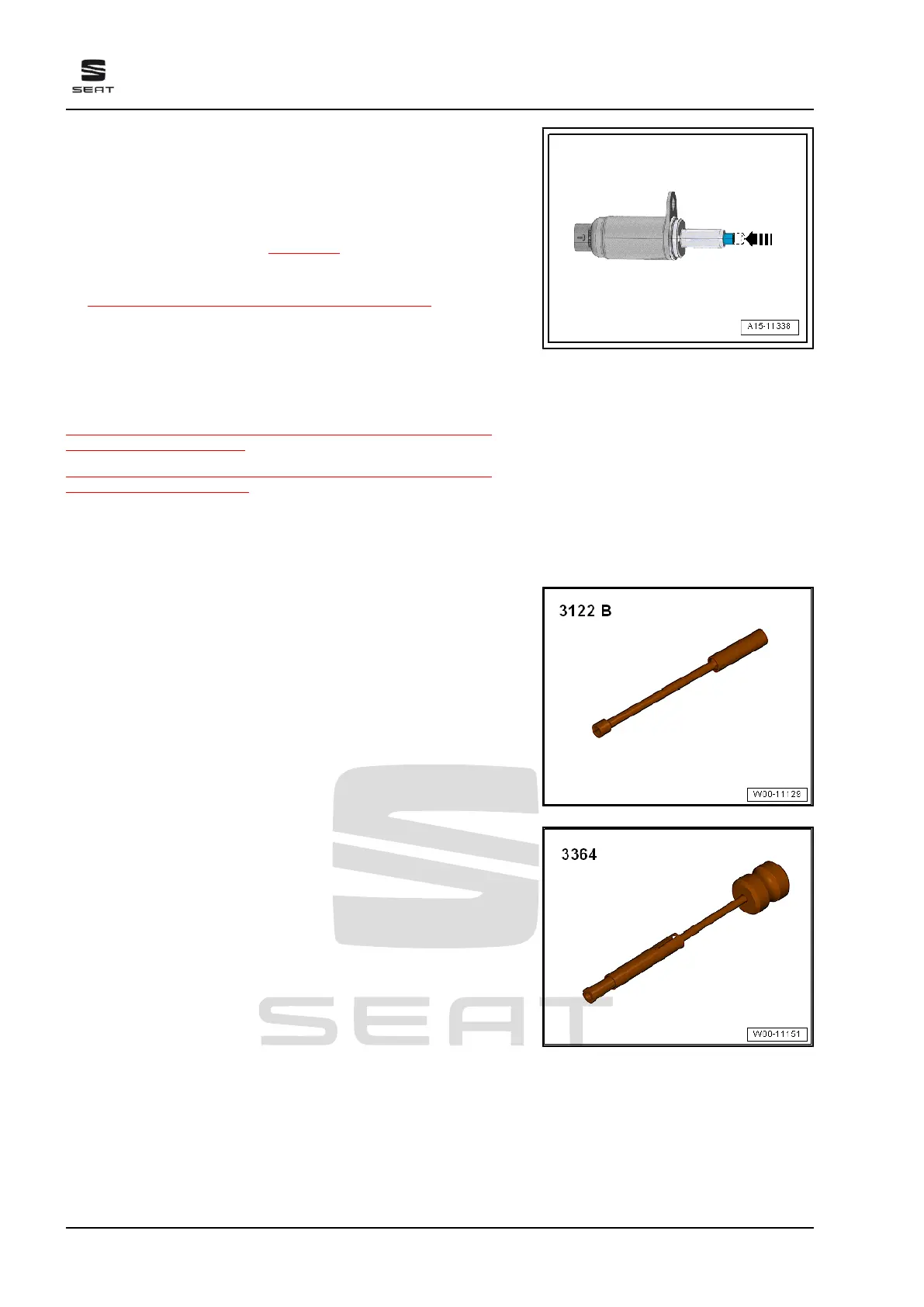

• Installation position of the actuators for camshaft adjuster.
– Press in pin of actuator for camshaft adjustment -arrow- by
hand.
• The dowel pin of the actuator may not be in an unlocked po‐
sition.
– Install engine cover panel ⇒ page 57 .
Specified torques
♦ ⇒ “4.1 Assembly overview - valve gear”, page 153
4.7 Removing and installing valve stem
seals
⇒ “4.7.1 Removing and installing valve stem oil seals (cylinder
head installed)”, page 188
⇒ “4.7.2 Removing and installing valve stem oil seals (cylinder
head removed)”, page 193
4.7.1 Removing and installing valve stem oil
seals (cylinder head installed)
Special tools and workshop equipment required
♦ Spark plug socket and extension - 3122B-
♦ Valve stem seal puller - 3364-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
188 Rep. gr.15 - Cylinder head, valve gear
