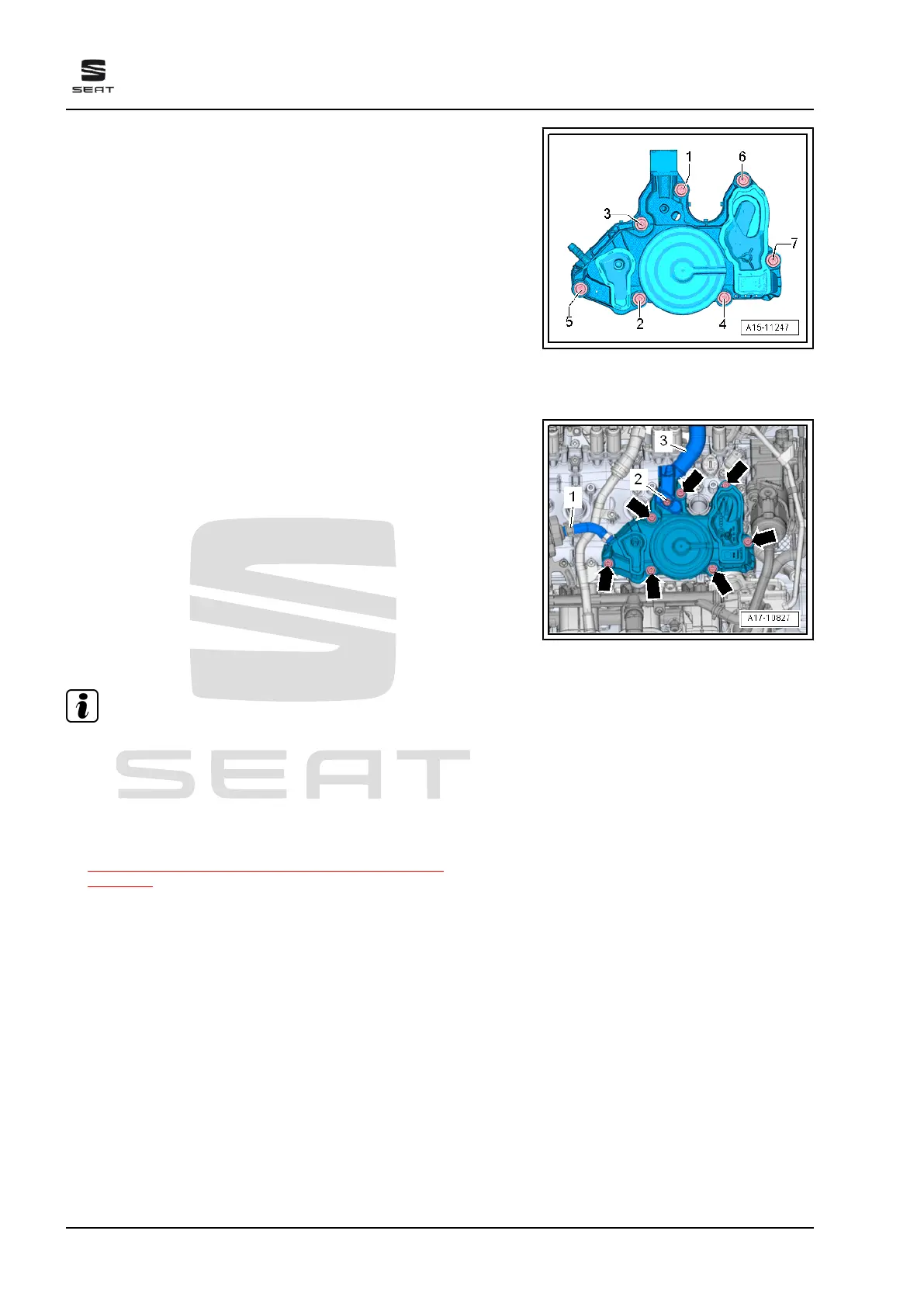

Tightening sequence - oil separator
– Tighten bolts to 9 Nm in sequence -1 ... 7-.
3.2 Removing and installing the oil separa‐
tor
Removing
– Release electrical connectors at ignition coils and unplug from
ignition coils simultaneously.
– Unscrew ignition coil bolts “3 and 4”, and pull out ignition coils.
– Release hose clip -1- and detach hose from activated charcoal
filter solenoid valve 1 - N80- .
– Remove bolt -2- and detach crankcase breather hose -3- from
oil separator.
– Remove bolts -arrows- and detach oil separator.
Fitting
Install in the reverse order of removal, observing the following:
Note
♦
Renew gasket and seals.
♦
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue
(ETKA) .
Specified torques
♦ ⇒ “3.1 Exploded view - crankcase breather system”,
page 219
