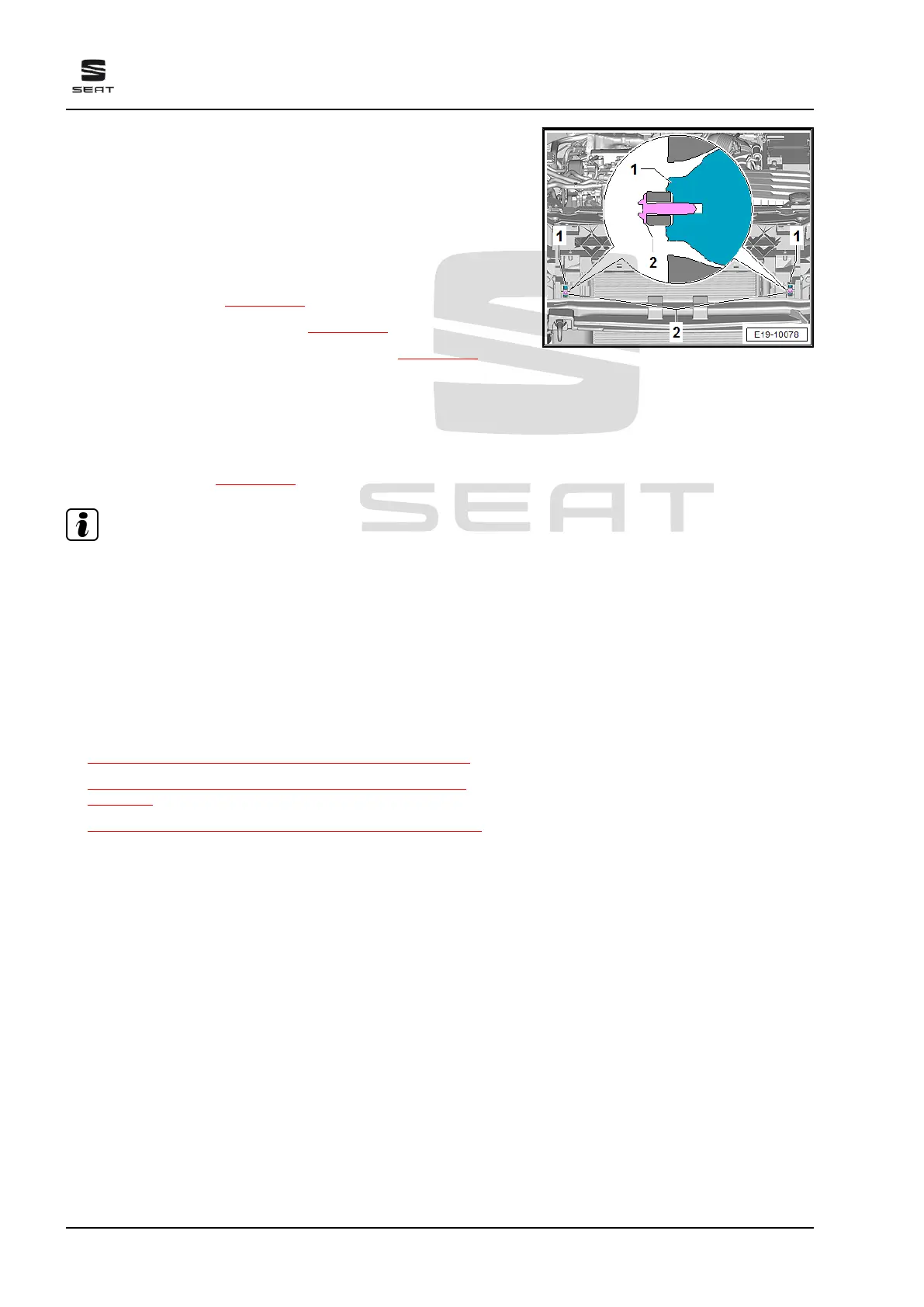

Vehicles with bearing support for charge-air cooler, bolted.
– Use bolts to secure radiator mountings, whose fasteners have
been pinched off, to lock carrier. Screws -2- ⇒ ETKA (elec‐
tronic spare parts catalogue) .
• Tightening torque: 5 Nm
Continued for all vehicles
– Install lower air ducts on both sides from lock carrier.
– Install radiator cowl ⇒ page 300 .
– Fit charge air hose connections ⇒ page 321
– Connect coolant hose with plug-in connector ⇒ page 292 .
– Install headlight ⇒ Electrical system; Rep. gr. 94 ; Removing
and installing headlights .
– Install front bumper cover ⇒ General body repairs, exterior;
Rep. gr. 63 ; Front bumper; Removing and installing front
bumper .
– Replenish coolant ⇒ page 244 .
Note
♦
Hose connections and hoses for charge air system must be
free of oil and grease before assembly.
♦
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue
(ETKA) .
♦
To ensure that the charge air hoses can be properly secured
at their connections, spray rust remover onto the worm thread
of used hose clips before installing.
Specified torques
♦ ⇒ “4.1 Exploded view - radiator/radiator fans”, page 291
♦ ⇒ “4.3 Exploded view - radiator cowl and radiator fans”,
page 295
♦ ⇒ “2.1 Assembly overview - charge air system”, page 319
2.4 Removing and installing charge pres‐
sure sender - G31-
Removing
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐
sulation .
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
326 Rep. gr.21 - Turbocharging/supercharging
