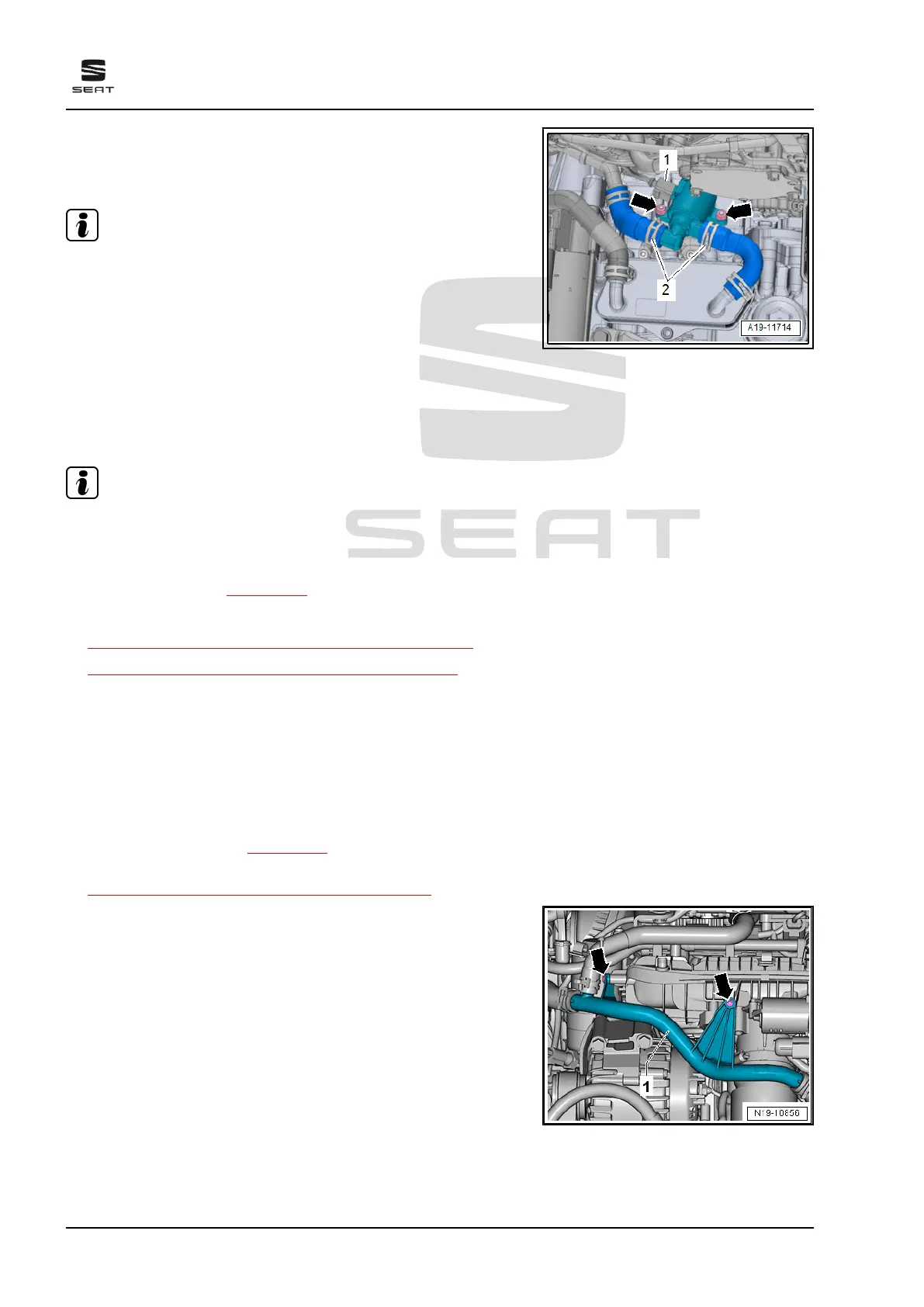

– Unplug connector -1-.
– Clamp off coolant hoses on the coolant valve for gearbox -
N488- with hose clamps -3094- .
Note
Place a cloth underneath to catch escaping coolant.
– Seal the connection of the gearbox oil radiator with a suitable
cap from the engine sealing cap set - VAS 6122- .
– Release hose clips -2- and disconnect coolant hoses.
– Remove nuts -arrows- and detach coolant valve for gearbox -
N488- .
Fitting
Install in the reverse order of removal, observing the following:
Note
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue (ET‐
KA) .
– Check coolant level ⇒ page 244 .
Specified torques
♦ ⇒ “2.2 Exploded view - electric coolant pump”, page 270
♦ ⇒ “3.1 Exploded view - air cleaner housing”, page 355
♦ Assembly overview - noise insulation ⇒ General body repairs,
exterior; Rep. gr. 66 ; Noise insulation; Assembly overview -
noise insulation .
2.9 Removing and installing actuator for en‐
gine temperature regulation - N493-
Removing
– Remove coolant pump ⇒ page 276 .
– Remove throttle valve module - GX3-
⇒ “4.1 Exploded view - intake manifold”, page 358 .
– Unscrew coolant pipe from intake manifold -arrows-.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
282 Rep. gr.19 - Cooling
