4.6 Removing and installing radiator fans
⇒ “4.6.1 Removing and installing radiator fan V7 ”, page 302
⇒ “4.6.2 Removing and installing radiator fan V177 ”, page 302
4.6.1 Removing and installing radiator fan -
V7-
Removing
Note
All cable ties must be installed in their same place again.

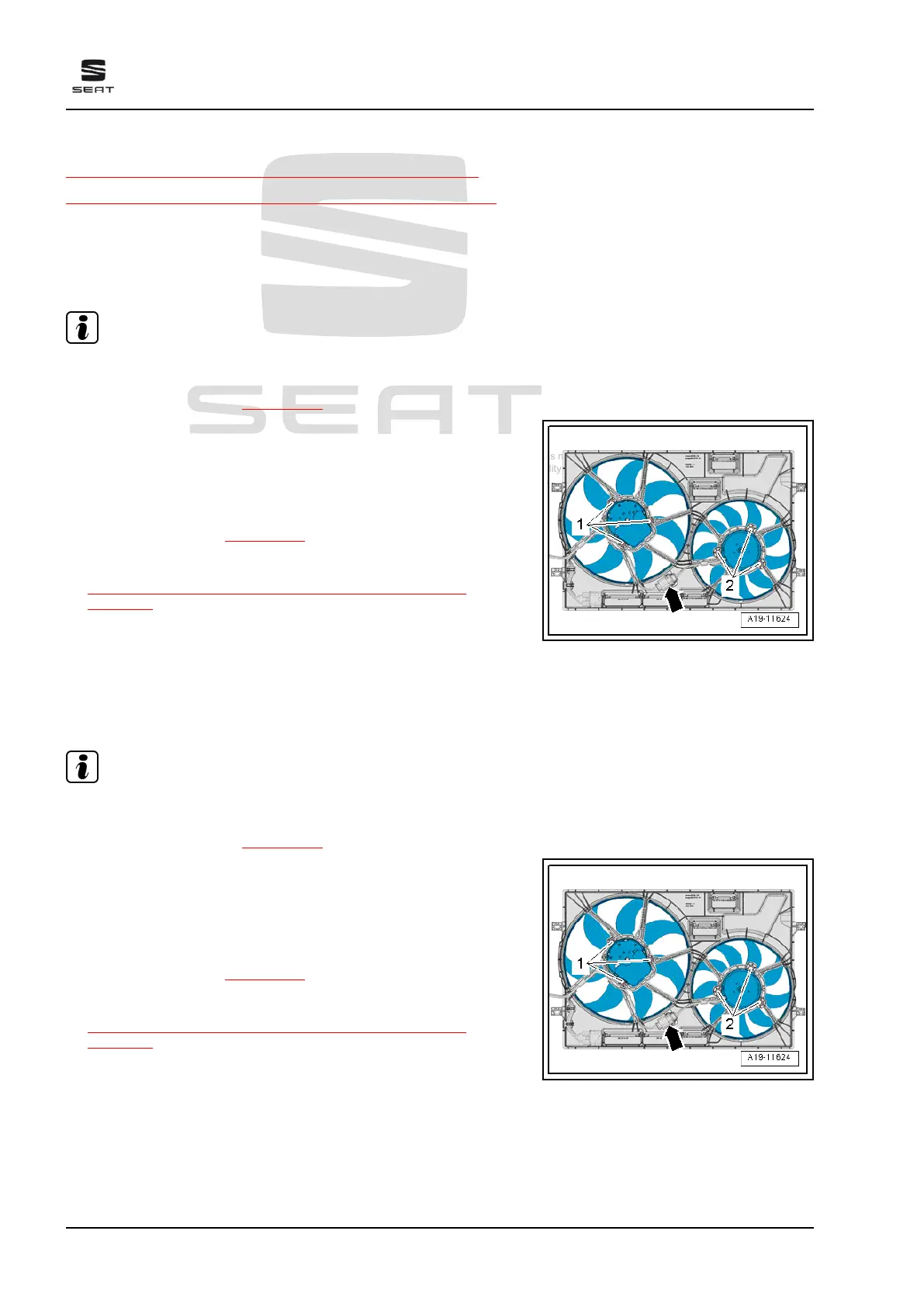

– Remove radiator cowl ⇒ page 300 .
– Disconnect electrical connector -arrow-.
– Unscrew bolts -1- and remove radiator fan - V7- .
Fitting
Install in the reverse order of removal, observing the following:
– Install radiator cowl ⇒ page 300 .
Specified torques
♦ ⇒ “4.3 Exploded view - radiator cowl and radiator fans”,
page 295
4.6.2 Removing and installing radiator fan -
V177-
Removing
Note
All cable ties must be installed in their same place again.
– Remove radiator cowl ⇒ page 300 .
– Disconnect electrical connector -arrow-.
– Unscrew bolts -2- and remove radiator fan - V177- .
Fitting
Install in the reverse order of removal, observing the following:
– Install radiator cowl ⇒ page 300 .
Specified torques
♦ ⇒ “4.3 Exploded view - radiator cowl and radiator fans”,
page 295
