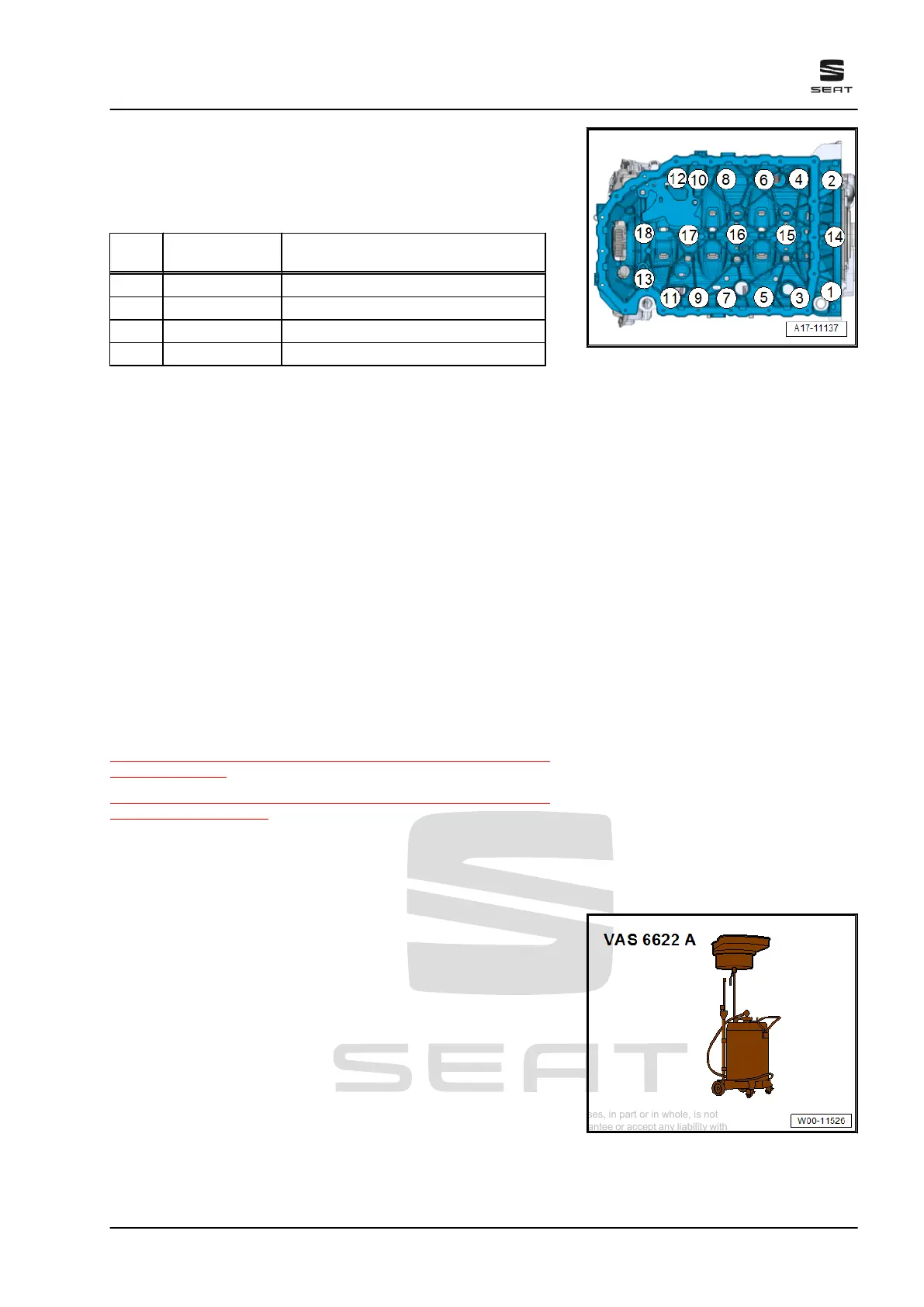

Oil sump upper part 18 bolts - torque and tightening sequence
• Renew bolts after removing.
• Always use 18 bolts.
– Tighten bolts in stages in the sequence shown.
stage Bolts Specified torques/turning further an‐
gle
1. -1 … 18- 8 Nm
2. -1, 2- Turn 180° further
3. -3 … 13- Turn 45° further
4th -14 … 18- Turn 90° further
1.2 Engine oil
Oil capacity:
⇒ Maintenance ; Booklet 501 ; Fill quantities for engine oil .
The oil capacity was determined experimentally. Due to toleran‐
ces, the oil temperature and the drip time, the actual oil capacity
may differ. The oil capacity also depends on the type of repair
work which has been performed. The correct oil level is indicated
by the marking on the dipstick.
Engine oil specifications⇒ Maintenance ; Booklet 501 ; Engine
oil standards .
Oil change ⇒ Maintenance ; Booklet 501 ; Changing engine oil
and oil filter .
Check engine oil level ⇒ Maintenance ; Booklet 501 ; Engine oil
level: check .
1.3 Removing and installing sump (bottom
section)
⇒ “1.3.1 Removing and installing bottom section of sump, plastic
sump”, page 203
⇒ “1.3.2 Removing and installing bottom section of sump, sheet-
metal sump”, page 205
1.3.1 Removing and installing bottom section
of sump, plastic sump
Special tools and workshop equipment required
♦ Used oil collection and extraction unit - VAS 6622A-
♦ Assembly tool - T10549-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Sump, oil pump 203
