16 - Bolt
❑ 9 Nm
17 - Chain tensioner
18 - O-ring
❑ Always renew after removing
❑ Lubricate lightly with engine oil
19 - Valve for oil pressure control - N428-
❑ Removing and fitting ⇒ page 231
20 - Bolt
❑ Tightening torque ⇒ Item 1 (page 222)
21 - Oil strainer
22 - Oil pump
❑ Removing and fitting ⇒ page 213
23 - Bolt for oil pump
❑ Must be renewed if removed
❑ 8 Nm +90°
24 - O-ring
❑ Always renew after removing
❑ Lubricate lightly with engine oil
25 - Bolt for oil suction pipe
❑ Must be renewed if removed
❑ 4 Nm +45°
26 - Bolt for sump
❑ Must be renewed if removed
❑ Tightening sequence ⇒ page 203
27 - for oil sump - lower part
❑ Tightening sequence ⇒ page 204
❑ Sheet-metal or plastic
❑ Removing and fitting ⇒ page 203

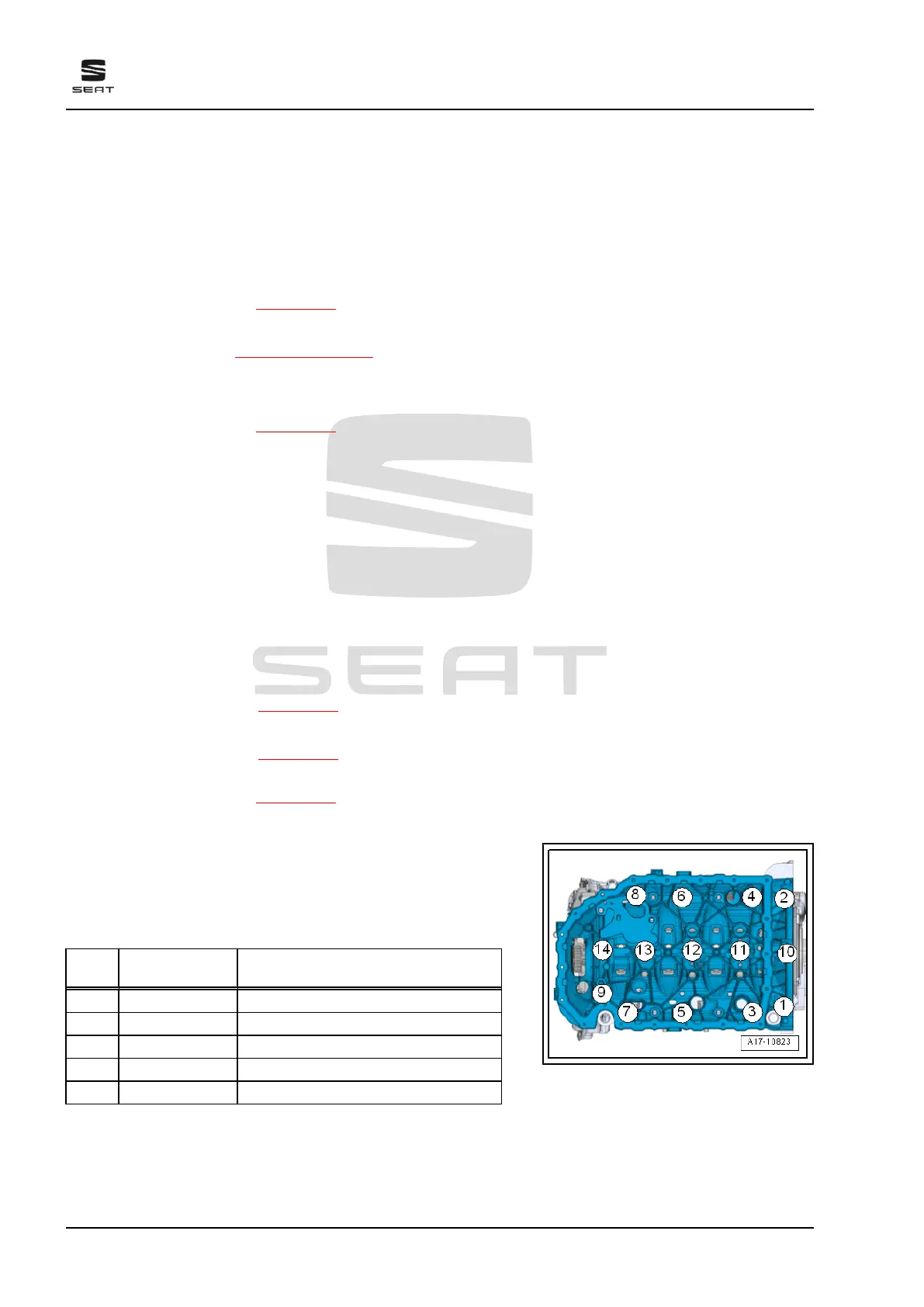

Oil sump upper part 14 bolts - torque and tightening sequence
• Renew bolts after removing.
• Always use 14 bolts.
– Tighten bolts in stages in the sequence shown.
stage Bolts Specified torques/turning further an‐
gle
1. -1 … 14- 8 Nm
2. -1, 2- Turn 180° further
3. -3 … 9- Turn 45° further
4th -10- Turn 180° further
5th -11 … 14- Turn 90° further
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
202 Rep. gr.17 - Lubrication
