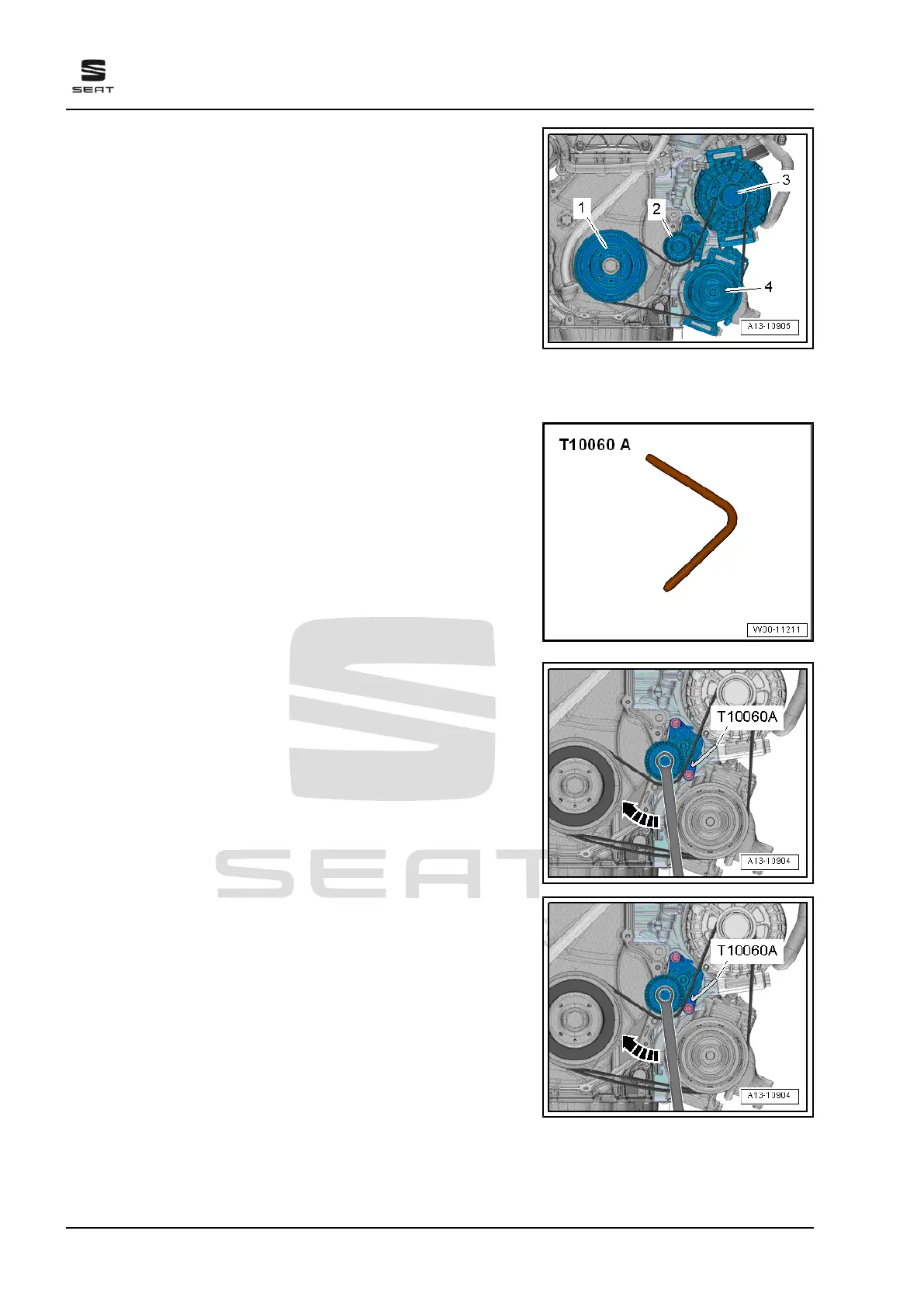

Poly-V belt routing
1 - Vibration damper
2 - Tensioning device for V-ribbed belt
3 - Alternator:
4 - Air conditioner compressor
1.2 Removing and installing poly V-belt
Special tools and workshop equipment required
♦ Locking pin - T10060 A-
Removing
– If poly V-belt is to be reinstalled, mark direction of rotation on
belt using chalk or felt tip pen before removing.
– To slacken poly V-belt turn tensioning device in direction of
-arrow-. To do so, fit tool from “above”.
– Lock tensioner in place with locking pin - T10060 A- .
– Remove the V-ribbed belt.
Vehicles with washer fluid reservoir on right
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐
sulation .
– Remove washer fluid reservoir ⇒ Electrical system; Rep. gr.
92 ; Windscreen wiper system; Removing and installing wash‐
er fluid reservoir .
– If poly V-belt is to be reinstalled, mark direction of rotation on
belt using chalk or felt tip pen before removing.
– To slacken poly V-belt turn tensioner in direction of -arrow-.
– Lock tensioner with locking pin - T10060 A- .
– Remove the V-ribbed belt.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
60 Rep. gr.13 - Crankshaft group
