6 - Vibration damper
❑ With poly V-belt pulley
❑ Removing and fitting ⇒ page 61
❑ Crankshaft oil seal (pulley side): replacement ⇒ page 70
7 - Bracket for ancillary mechanical units
❑ With oil filter and engine oil cooler
❑ Removing and fitting ⇒ page 67
❑ Removing and installing engine oil cooler ⇒ page 216 .
8 - Gasket
❑ Renew
9 - Bolt
❑ Must be renewed if removed
❑ Tightening torque and sequence ⇒ page 59
10 - Bolt
❑ Tightening torque ⇒ Electrical system; Rep. gr. 27 ; Alternator; Alternator: Exploded view
11 - Alternator:
❑ Exploded view ⇒ Electrical system; Rep. gr. 27 ; Alternator; Alternator: Exploded view
12 - Dowel sleeves
❑ For air conditioner compressor
13 - Air conditioner compressor
❑ Do not unscrew or disconnect the refrigerant hoses or pipes
❑ Exploded view ⇒ Rep. gr. 87 ; Air conditioner compressor; Exploded view - air conditioner compressor
drive unit
14 - Bolt
❑ Tightening torque ⇒ Rep. gr. 87 ; Air conditioner compressor; Exploded view - air conditioner compressor
drive unit

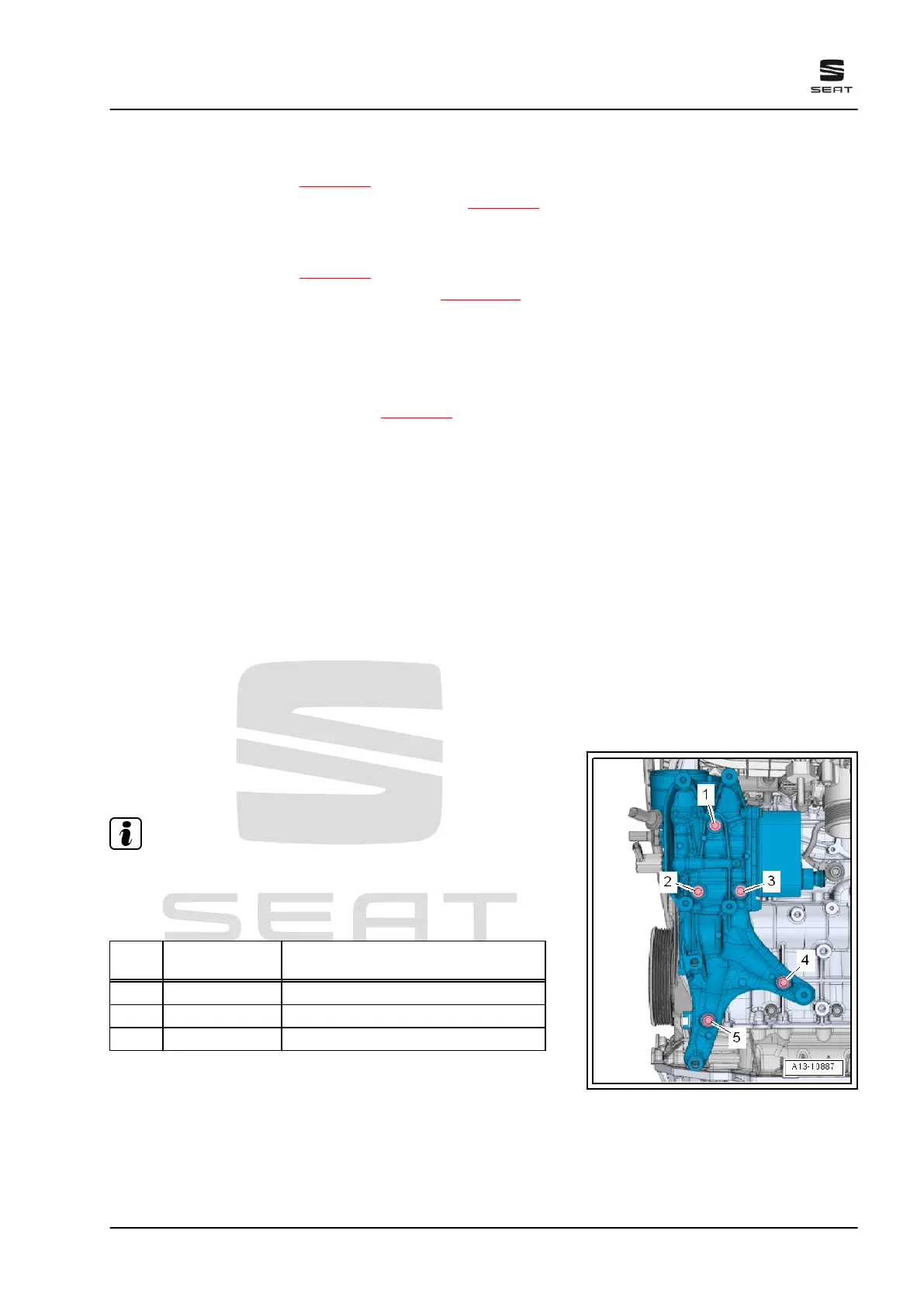

Bracket for ancillaries - tightening torque and tightening sequence
– Fit bracket for ancillaries (first tighten bolt -4- by hand).
Note
Always renew bolts that are tightened with specified tightening
angle.
– Tighten bolts in sequence -1 … 5- in 3 stages as follows:
Stage Bolts Specified torques/turning further an‐
gle
1. -1 to 5- Screw in by hand as far as stop
2. -1 to 5- 20 Nm
3 -1 to 5- Turn 90° further
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Cylinder block (pulley end) 59
