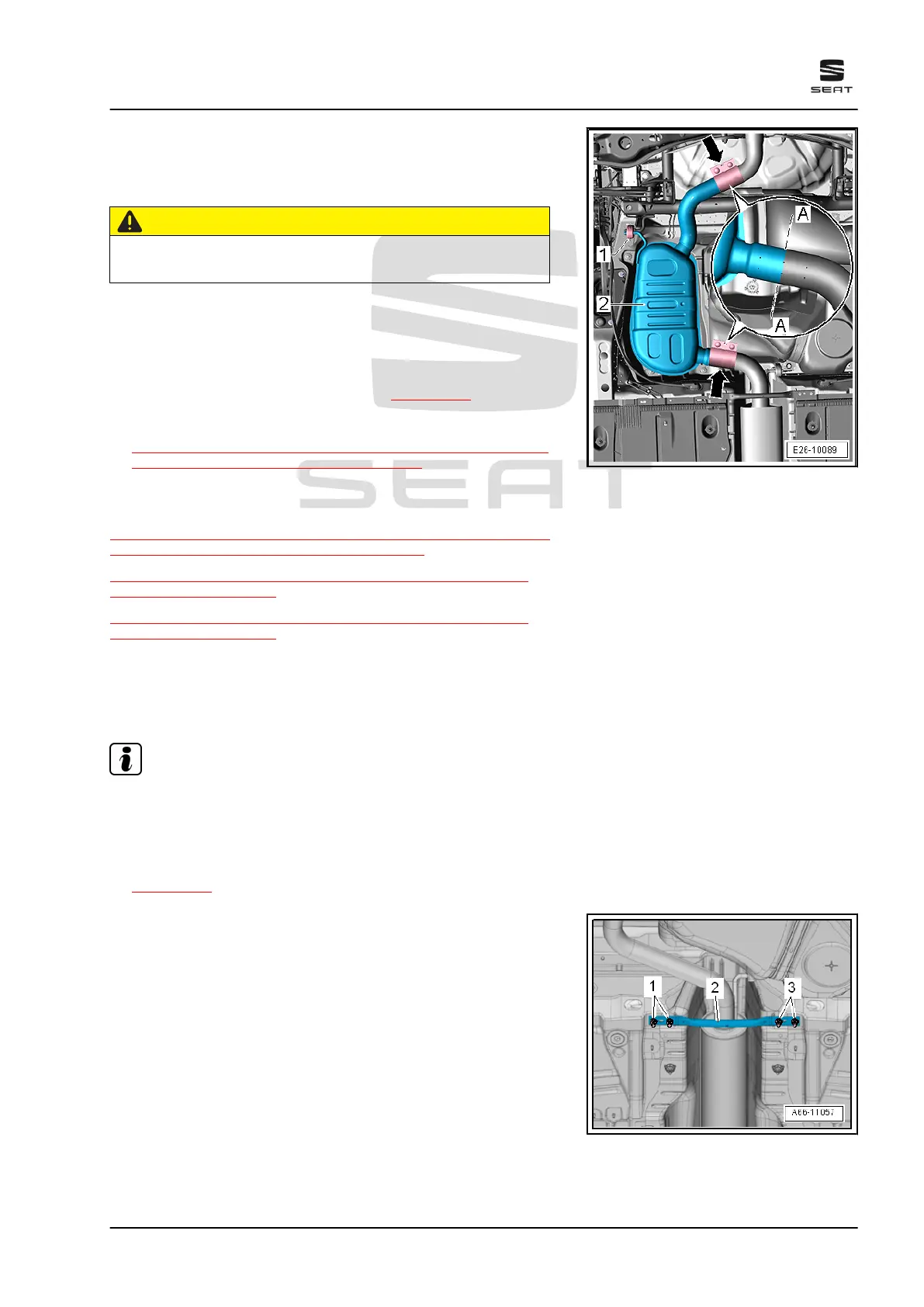

Removing
– Unfasten clamps -arrows-.
– Detach mounting -1- from the silencer.
CAUTION
Risk of accident caused by high weight of silencers.
– Seek help from a second a mechanic for the following work.
– Remove silencer -2-.
Fitting
Install in the reverse order of removal, observing the following:
– Align exhaust system without tension ⇒ page 411 .
Specified torques
♦ ⇒ “1.1.5 Assembly overview - silencers, engine codes CJXA,
CJXE, CJXH, Leon SC, 5-door”, page 396
1.4 Removing and installing front silencer
⇒ “1.4.1 Removing and installing rear front silencer, engine codes
CJSA, CJSB, CJXC, CJXH, CJXG”, page 405
⇒ “1.4.2 Removing and installing front silencer, engine codes
CJSA, CJSB”, page 406
⇒ “1.4.3 Removing and installing front silencer, engine codes
CJXA, CJXE”, page 407
1.4.1 Removing and installing rear front si‐
lencer, engine codes CJSA, CJSB,
CJXC, CJXH, CJXG
Note
♦
In the original factory equipment, this is a single piece with the
centre silencer. Can be renewed individually for repair purpo‐
ses.
♦
The connecting pipe -A- can be cut through at the separating
points in order to renew the rear silencers separately
⇒ page 408 .
Removing
– Remove the rear tunnel bridge -2-.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Exhaust pipes/silencers 405
