CAUTION
On a warm engine, the cooling system is under high pressure.
Hot steam/hot coolant can escape - risk of scalding.
Risk of scalding to skin and body parts.
– Wear protection gloves.
– Wear safety goggles.
– Reduce excess pressure by covering cap of coolant expan‐
sion tank with cloths and opening it carefully.

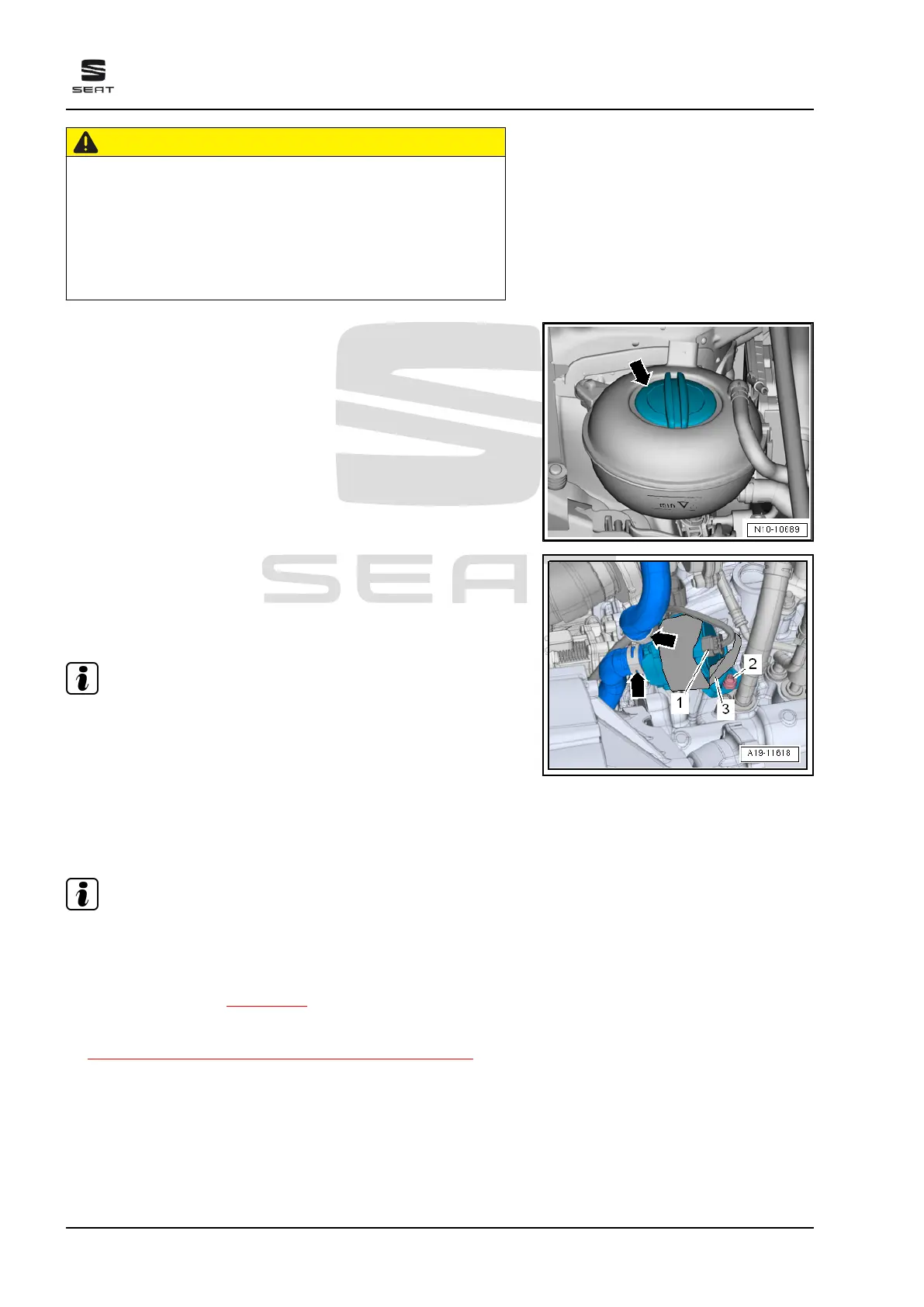

– Open filler cap -arrow- on coolant expansion tank.
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐
sulation .
– Open heat insulation sleeve -3-.
– Unplug connector -1-.
– Disconnect the coolant hose on the auxiliary pump for heating
- 3094- with terminals -V488- .
Note
Place a cloth underneath to catch escaping coolant.
– Release hose clips -arrows- and detach coolant hoses.
– Remove screw -2- and remove the auxiliary pump for heating
- V488- .
Fitting
Install in the reverse order of removal, observing the following:
Note
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue (ET‐
KA) .
– Check coolant level ⇒ page 244 .
Specified torques
♦ ⇒ “2.2 Exploded view - electric coolant pump”, page 270
♦ Assembly overview - noise insulation ⇒ General body repairs,
exterior; Rep. gr. 66 ; Noise insulation; Assembly overview -
noise insulation .
2.7 Removing and installing coolant shut-off
valve - N82-
Special tools and workshop equipment required
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
278 Rep. gr.19 - Cooling
