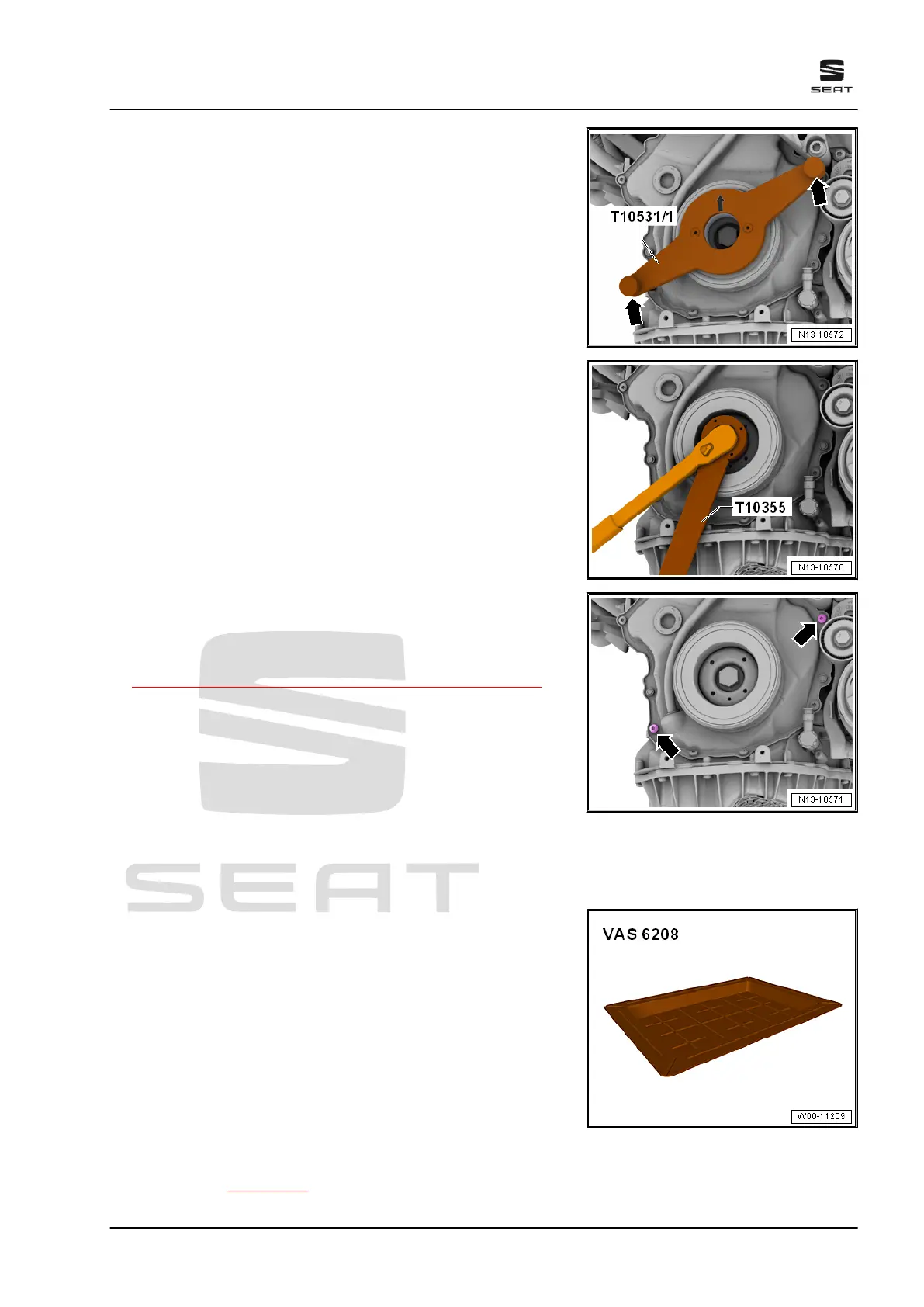

– Unscrew knurled screws -arrows-, and remove support -
T10531/1- .
– Tighten vibration damper bolt using counter-hold tool -
T10355- .
– Screw in new securing bolts -arrows-.
Continue installation following reverse order for removing.
Specified torques
♦ ⇒ “1.1 Exploded view - cylinder block (pulley end)”, page 58
1.5 Removing and installing ancillary brack‐
et
Special tools and workshop equipment required
♦ Drip tray for workshop hoist - VAS 6208-
Removing
– Drain coolant ⇒ page 239 .
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Cylinder block (pulley end) 67
