2 Assembly bracket
⇒ “2.1 Installation overview - assembly mountings”, page 44
⇒ “2.2 Removing and installing engine mountings”, page 45
⇒ “2.3 Removing and installing gearbox mounting”, page 47
⇒ “2.4 Removing and installing pendulum support”, page 50
⇒ “2.5 Supporting engine in installation position”, page 51
⇒ “2.6 Adjusting assembly mounting”, page 55
⇒ “2.7 Checking adjustment of assembly mountings”, page 56

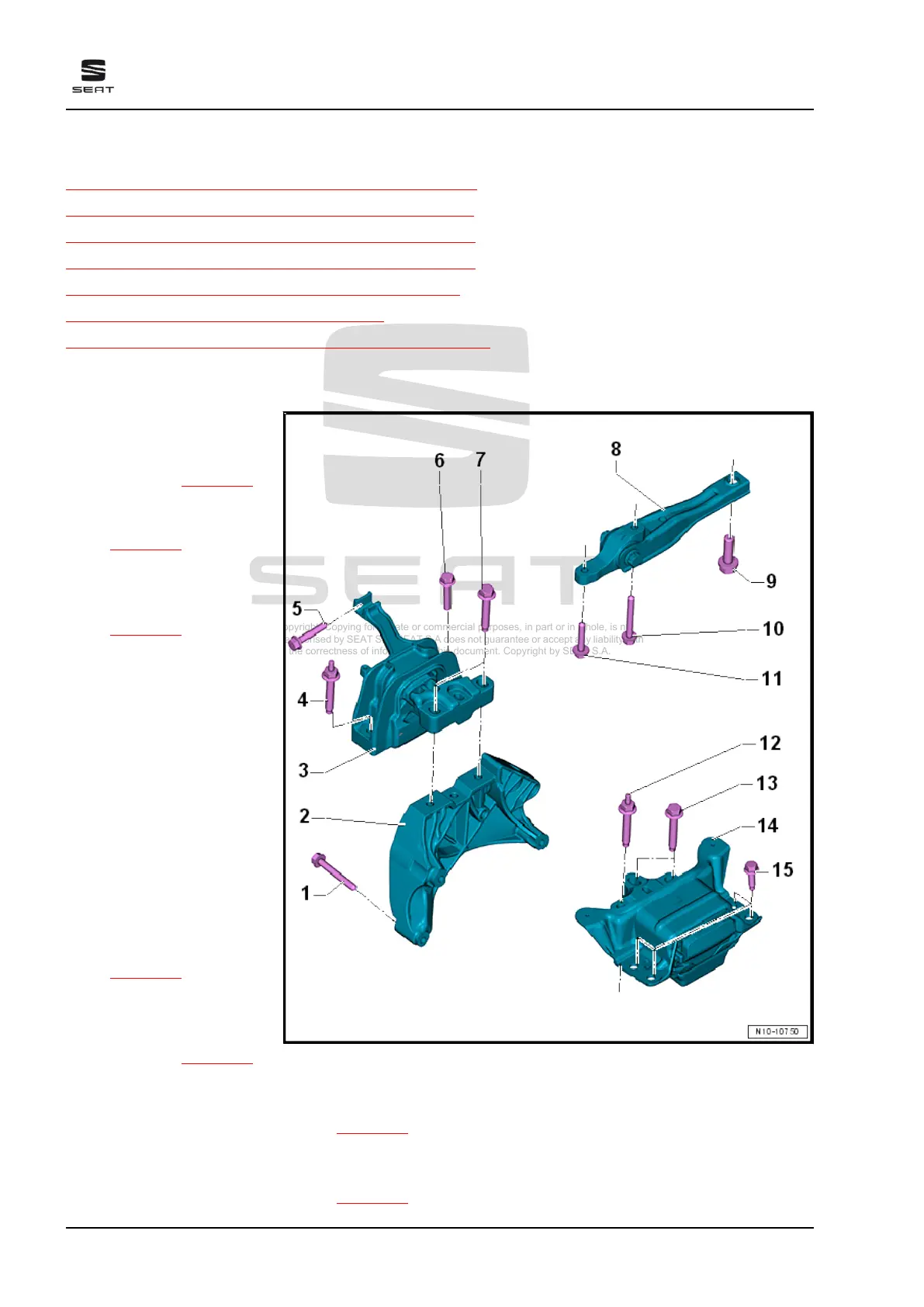

2.1 Installation overview - assembly mountings
1 - Bolt
❑ Renew
❑ Tightening torque and
sequence ⇒ page 70
2 - Engine support
❑ Removing and fitting
⇒ page 69
3 - Engine support.
❑ With support arm
❑ Removing and fitting
⇒ page 51
4 - Bolt
❑ Renew
❑ 40 Nm +90°
5 - Bolt
❑ Renew
❑ 20 Nm +90°
6 - Bolt
❑ Renew
❑ 40 Nm +90°
7 - Bolt
❑ Renew
❑ 60 Nm +90°
8 - Torque reaction support
❑ Removing and fitting
⇒ page 50
9 - Bolt
❑ Renew
❑ Tightening torque and
sequence ⇒ page 50
10 - Bolt
❑ Renew
❑ Tightening torque and sequence ⇒ page 50
11 - Bolt
❑ Renew
❑ Tightening torque and sequence ⇒ page 50
