3.3 Arrangement of the crankshaft bearing
shells
Bearing shells of the correct thickness are allocated to the cylin‐
der block at the factory. The bearing shells thickness is marked
with coloured spots.
Letter codes on lower sealing surface or end of cylinder block
indicate which bearing shell is to be fitted in cylinder block (top
bearing shell) at each location.
Letter codes on crankshaft indicate which bearing shell is to be
fitted in bearing cap (bottom bearing shell).
The first letter stands for bearing cap 1, the second letter for bear‐
ing cap 2, etc.

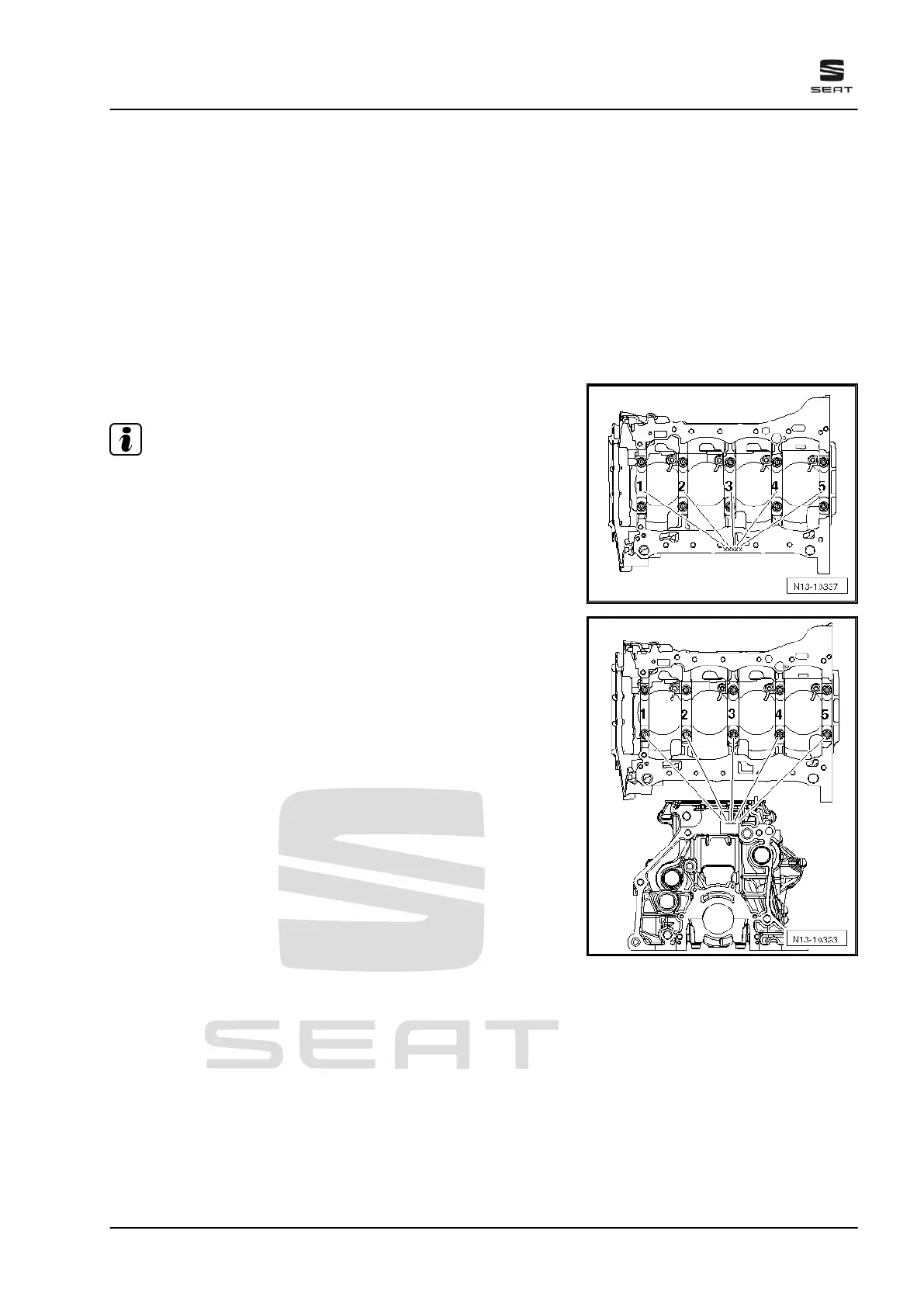

Marking of bearing shell for cylinder block:
Note
Markings on cylinder block are applied either onto sealing surface
for sump or gearbox end of cylinder block.
The identification letters on the cylinder block apply for the top
bearing shell (bearing shell for the cylinder block).
– Note down letters and refer to table for colour code to be fitted.
