4 Radiator/radiator fans
⇒ “4.1 Exploded view - radiator/radiator fans”, page 291
⇒ “4.2 Exploded view - auxiliary radiator”, page 292
⇒ “4.3 Exploded view - radiator cowl and radiator fans”,
page 295
⇒ “4.4 Removing and positioning radiator”, page 295
⇒ “4.5 Removing and installing radiator cowl”, page 300
⇒ “4.6 Removing and installing radiator fans”, page 302
⇒ “4.7 Removing and installing auxiliary radiator”, page 303

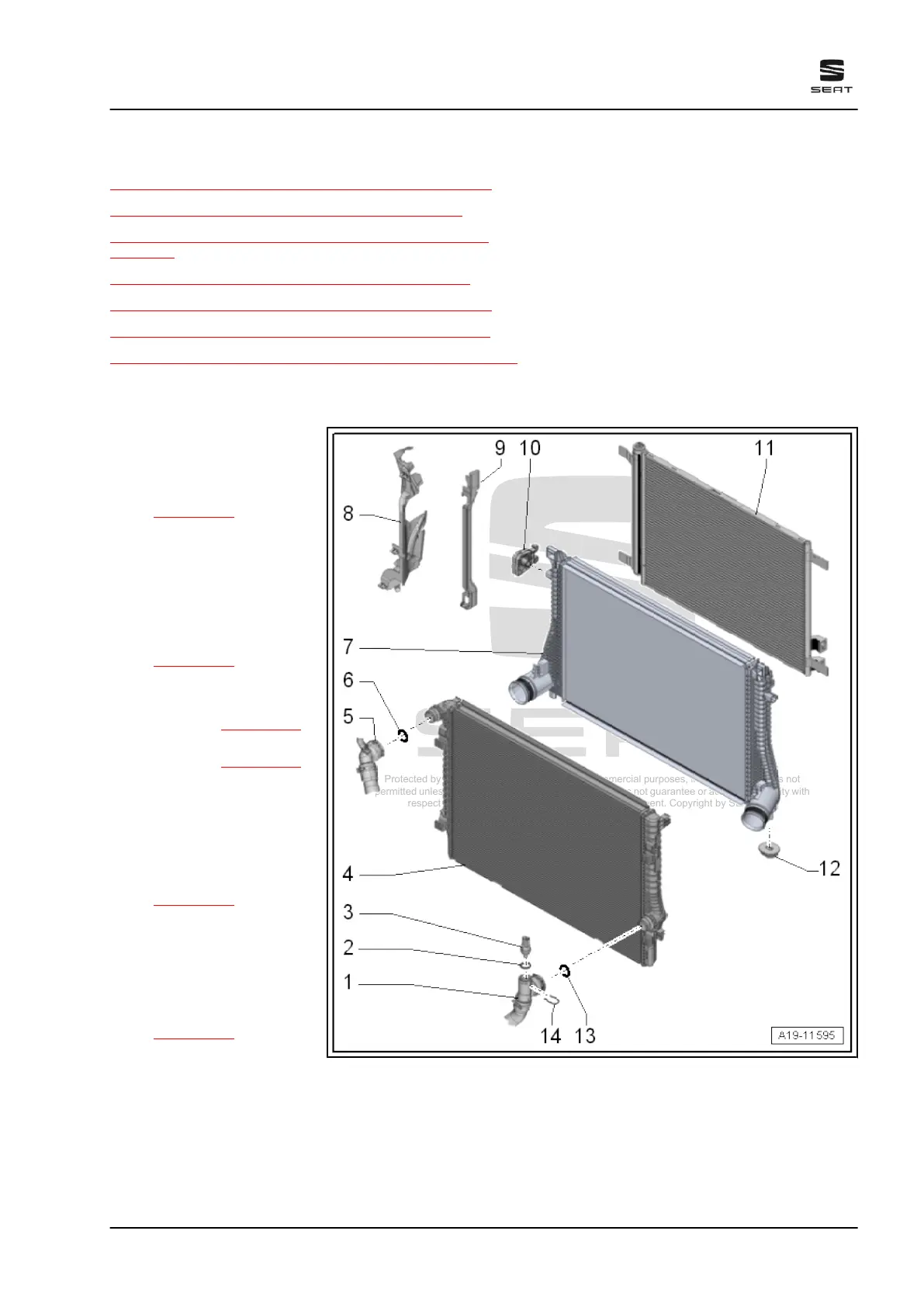

4.1 Exploded view - radiator/radiator fans
1 - Coolant hose
❑ Lift retaining clip for re‐
moval
❑ Connecting
⇒ page 292
2 - O-ring
❑ Renew
❑ Lubricate with coolant
3 - Coolant temperature send‐
er at the radiator outlet - G83-
❑ Removing and fitting
⇒ page 285
4 - Coolant radiator
❑ removing and installing,
version 1 ⇒ page 295
❑ removing and installing,
version 2 ⇒ page 297
❑ Change coolant after re‐
newing.
5 - Coolant hose
❑ Lift retaining clip for re‐
moval
❑ Connecting
⇒ page 292
6 - O-ring
❑ Renew
❑ Lubricate with coolant
7 - Intercooler system
❑ Removing and fitting
⇒ page 321
8 - air duct
9 - air duct
10 - Bonded rubber bush
❑ for radiator
11 - Condenser
❑ Removing and installing ⇒ Rep. gr. 87 ; Coolant circuit; Removing and installing condenser
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
