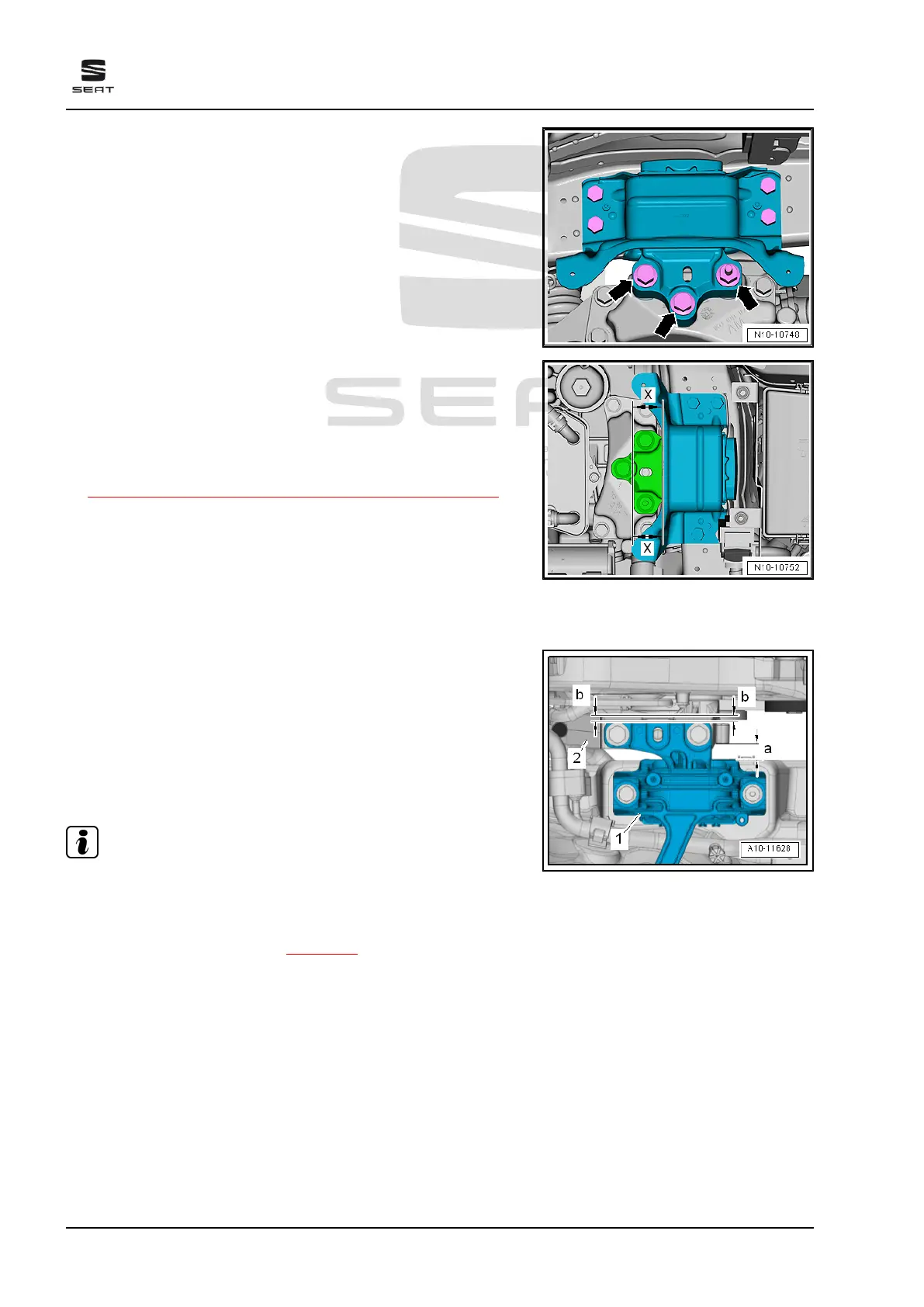

– Unscrew gearbox mounting bolts -arrows- one after the other
and renew them (if not already renewed when installing en‐
gine).
– First screw bolts in loosely.
– On gearbox side, ensure that support arm and gearbox mount‐
ing are parallel.
• Dimension -x- = dimension -x-.
– Tighten bolts for gearbox mounting.
Specified torques
♦ ⇒ “2.1 Installation overview - assembly mountings”, page 44
♦ ⇒ Electrical system; Rep. gr. 27 ; Battery; Battery - Exploded
view
2.7 Checking adjustment of assembly
mountings
Operation process
The following dimensions must be reached:
• There must be a distance of -a- = 10 mm between engine
support -2- and engine mounting -1-.
• Side surface of engine support casting should be located par‐
allel to support arm of engine mounting.
• Distance -b- = distance -b-.
Note
For example, distance -a- = 10 mm can be checked with a metal
rod of suitable size.
– If the distance measured is too large or small, the assembly
mountings must be adjusted ⇒ page 55 .
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
56 Rep. gr.10 - Removing and installing engine
