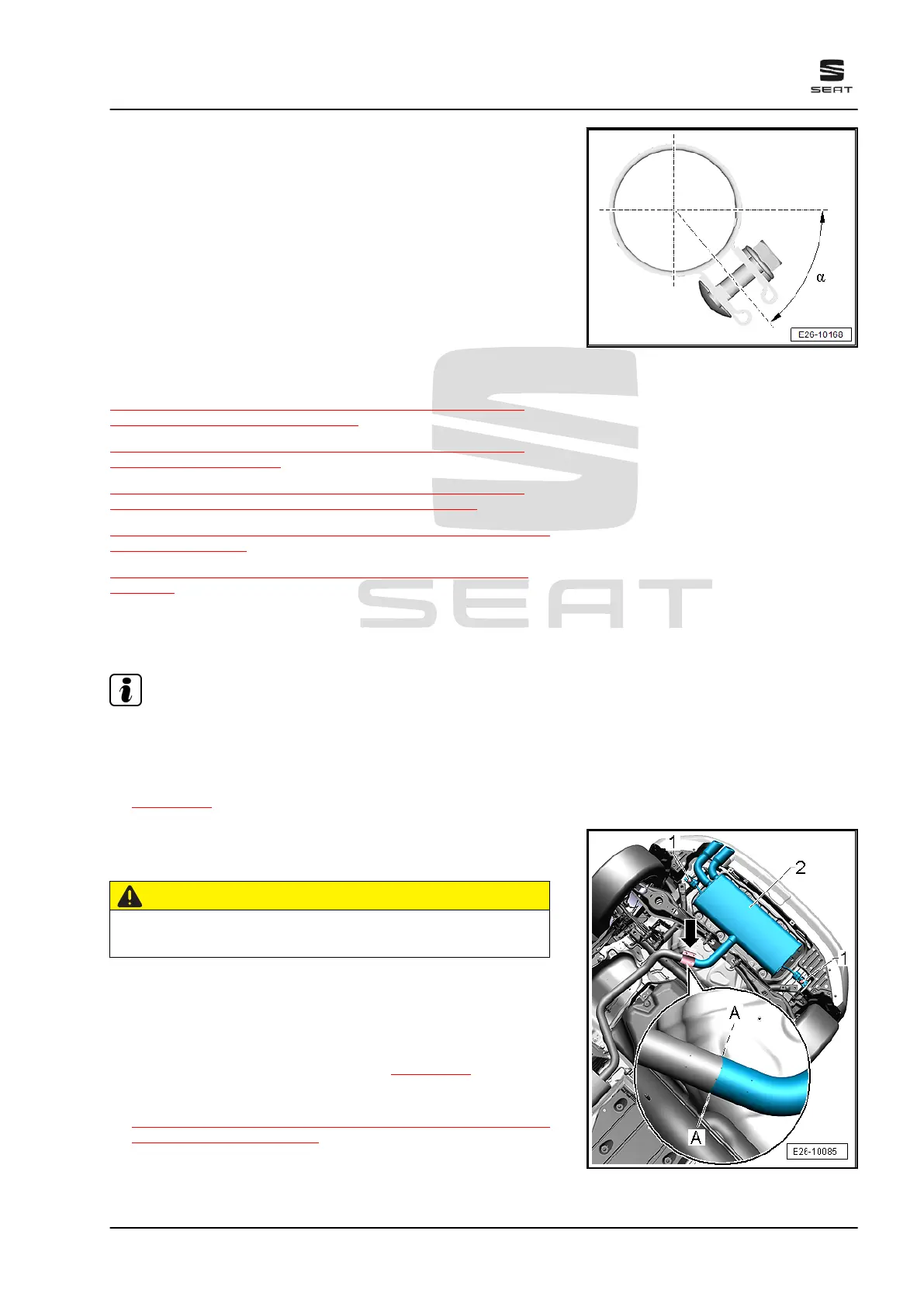

Installation position of clamp
– Fit clamp in position shown. Bolt -arrow- must not protrude
beyond lower edge of clamp.
• Angle -α- = about 50°+20º.
• Nuts upwards.
1.2 Removing and installing rear silencer
⇒ “1.2.1 Removing and installing rear silencer, engine codes
CJSA, CJSB, Leon 2013”, page 401
⇒ “1.2.2 Removing and installing rear silencer, engine codes
CJSA, CJSB ”, page 402
⇒ “1.2.3 Removing and installing rear silencer, engine codes
CJXA , CJXA, CJXE, CJXH, CJXC, CJXG”, page 402
⇒ “1.2.4 Remove and install silencer, Leon ST, Cupra ST Carbon
Fiber KIt”, page 403
⇒ “1.2.5 Removing and installing rear silencer, Ateca Cupra”,
page 404
1.2.1 Removing and installing rear silencer,
engine codes CJSA, CJSB, Leon 2013
Note
♦
In original factory equipment, this is a single piece with the rear
silencer. Can be renewed individually for repair purposes.
♦
The connecting pipe -A- can be cut through at the separating
points in order to renew the rear silencers separately
⇒ page 408 .
Removing
– Loosen clamp -arrow- and push towards rear.
CAUTION
Risk of accident caused by high weight of silencers.
– Seek help from a second a mechanic for the following work.
– Unscrew bolts -1- from the body. Remove silencer -2-.
Fitting
Install in the reverse order of removal, observing the following:
– Align exhaust system without tension ⇒ page 411 .
Specified torques
♦ ⇒ “1.1.1 Assembly overview - silencers, engine codes CJSA ,
CJSB, Leon SC”, page 391
