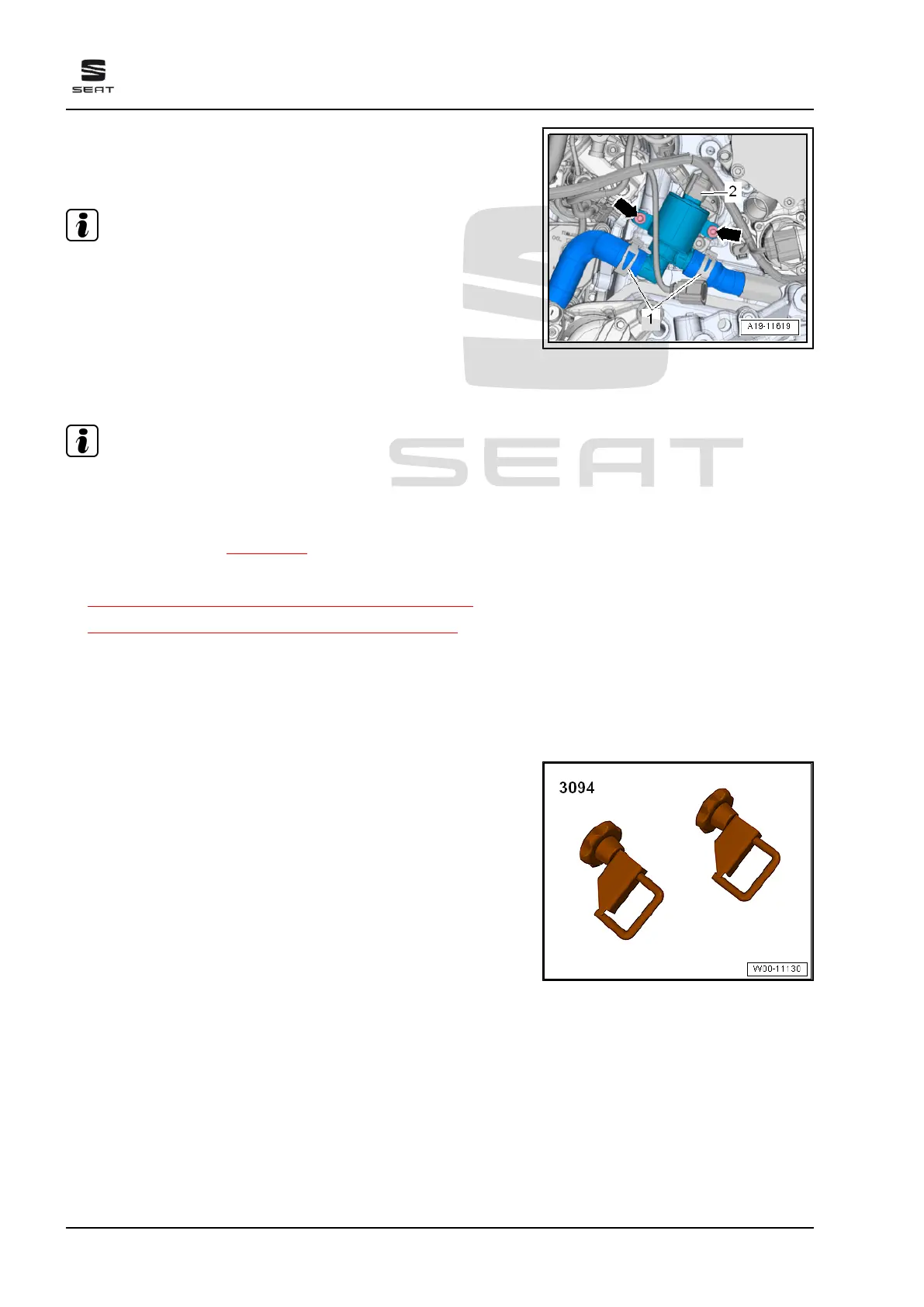

– Pull off connector -2-.
– Use hose clamps -N82- to clamp off coolant hoses on coolant
shut-off valve - 3094- .
Note
Place a cloth underneath to catch escaping coolant.
– Release hose clips -1- and disconnect coolant hoses.
– Unscrew bolt -arrows- and detach coolant shut-off valve -
N82- .
Fitting
Install in the reverse order of removal, observing the following:
Note
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue (ET‐
KA) .
– Check coolant level ⇒ page 244 .
Specified torques
♦ ⇒ “2.2 Exploded view - electric coolant pump”, page 270
♦ ⇒ “3.1 Exploded view - air cleaner housing”, page 355
2.8 Removing and installing coolant valve
for gearbox - N488- , vehicles with dual
clutch gearbox
Special tools and workshop equipment required
♦ Hose clamps to Ø 25 mm - 3094-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
280 Rep. gr.19 - Cooling
