5.2 Valves: checking
– Visually inspect for scoring on valve stems and valve seat sur‐
faces.
– Renew valve if scoring is clearly visible.

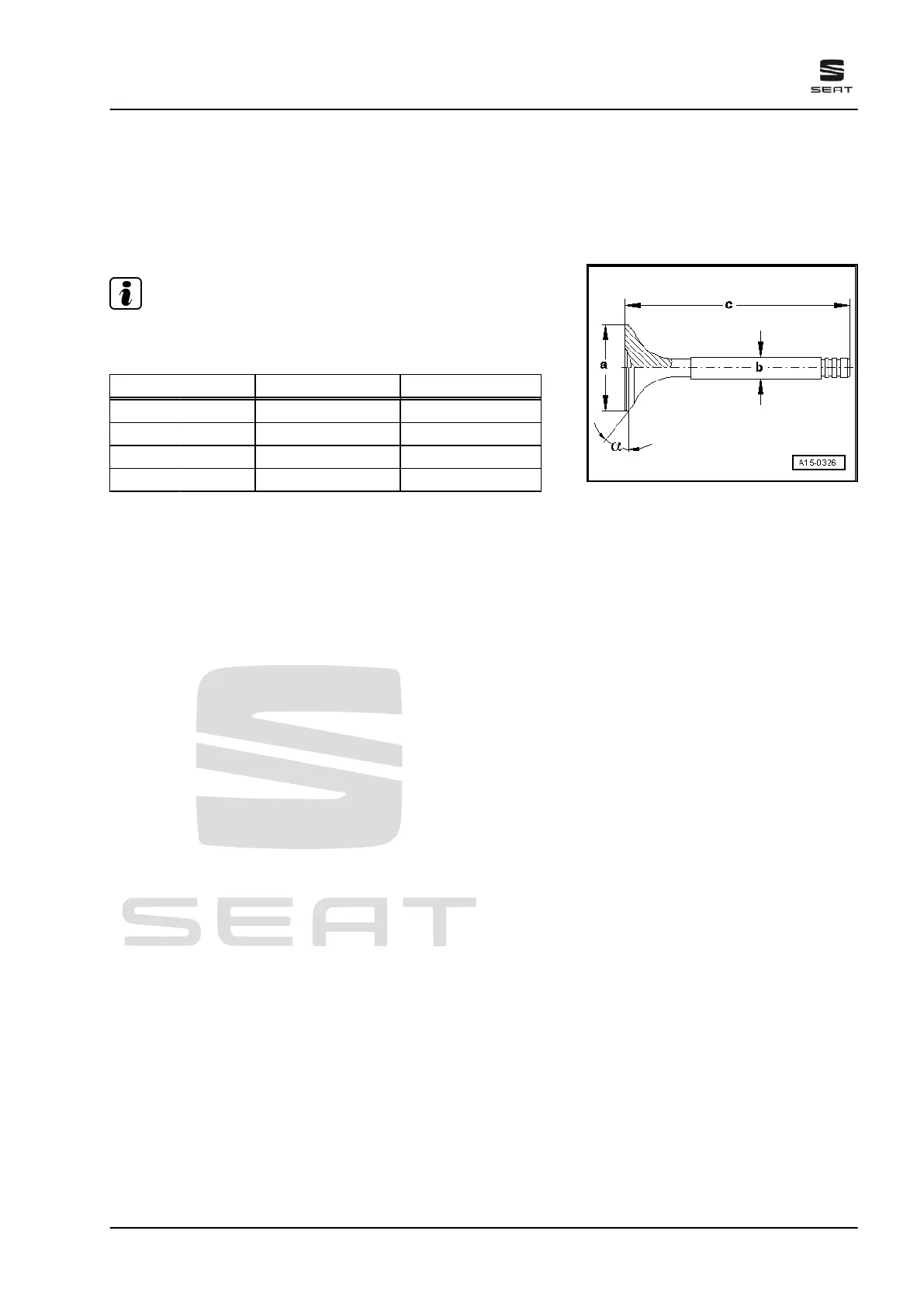

5.3 Valve dimensions
Note
Inlet and exhaust valves must not be reworked. Only grinding-in
is permitted.
Measurement Inlet valve Exhaust valve
∅ a mm 33.85 ± 0.10 28.0 ± 0.1
∅ b mm 5.98 ± 0.01 5.96 ± 0.01
c mm 104.0 ± 0.2 101.9 ± 0.2
α ∠° 45 45
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
