24 – Mixture preparation - injection
1 Injection system
⇒ “1.1 Overview of fitting locations - injection system”,
page 331

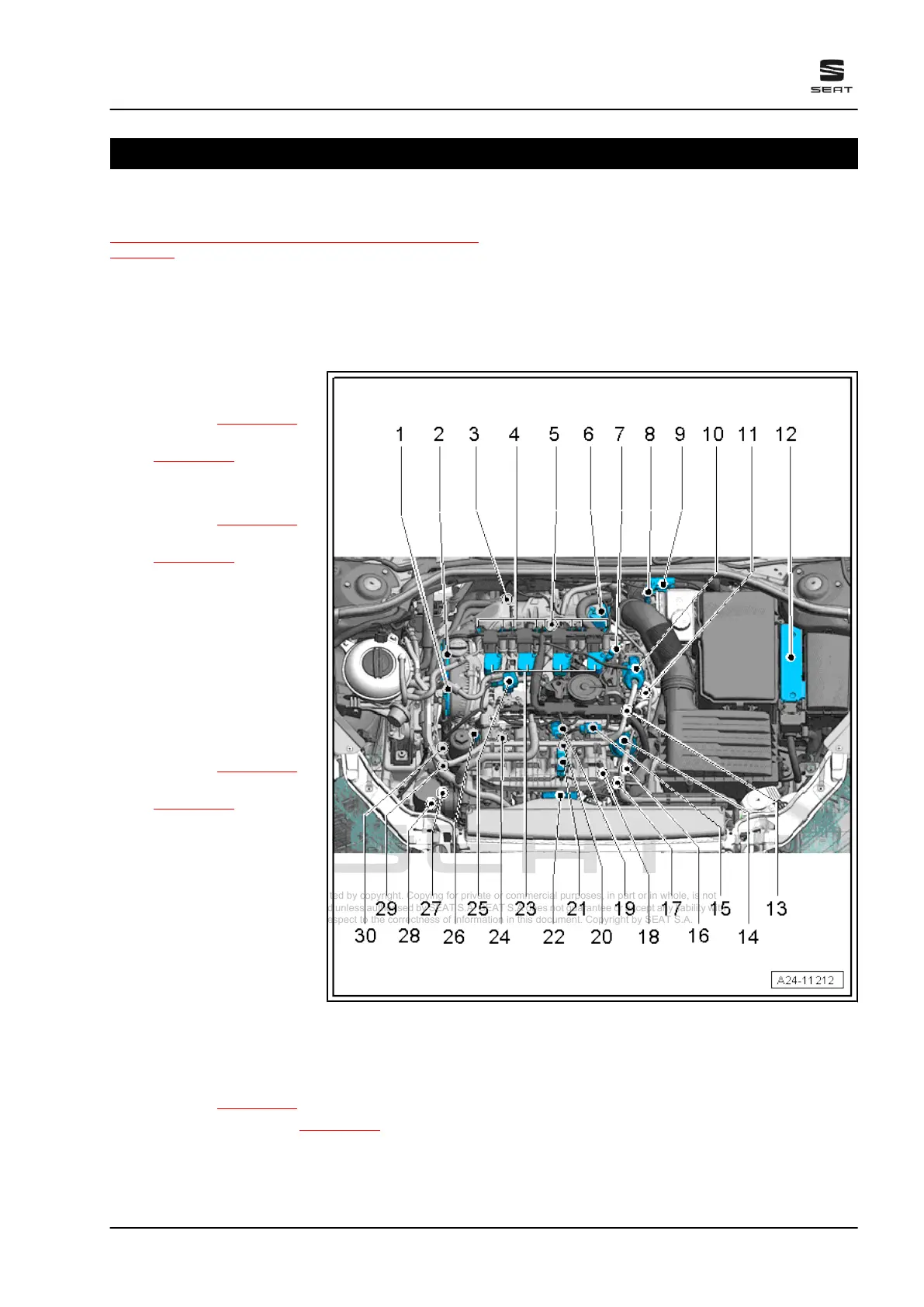

1.1 Overview of fitting locations - injection
system
Components A to H are not shown in the exploded view.
1 - Valve 1 for variable distri‐
bution - N205-
❑ Location ⇒ page 339
❑ Removing and fitting
⇒ page 186
2 - Exhaust camshaft control
valve 1 - N318-
❑ Location ⇒ page 339
❑ Removing and fitting
⇒ page 153
3 - Lambda probe 1 after cata‐
lytic converter - GX7-
❑ comprising:
Lambda probes after the
catalytic converter -
G130-
Lambda probe heater 1
after catalytic converter -
Z29-
❑ Location ⇒ page 341
❑ Removing or installing
⇒ page 389
4 - Exhaust camshaft
❑ Exhaust cam actuator B
for cylinder 1 - N581-
❑ Exhaust cam actuator A
for cylinder 1 - N580-
❑ Exhaust cam actuator A
for cylinder 2 - N588-
❑ Exhaust cam actuator B
for cylinder 2 - N589-
❑ Exhaust cam actuator B
for cylinder 3 - N597-
❑ Exhaust cam actuator A for cylinder 3 - N596-
❑ Exhaust cam actuator A for cylinder 4 - N604-
❑ Exhaust cam actuator B for cylinder 4 - N605-
❑ Location ⇒ page 336
❑ Removing and fitting ⇒ page 153
5 - Lambda sensor 1 before catalytic converter - GX10-
❑ comprising:
Lambda sensor - G39-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Injection system 331
