2 Cylinder block, gearbox end
⇒ “2.1 Exploded view - cylinder block, gearbox end”, page 73
⇒ “2.2 Removing and installing flywheel”, page 74
⇒ “2.3 Removing and installing sealing flange (gearbox end)”,
page 75

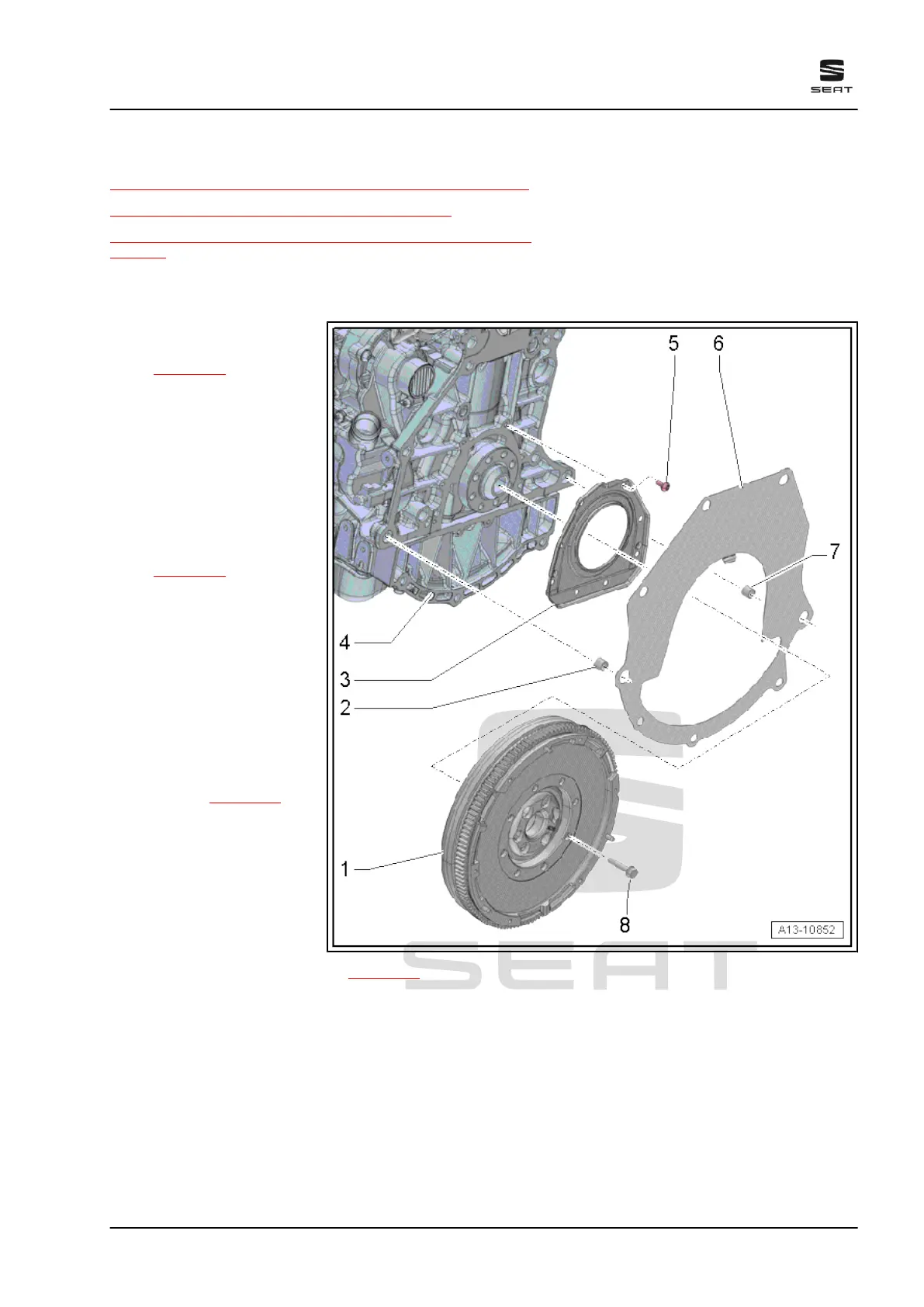

2.1 Exploded view - cylinder block, gearbox end
1 - Flywheel
❑ Removing and fitting
⇒ page 74
❑ Can only be installed in
one position (out of step
bolts)
2 - Dowel sleeve
3 - Sealing flange on gearbox
side
❑ with shaft seal
❑ Renew
❑ Removing and fitting
⇒ page 75
❑ Before installing, re‐
move oil residue from
crankshaft journal using
a clean cloth.
❑ Guide sleeve is not to be
removed until sealing
flange has been slipped
onto crankshaft journal
4 - Cylinder block
5 - Bolt
❑ Observe tightening se‐
quence ⇒ page 74
6 - Intermediate plate
❑ Version fitted in vehicle
may differ from illustra‐
tion
❑ Must sit on dowel
sleeves
❑ Do not damage or bend
when assembling.
❑ Is suspended on the gasket ⇒ page 74
7 - Dowel sleeve
8 - Bolt
❑ For dual-mass flywheel
❑ Renew
❑ 60 Nm +90°
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
2. Cylinder block, gearbox end 73
