Seat Ateca 2017 - Ignition System; Assembly Overview - Ignition System

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with
respect to the correctness of information in this document. Copyright by SEAT S.A.
28 – Ignition system
1 Ignition system
⇒ “1.1 Assembly overview - ignition system”, page 451
⇒ “1.2 Ignition coils with output stage: removing and fitting”, page
452
⇒ “1.3 Removing and installing knock sensor 1 G61 ”,
page 454
⇒ “1.4 Removing and installing Hall sender ”, page 455
⇒ “1.5 Removing and installing engine speed sensor G28 ”, page
456

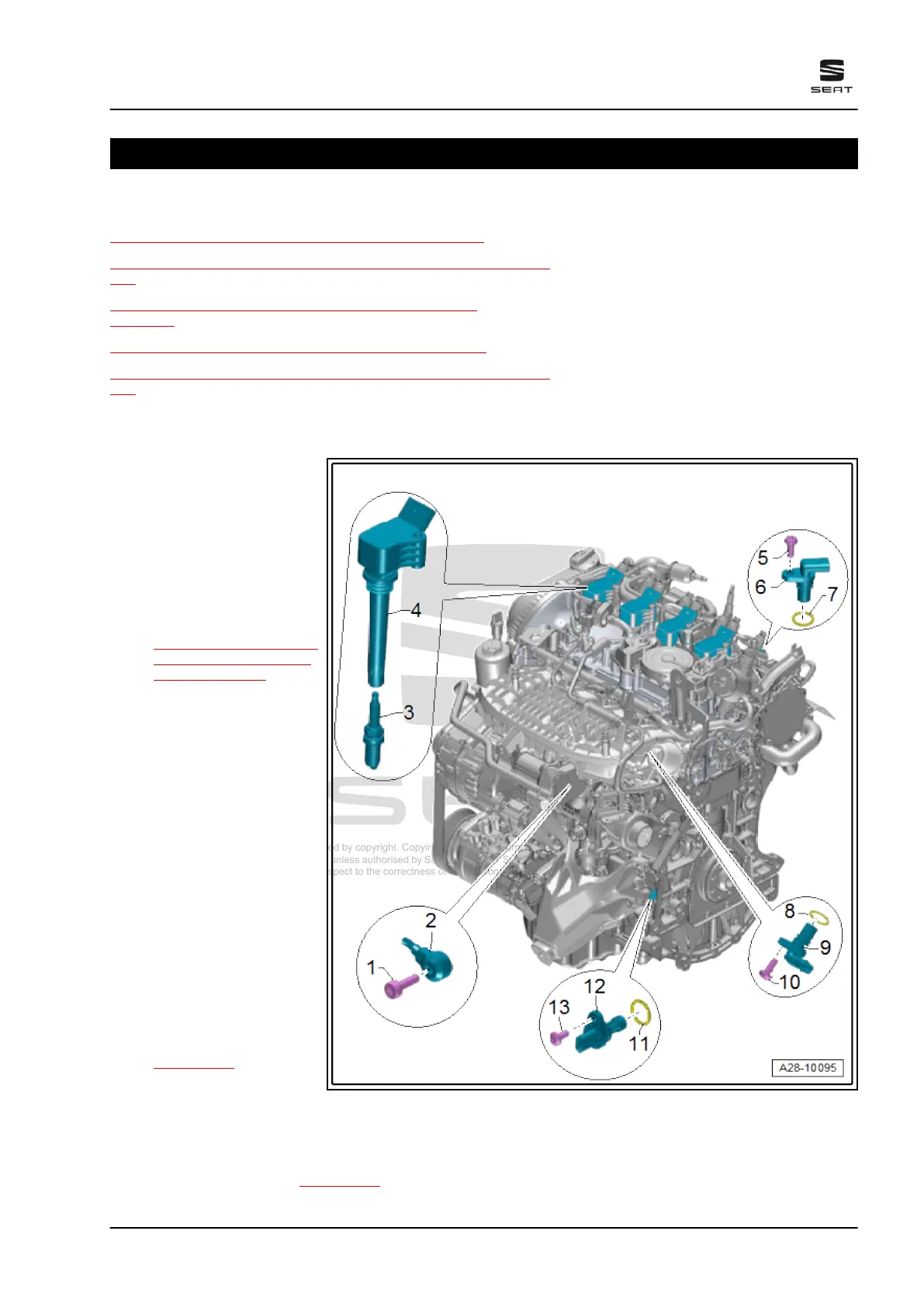

1.1 Assembly overview - ignition system
1 - Bolt
❑ Must be renewed if re‐
moved
❑ The specified torque in‐
fluences the function of
the knock sensor.
❑ 8 Nm +90°
2 - Knock sensor 1 - G61-
❑ Removing and fitting
⇒ “1.3 Removing and in‐
stalling knock sensor 1
G61 ”, page 454
3 - Spark plug
❑ Remove and install us‐
ing wrench - 3122 B- .
❑ Intervals for changing
filter ⇒ Maintenance ;
Booklet 501
❑ 30 Nm
4 - Ignition coil with output
stage:
❑ Ignition coil 1 with output
stage - N70-
❑ Ignition coil 2 with output
stage - N127-
❑ Ignition coil 3 with output
stage - N291-
❑ Ignition coil 4 with output
stage - N292-
❑ 10 Nm.
❑ Removing and fitting
⇒ page 452
5 - Bolt
❑ 9 Nm
6 - Hall sender 3 - G300-
❑ Inspect O-ring for damage before fitting
❑ Removing and fitting ⇒ page 455
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Ignition system 451
