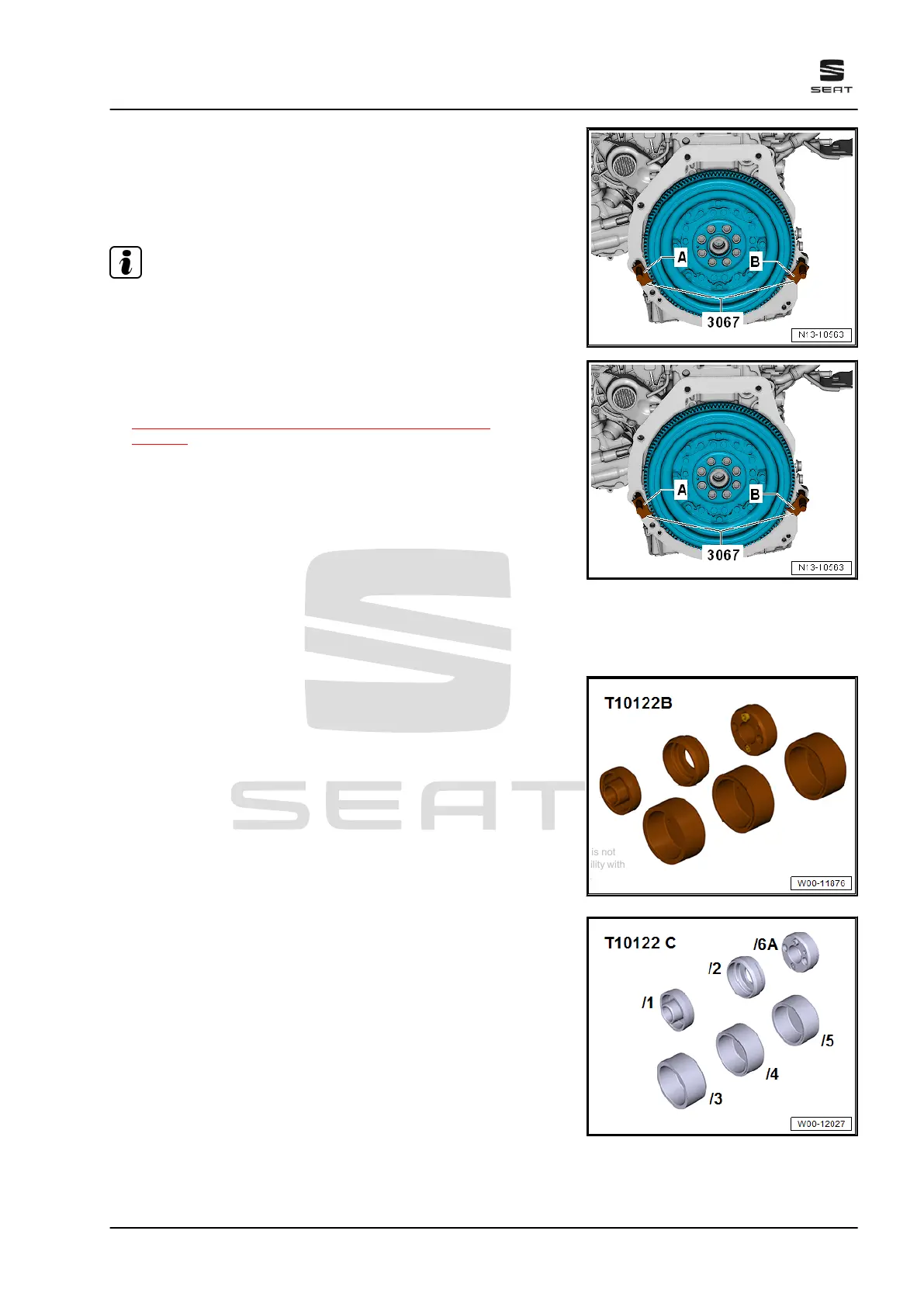

– Insert counter-hold tool - 3067- in hole -B- of cylinder block.
– Loosen and remove flywheel bolts.
Fitting
Install in the reverse order of removal, observing the following:
Note
Renew the bolts tightened with specified tightening angle.
– Insert counter-hold tool - 3067- in hole -A- of cylinder block.
Specified torques
♦ ⇒ “2.1 Exploded view - cylinder block, gearbox end”,
page 73
2.3 Removing and installing sealing flange
(gearbox end)
Special tools and workshop equipment required
♦ Guide piece - T10122/6- or -T10122/6A- from fitting tools -
T10122B- or -T10122C-
♦ Assembly aid - T10122/1- from fitting tools - T10122B- or -
T10122C-
♦ Hand drill with plastic brush attachment
♦ Protective glasses
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
2. Cylinder block, gearbox end 75
