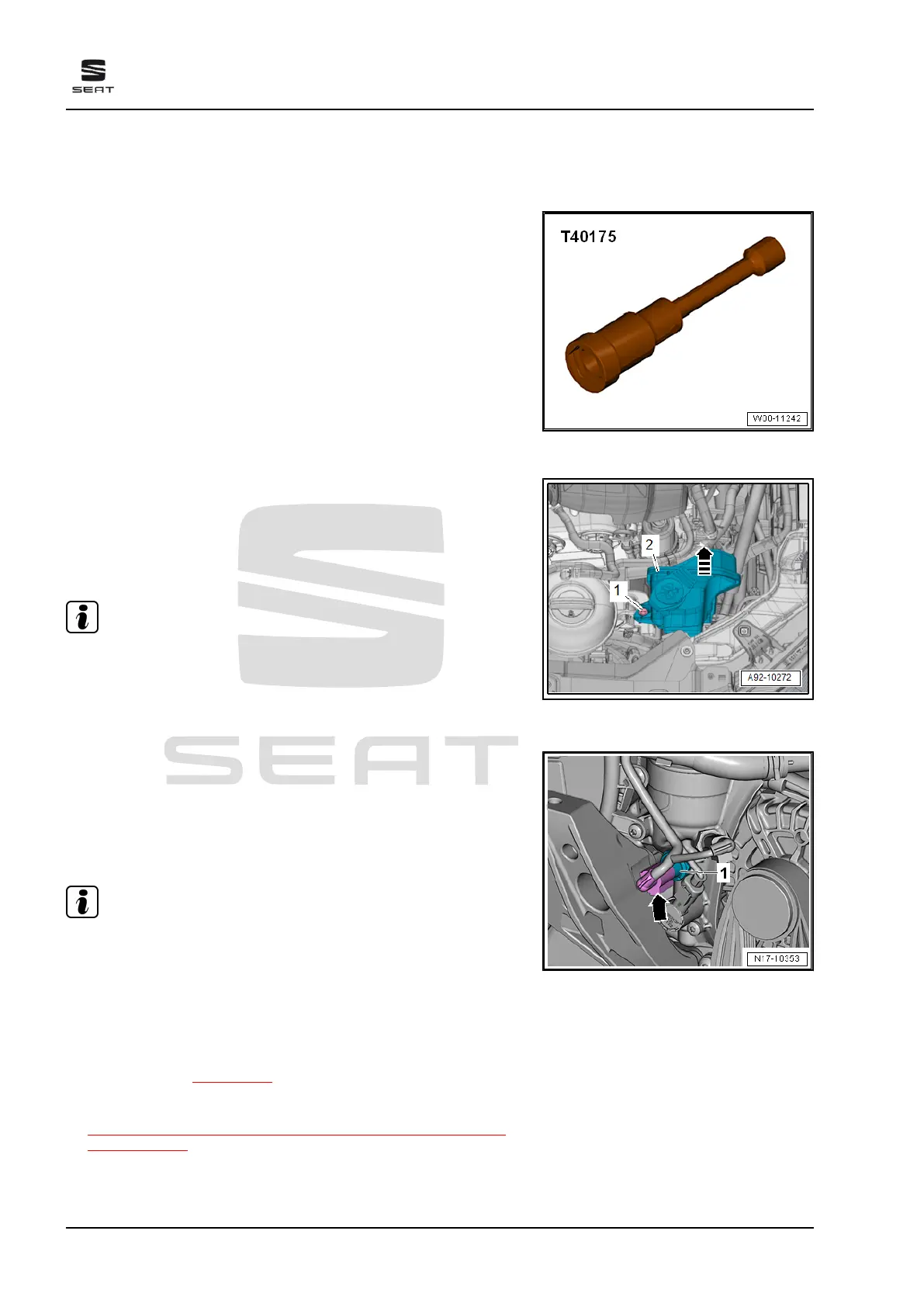

4.4 Removing and installing oil pressure
switch - F1-
Special tools and workshop equipment required
♦ 24 mm jointed spanner - T40175-
Removing
Vehicles with windscreen washer tank, right side:
– Remove windscreen washer tank filler -2- ⇒ Electrical system;
Rep. gr. 92 ; Windscreen washer system; Removing and in‐
stalling tank for windscreen washer system .
Continued for all vehicles
Note
♦
Place a cloth underneath bracket for ancillaries to catch any
escaping engine oil.
♦
Renew the seal each time the oil pressure switch has been
loosened.
– Detach electrical connector -arrow- from oil pressure switch -
F1- .
– Remove oil pressure switch -1-.
Fitting
Installation is carried out in the reverse order; note the following:
Note
♦
Renew seal.
♦
Screw oil pressure switch - F1- immediately into bore to avoid
loss of oil.
– Install the windscreen washer tank filler ⇒ Electrical system;
Rep. gr. 92 ; Windscreen washer system; Removing and in‐
stalling windscreen washer tank .
– Check oil level ⇒ page 203 .
Specified torques
♦ ⇒ “4.2 Exploded view - oil pressure switches/oil pressure con‐
trol”, page 222
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
224 Rep. gr.17 - Lubrication
