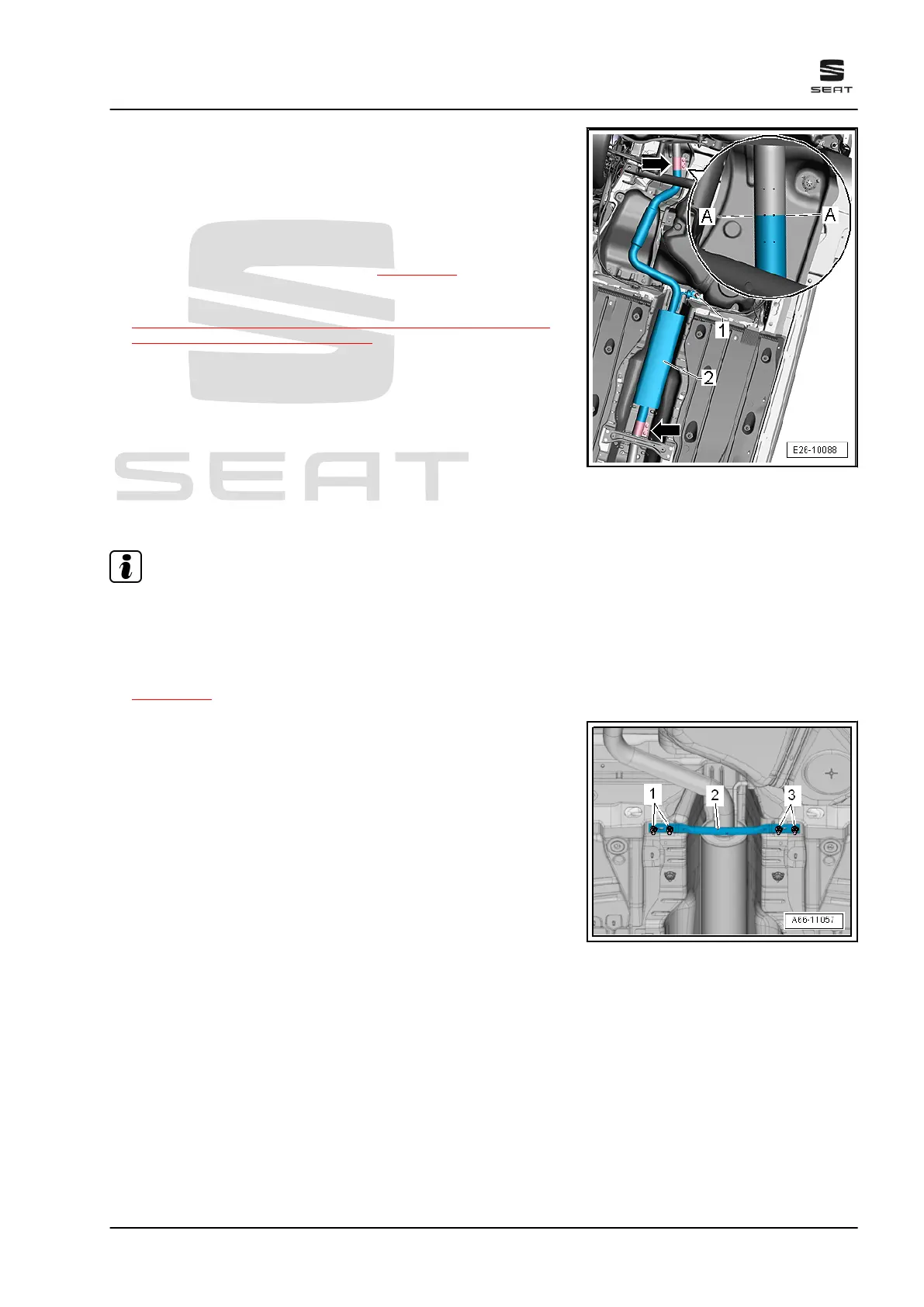

– Unscrew bolt -1- from the body.
– Unfasten clamps -arrows-.
– Remove silencer -2-.
Fitting
Install in the reverse order of removal, observing the following:
– Align exhaust system free of stress ⇒ page 411 .
Specified torques
♦ ⇒ “1.1.2 Assembly overview - silencers, engine codes CJSA ,
CJSB, Leon SC, 5-door”, page 393
1.4.3 Removing and installing front silencer,
engine codes CJXA, CJXE
Note
♦
In the original factory equipment, this is a single piece with the
centre silencer. Can be renewed individually for repair purpo‐
ses.
♦
The connecting pipe -A- can be cut through at the separating
points in order to renew the rear silencers separately
⇒ page 408 .
Removing
– Remove the rear tunnel bridge -2-.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
