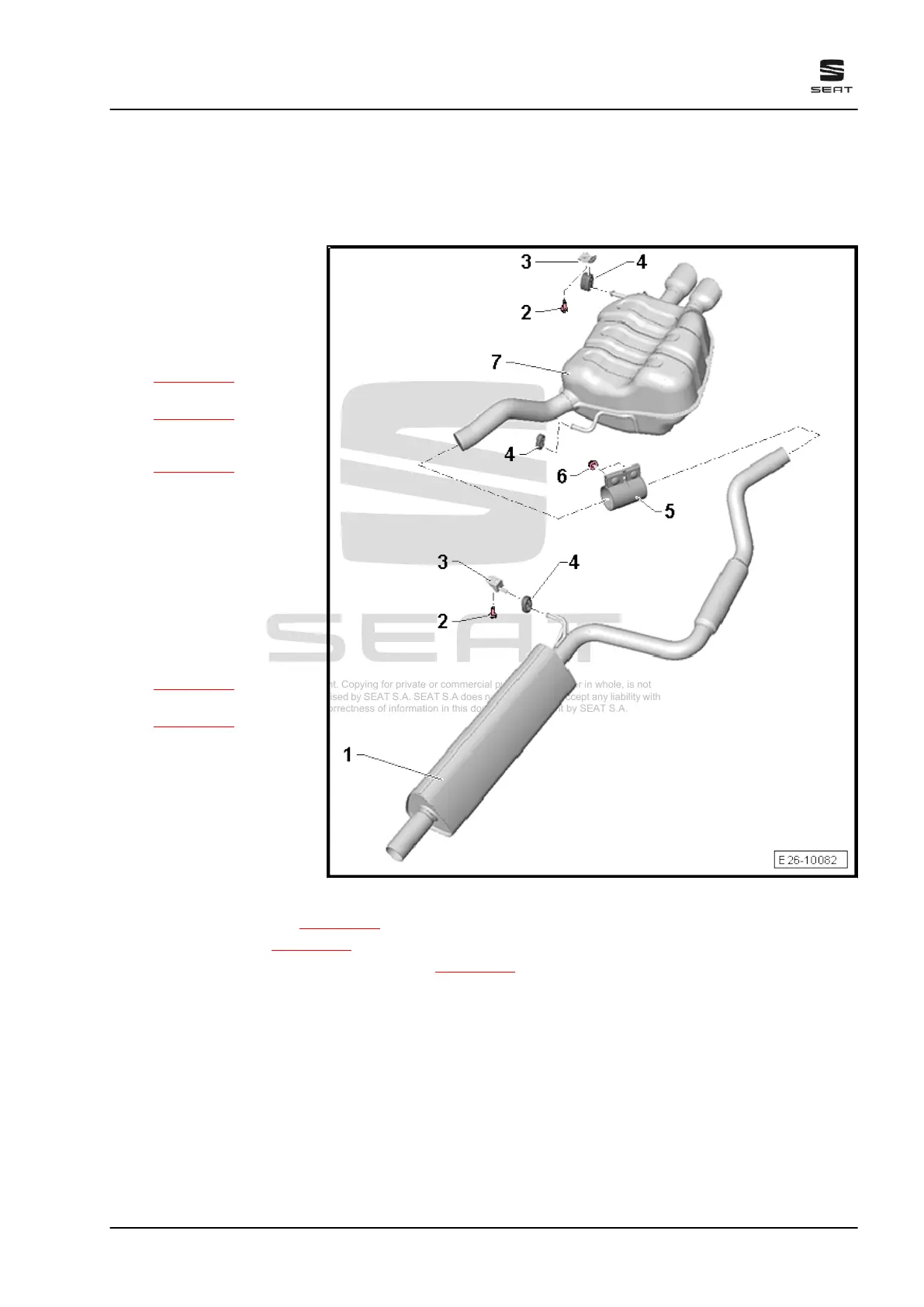

1.1.2 Assembly overview - silencers, engine
codes CJSA , CJSB, Leon SC, 5-door
Original equipment as single assembly together with rear silenc‐
er; to be renewed individually in event of repair
1 - Front silencer
❑ Combined in one unit
with rear silencer as
original equipment. Can
be renewed individually
for repair purposes.
❑ Removing and fitting
⇒ page 406
❑ Separating point
⇒ page 408
❑ Stress-free alignment of
exhaust system
⇒ page 411
2 - Bolt
❑ 20 Nm
3 - Support plate
4 - Retaining rings
❑ Renew if damaged.
5 - Clamps (rear)
❑ Before tightening, align
exhaust system so it is
free of stress
⇒ page 411
❑ Installation position
⇒ page 394 .
❑ Tighten bolted connec‐
tions evenly
6 - Nut
❑ 30 Nm
7 - Rear silencer
❑ In the original factory
equipment, this is a sin‐
gle piece with the centre
silencer. Can be renewed individually for repair purposes.
❑ Removing and fitting ⇒ page 402
❑ Separating point ⇒ page 408
❑ Stress-free alignment of exhaust system ⇒ page 411
