❑ Tighten bolted connections evenly
9 - Bracket

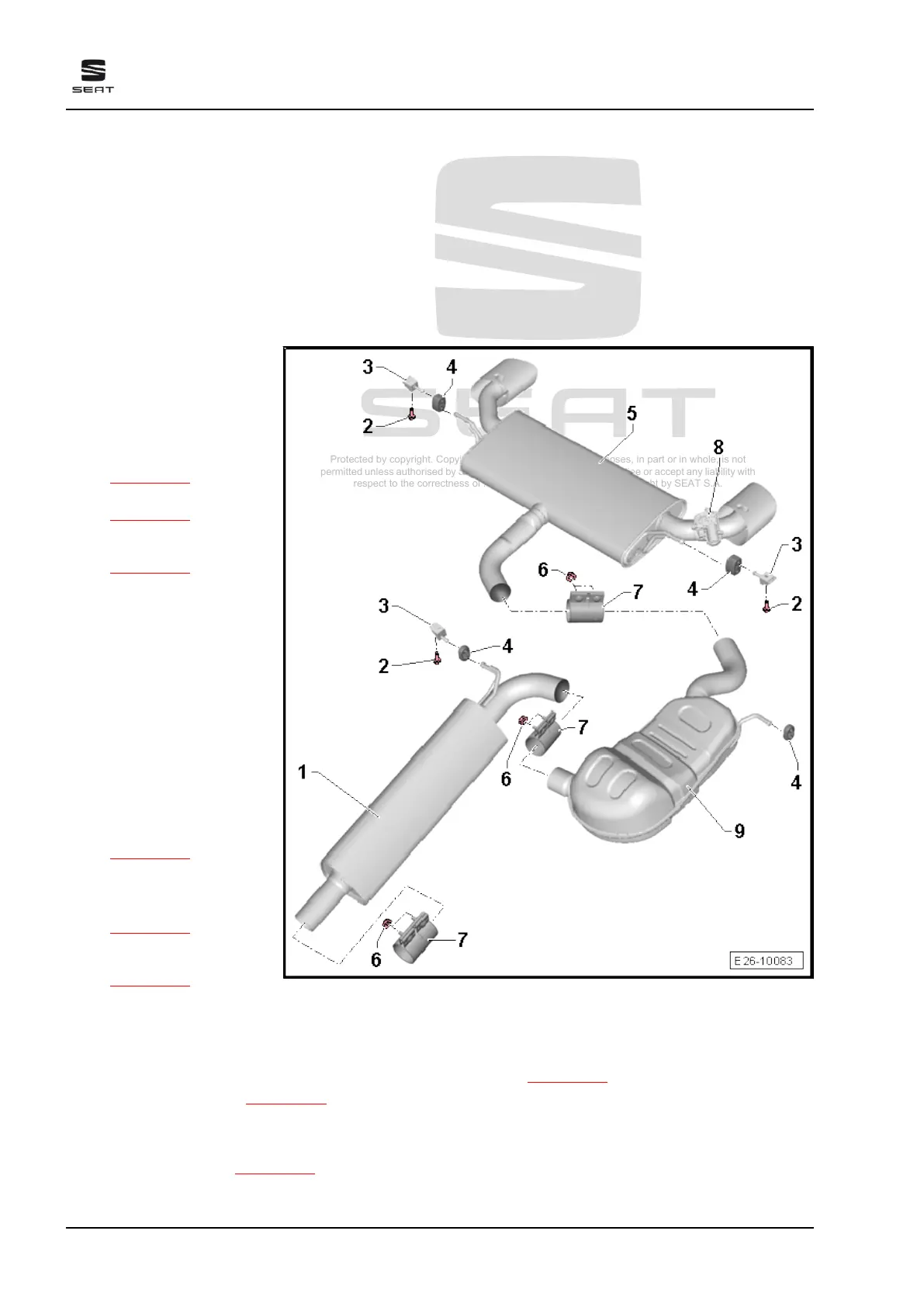

1.1.5 Assembly overview - silencers, engine
codes CJXA, CJXE, CJXH, Leon SC, 5-
door
Original equipment as single assembly together with rear silenc‐
er; to be renewed individually in event of repair
1 - Front silencer
❑ Combined in one unit
with rear silencer as
original equipment. Can
be renewed individually
for repair purposes.
❑ Removing and fitting
⇒ page 407
❑ Separating point
⇒ page 408
❑ Stress-free alignment of
exhaust system
⇒ page 411
2 - Bolt
❑ 20 Nm
3 - Support plate
4 - Retaining rings
❑ Renew if damaged.
5 - Rear silencer
❑ In the original factory
equipment, this is a sin‐
gle piece with the centre
silencer. Can be re‐
newed individually for
repair purposes.
❑ Removing and fitting
⇒ page 402
❑ With exhaust flap con‐
trol unit - J883-
❑ Separating point
⇒ page 408
❑ Stress-free alignment of
exhaust system
⇒ page 411
6 - Nut
❑ 30 Nm
7 - Clamps (rear)
❑ Before tightening, align exhaust system so it is free of stress ⇒ page 411
❑ Installation position ⇒ page 397 .
❑ Tighten bolted connections evenly
8 - Exhaust flap control unit - J883-
❑ Tightening torque ⇒ page 397
