9 - Middle silencer
❑ Combined in one unit with rear silencer as original equipment. Can be renewed individually for repair
purposes.
❑ Removing and fitting ⇒ page 404
❑ Separating point ⇒ page 408
❑ Stress-free alignment of exhaust system ⇒ page 411

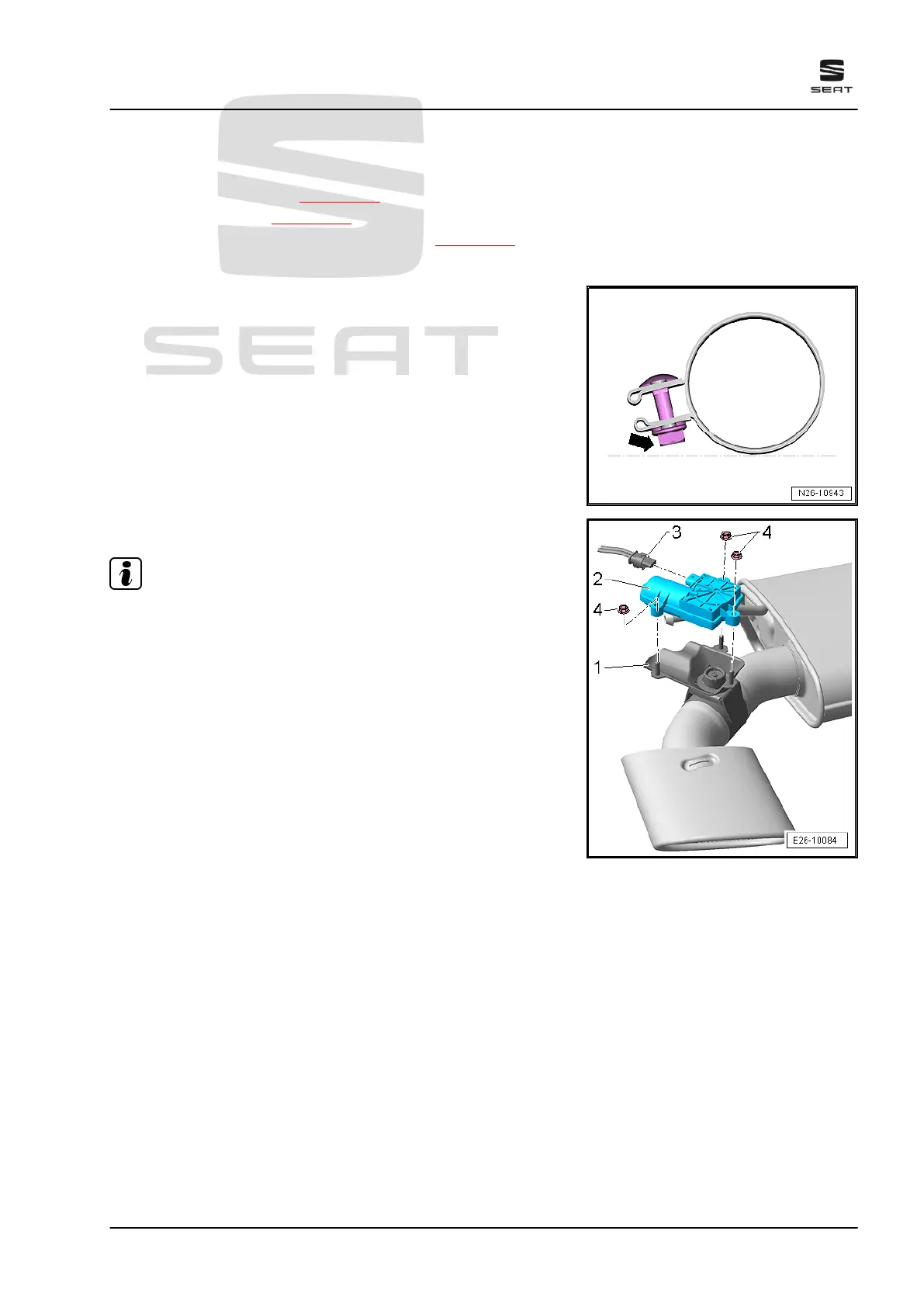

Installation position of rear clamp
– Fit clamp in position shown.
• Bolt connections face to left
• Bolt -arrow- must not protrude beyond lower edge of clamp.
Exhaust flap control unit - J883- - tightening torque
Note
Renew nuts.
– Tighten bolts -4- to 3 Nm.
1.1.6 Assembly overview - silencer, engine
codes CJXA, CJXE, CJXH, Leon ST
Original equipment as single assembly together with rear silenc‐
er; to be renewed individually in event of repair
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Exhaust pipes/silencers 397
