9 - Rear silencer (left-side)
❑ Disconnecting exhaust pipes/silencers ⇒ page 408
❑ Stress-free alignment of exhaust system ⇒ page 411

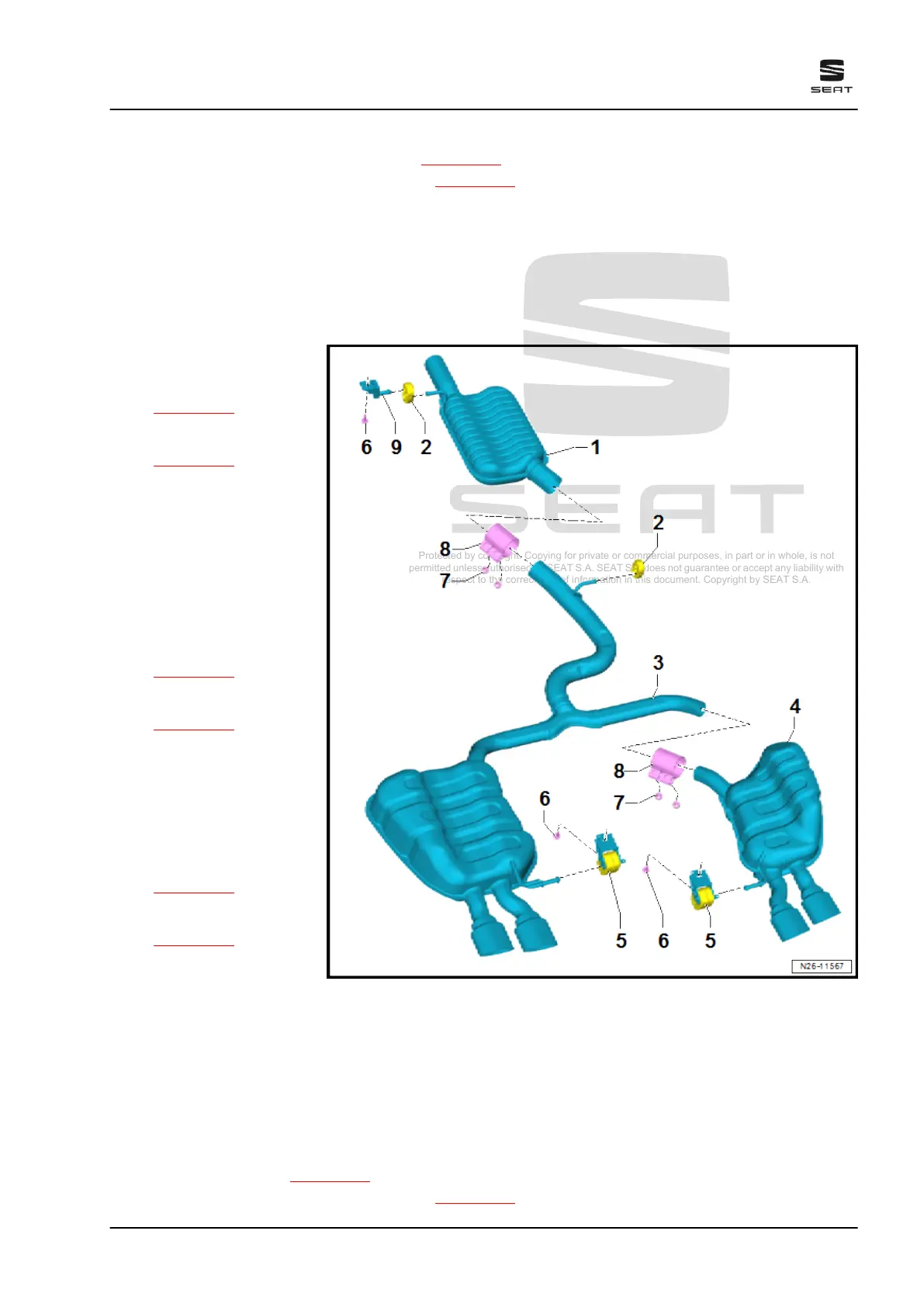

1.1.4 Assembly overview - silencer, Cupra ST
Carbon Fiber Kit
Original equipment as single assembly together with rear silenc‐
er; to be renewed individually in event of repair
1 - Middle silencer
❑ Separating exhaust
pipes from silencers
⇒ page 411
❑ Aligning exhaust sys‐
tem free of tension
⇒ page 411 .
2 - Retaining rings
❑ Renew if damaged
3 - Rear silencer
❑ Original equipment as
single assembly togeth‐
er with rear silencer; to
be renewed individually
in event of repair
❑ Disconnecting exhaust
pipes/silencers
⇒ page 408
❑ Stress-free alignment of
exhaust system
⇒ page 411
4 - Rear silencer
❑ Original equipment as
single assembly togeth‐
er with rear silencer; to
be renewed individually
in event of repair
❑ Separating exhaust
pipes from silencers
⇒ page 410
❑ Aligning exhaust sys‐
tem free of tension
⇒ page 411 .
5 - Support plate
❑ Renew if damaged.
❑ 2x
6 - Bolts
❑ 3x
❑ 20 Nm.
7 - Nuts
❑ 30 Nm.
8 - Clamping sleeve
❑ Installation position ⇒ page 397 .
❑ Stress-free alignment of exhaust system ⇒ page 411
