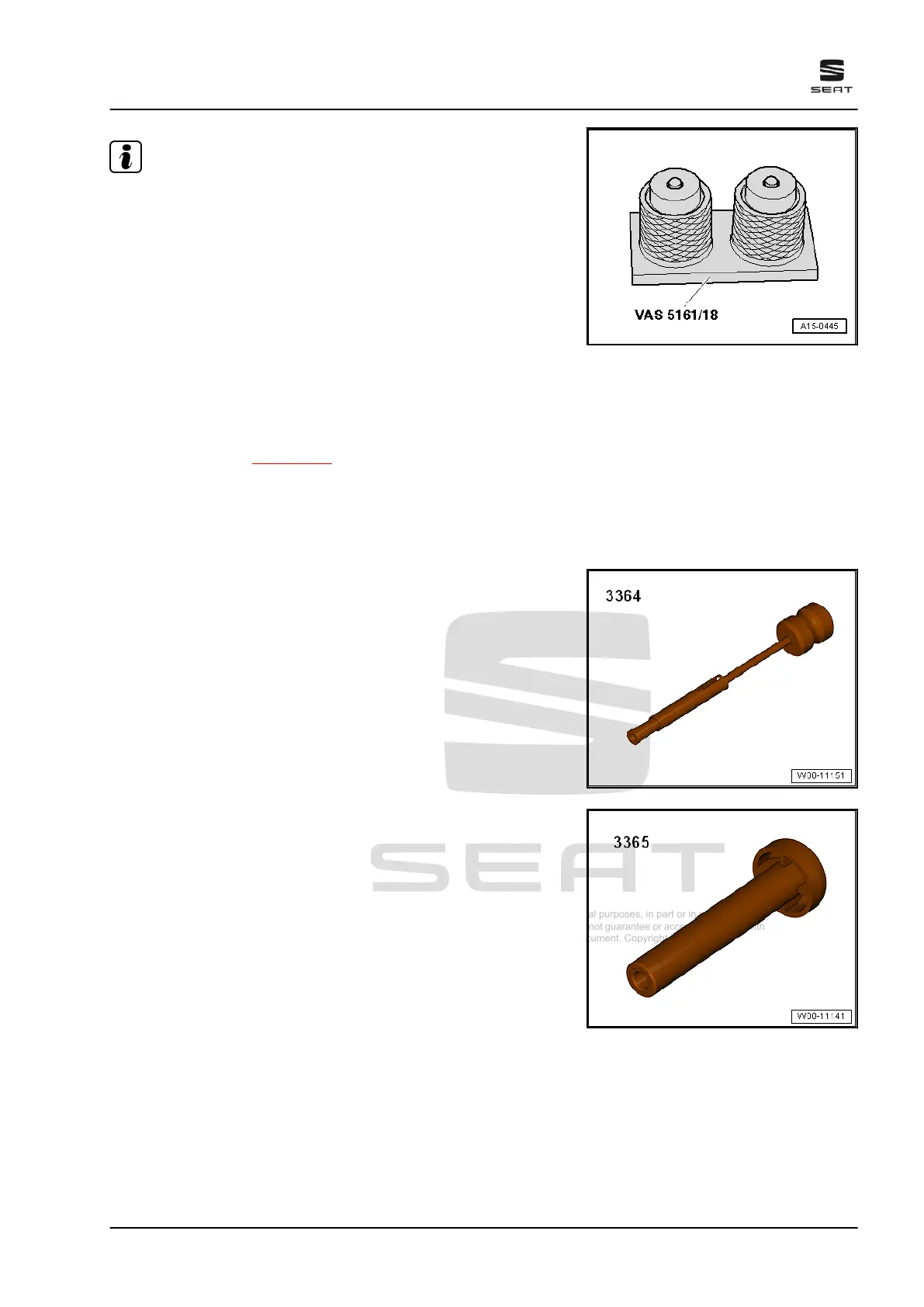

Note
♦
If the valve cones were extracted from the assembly cartridge,
they must be placed on the base - VAS 5161/18- .
♦
Press assembly cartridge -VAS 5161/8- onto insertion device
from above and pick up valve cotters.
– Use pressure fork - VAS 5161/8- to press down assembly car‐
tridge - VAS 5161/2- , then turn knurled screw of assembly
cartridge back and forth while pulling upwards.
– Release pressure fork - VAS 5161/2- with knurled screw in
pulled position.
– Detach removal and installation device - VAS 5161- .
The remaining installation steps are carried out in the reverse se‐
quence. Note the following points:
– Install camshafts ⇒ page 158 .
4.7.2 Removing and installing valve stem oil
seals (cylinder head removed)
Special tools and workshop equipment required
♦ Valve stem seal puller - 3364-
♦ Valve stem seal fitting tool - 3365-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
4. Valve gear 193
