♦ Assembly tool - T10352/1-
♦ Assembly tool - T10352/2-
♦ Assembly tool - T10352/3-
♦ Assembly tool - T10352/4-
Removing
– Remove the upper cover of the distribution chain
⇒ page 121 .
Note
The timing valves have a left-hand thread.

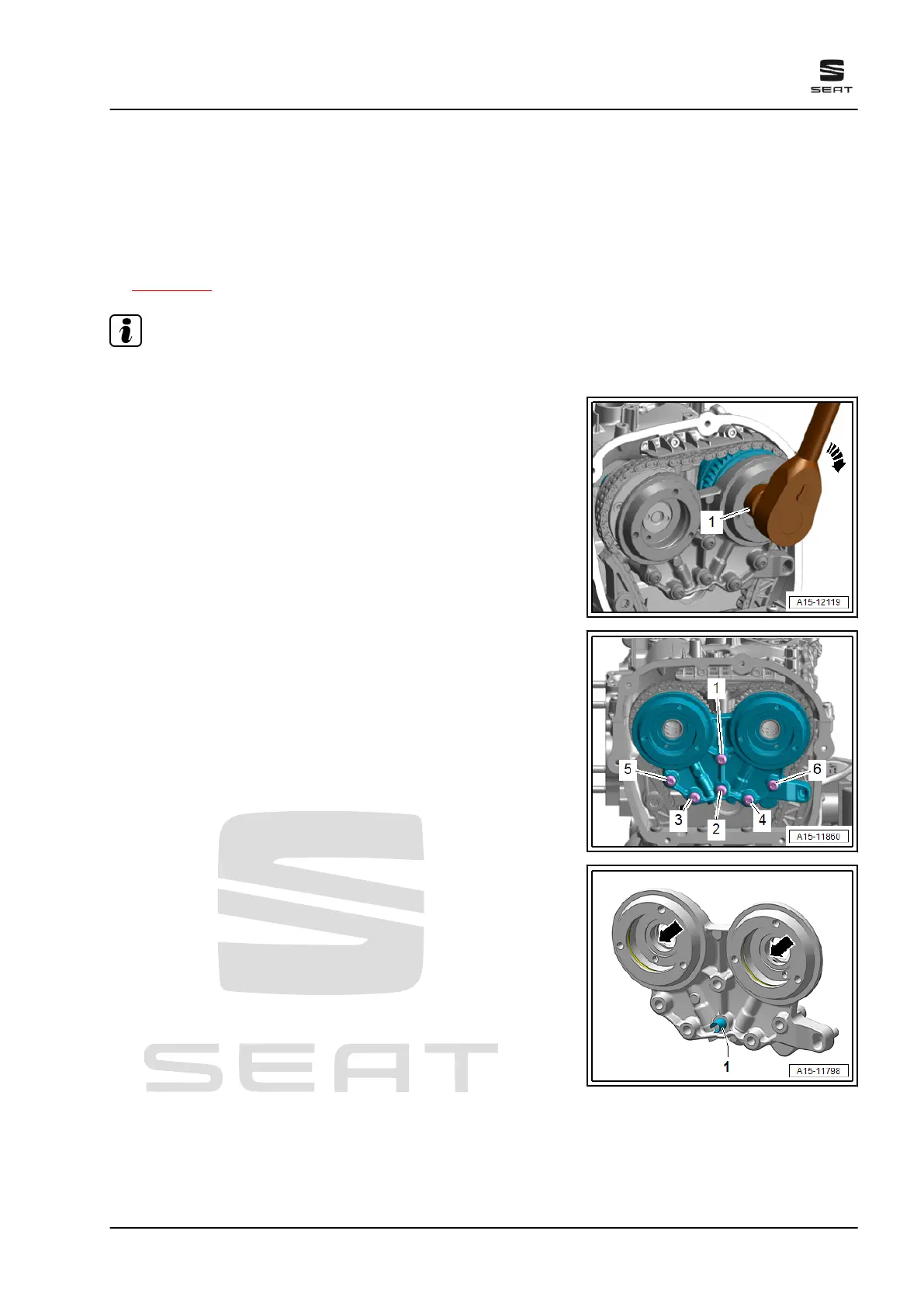

– Turn assembly tool -1- in -direction of arrow- to remove timing
valve on left and right.
Depending on the current model version of the timing valve, one
of the tools shown must be used:
♦ Installation tool - T10352-
♦ Installation tool - T10352/1-
♦ Installation tool - T10352/2-
♦ Installation tool - T10352/3-
♦ Installation tool - T10352/4-
– Unscrew bolts -1 … 6- and bearing saddle without canting it,
carefully pull out.
• Carefully pull off bearing saddle; do not tilt it.
– Remove bearing saddle.
Installing
– Lubricate holes -arrows- with engine oil.
– Check that roll pin -1- is fitted.
• Carefully attach bearing saddle; do not tilt it. Risk of damaging
it.
