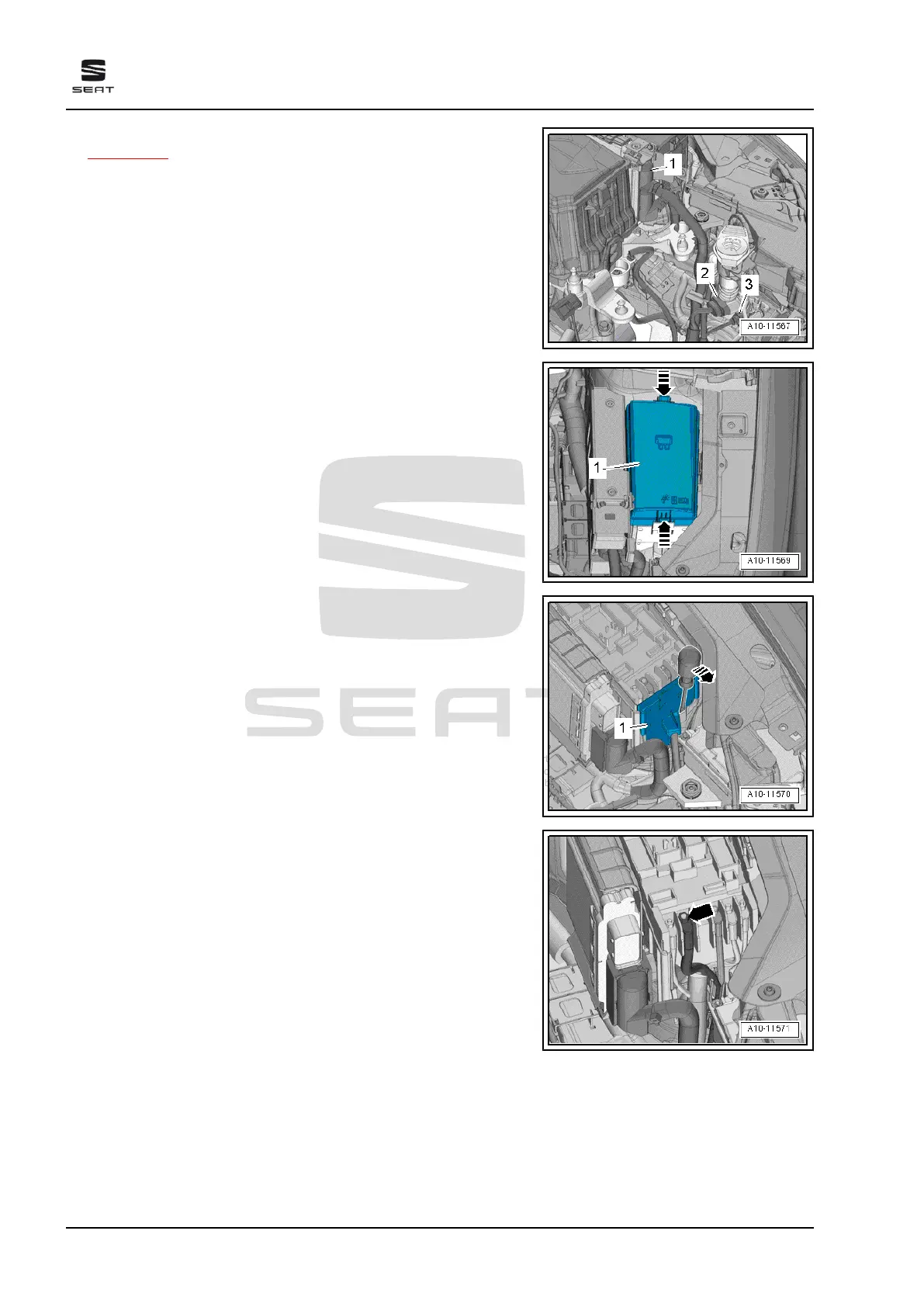

– Separate connector -1- on engine control unit - J623-
⇒ page 376 .
– Remove connectors -2, 3- from retainer and disconnect them.
– Move clear electrical wiring.
– Release catches -arrows- and detach cover -1- for electronics
box in engine compartment.
– Release catch using a screwdriver -arrow- and detach cover
-1- for electronics box in engine compartment upwards.
– Remove nut -arrow-, detach electrical wiring and move clear.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
18 Rep. gr.10 - Removing and installing engine
