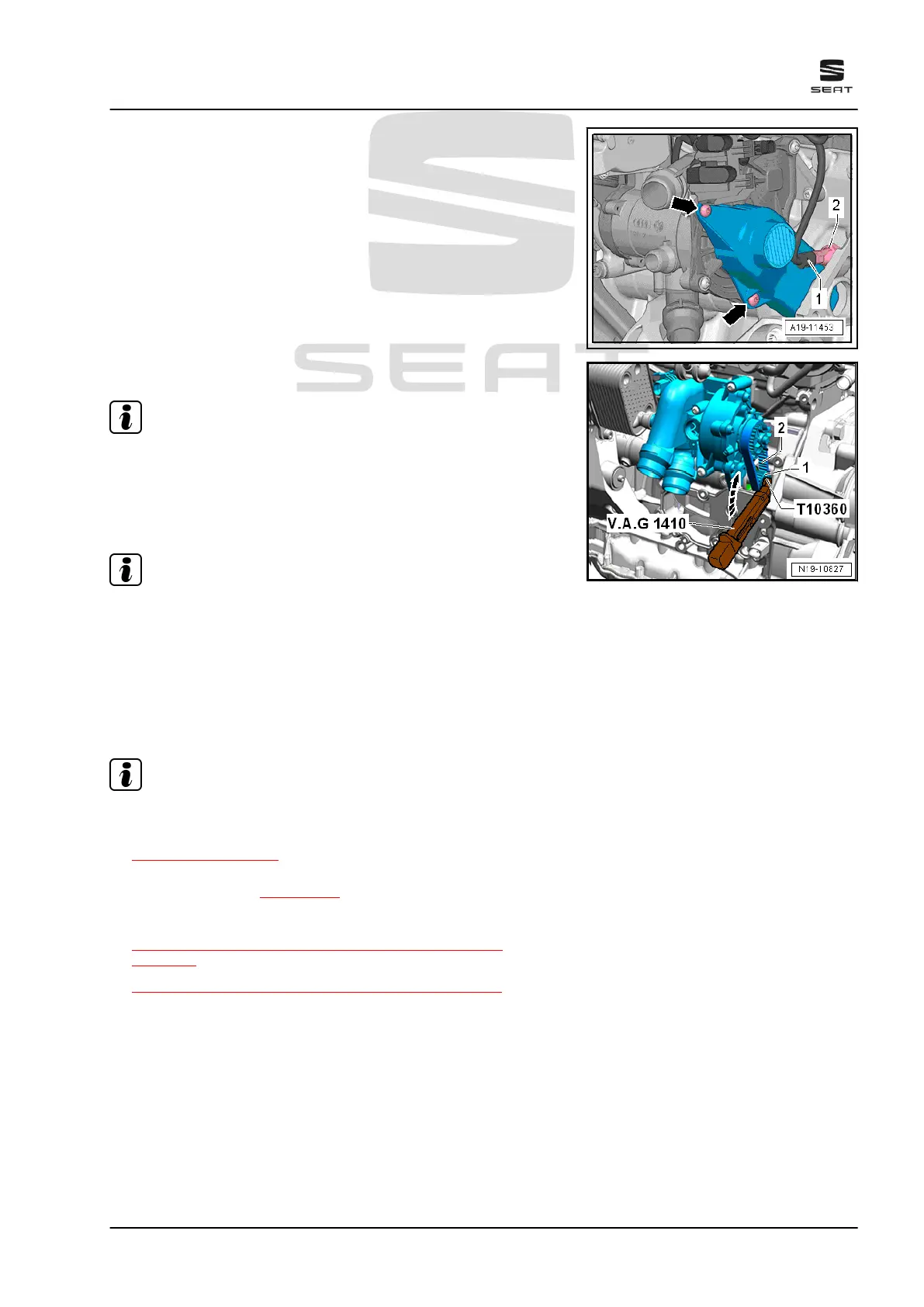

– Unplug electrical connector -1- on stage 3 oil pressure switch
- F447- -item 2-.
– Remove bolts -arrows- and detach toothed belt cover.
Note
The drive sprocket bolt has a left-hand thread.
– Use torque wrench - V.A.G 1410- and insert tool - T10360- to
loosen bolt on coolant pump drive sprocket -1- and unscrew
three turns (counterhold at vibration damper).
Note
If for vehicles with manual gearboxes, the tool cannot be placed
on due to a fastening screw of the starter, unscrew screw approx.
15 mm.
– Remove toothed belt -2-.
Fitting
Installation is carried out in the reverse order; note the following:
Note
♦
Replace the drive sprocket bolt.
♦
Note installation position of toothed belt sprocket
⇒ Item 12 (page 269) .
– Replenish coolant ⇒ page 240 .
Specified torques
♦ ⇒ “2.1 Exploded view - coolant pump and thermostat”,
page 268
♦ ⇒ “3.1 Exploded view - air cleaner housing”, page 355
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
