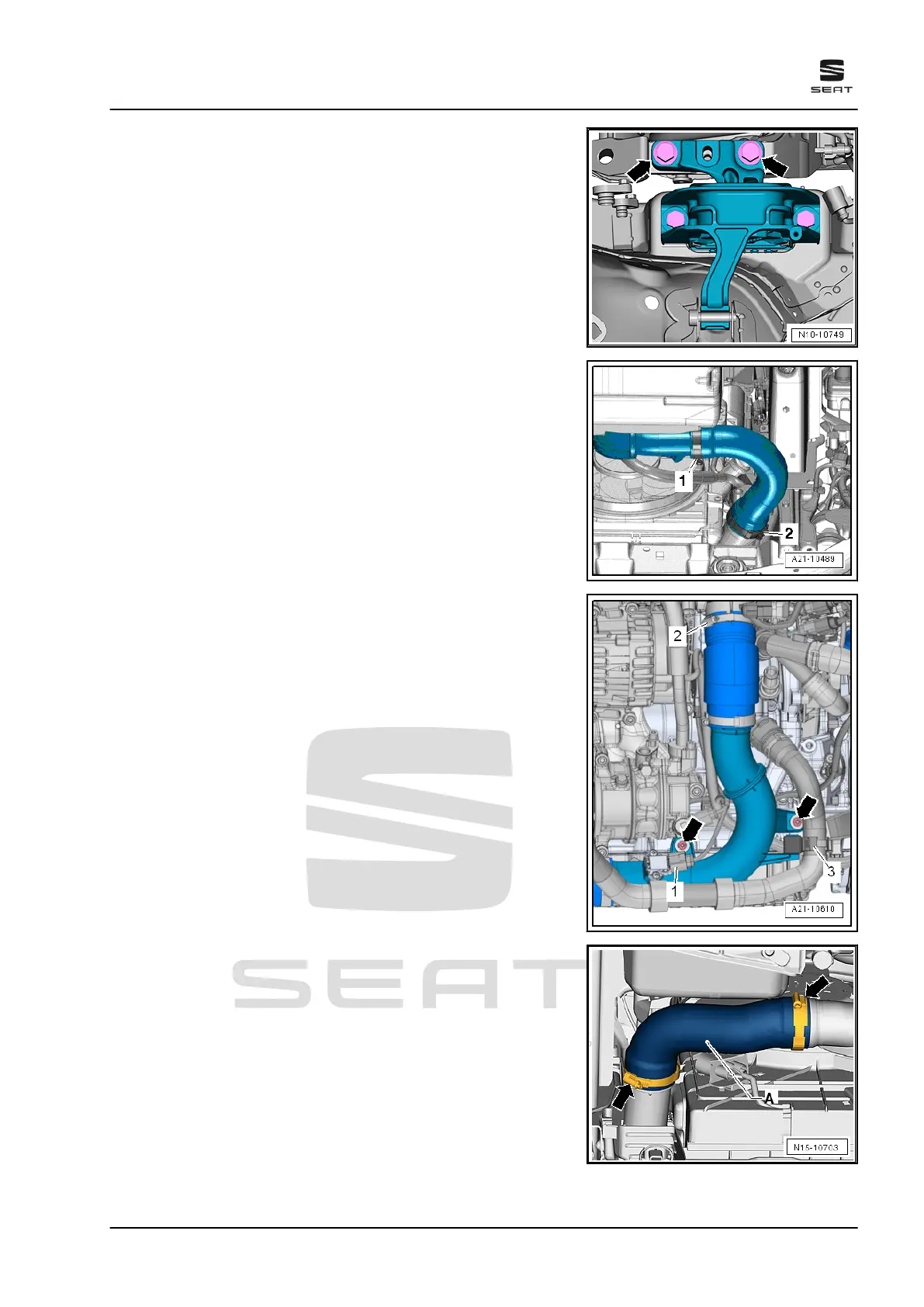

– Loosen bolts -arrows- for engine mounting approx. 2 turns.
– Release hose clip -1- and -2-, and remove right charge air
hose.
– Lay coolant hose -3- to one side.
– Unscrew bolts -arrows-.
– Unplug electrical connector -1- at charge pressure sender -
G31- .
– Detach air pipe (right-side).
– Loosen hose clips -arrows-, and remove charge air hose -A-.
– Seal open lines and connections with clean plugs from engine
bung set - VAS 6122- .
