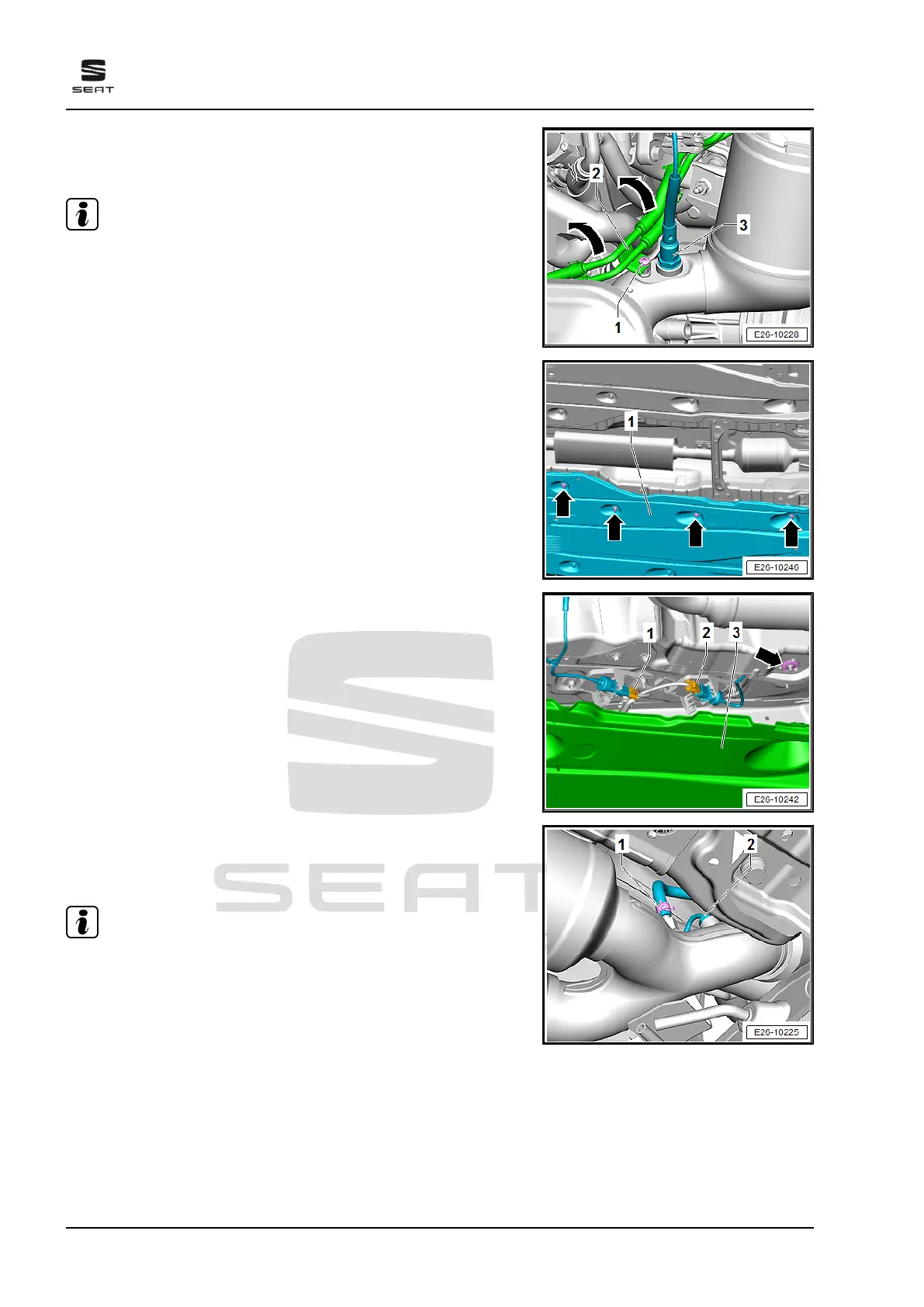

– Unscrew bolt -1- and remove wiring of pressure differential
sender for particulate filter - G1037- -2- in
-direction of arrow-.
Note
Disregard -item 3-.
– Unscrew the four plastic nuts -arrows- on the left underbody
trim -1- and move the trim slightly downward.
– Disconnect and remove the electrical connectors -1-, -2- of the
temperature sensor in front of -G506- and behind -G527- par‐
ticulate filter.
– Prise out the securing clip -arrow- (for heat shield of the centre
tunnel) using the removal lever - 80 200- .
– Unclip the wiring of the sensors -G506- and -G527- from the
fasteners.
Vehicles with particulate filter, all-wheel drive
– Open spring-type clip -1- and remove the hose from pressure
differential sender for particulate filter - G1037- .
Note
Disregard -item 2-.
