Further for models with all-wheel drive

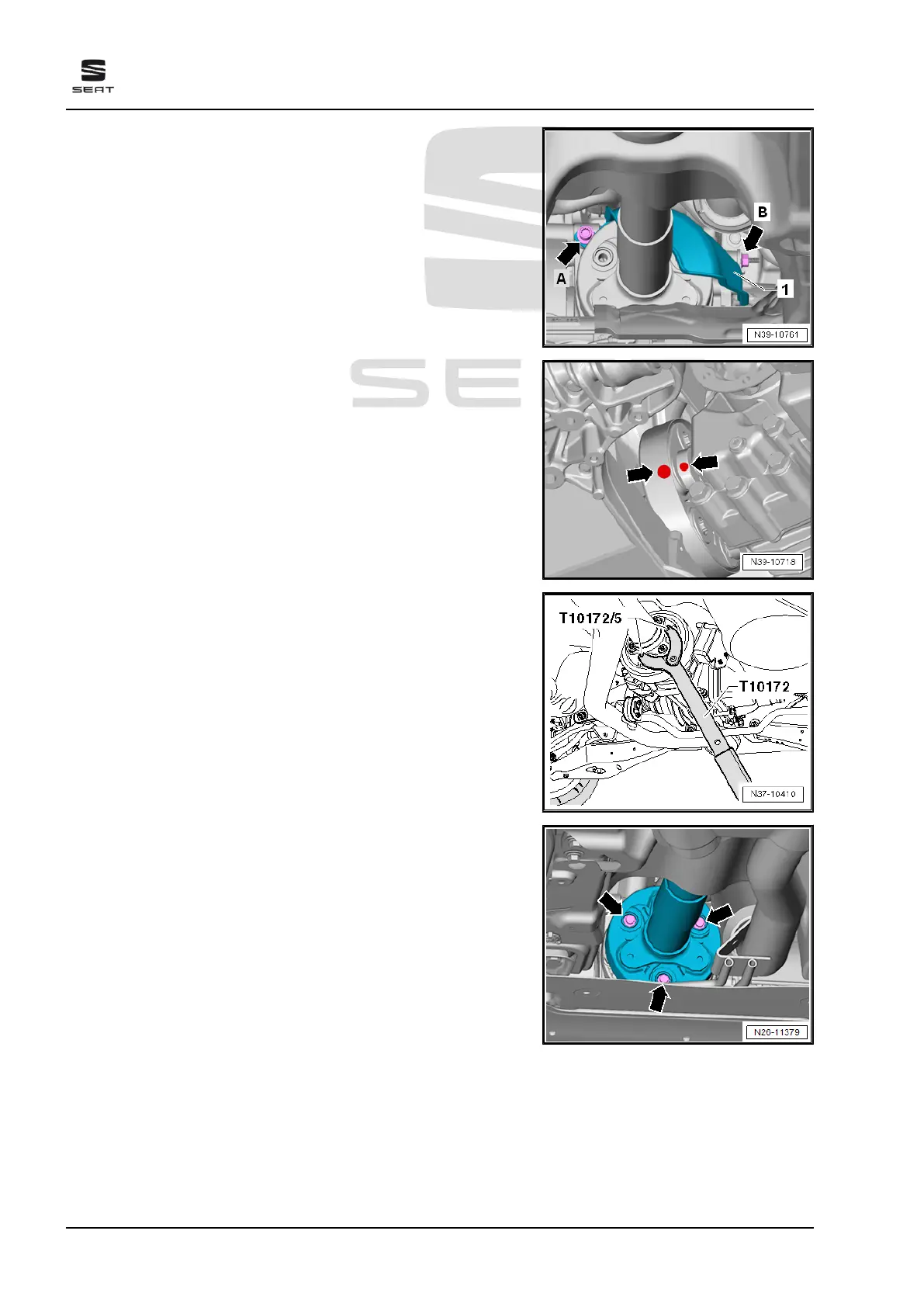

– Unscrew bolts -A- and -B- from bevel box and remove heat
shield -1-.
– Mark the position of the propshaft to the flange of the bevel
box.
– To loosen and tighten propshaft, counterhold on rear final
drive.
– Unscrew propshaft in the front bevel box -arrows-.
– Loosen clamp -1- between catalytic converter and front si‐
lencer, and push it in direction of travel -arrow-.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
26 Rep. gr.10 - Removing and installing engine
