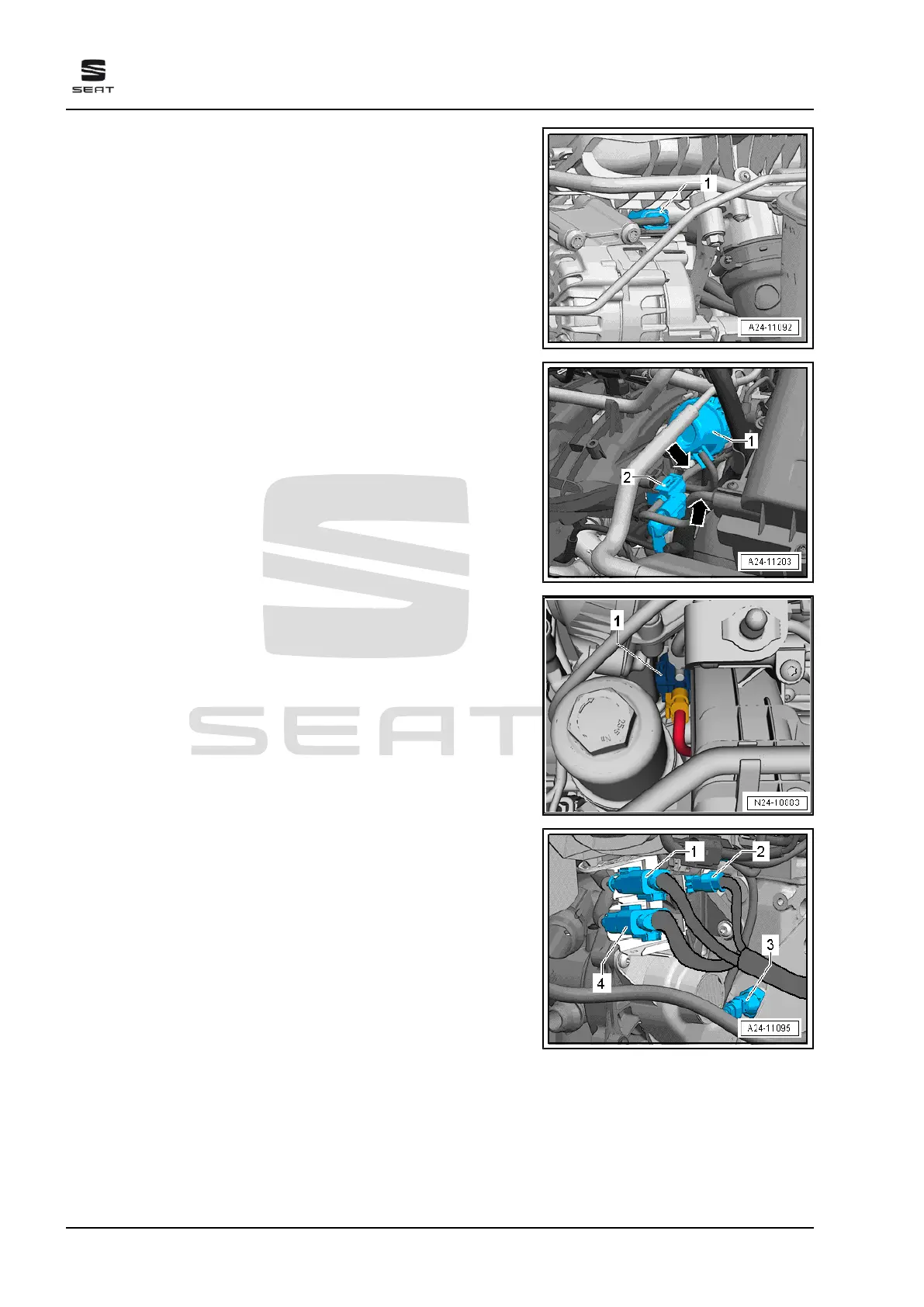

Fuel pressure sender in high-pressure system
1 - Fuel pressure sensor - G247-
Intake manifold change-over
1 - Vacuum unit for intake manifold flaps
2 - Intake manifold flap valve - N316-
Intake manifold flap potentiometer - G336- -1-
Bend aside retaining tabs to allow for pulling potentiometer out of
intake manifold
Electrical connectors
1 - for combustion chamber injectors, FSI
2 - For knock sensor 1 - G61-
3 - Stage 3 oil pressure switch - F447-
4 - For intake manifold flap valve - N316- , fuel pressure sender -
G247- , intake manifold flap potentiometer - G336- , coolant
temperature sender - G62- and Hall sender - G40-
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
338 Rep. gr.24 - Mixture preparation - injection
