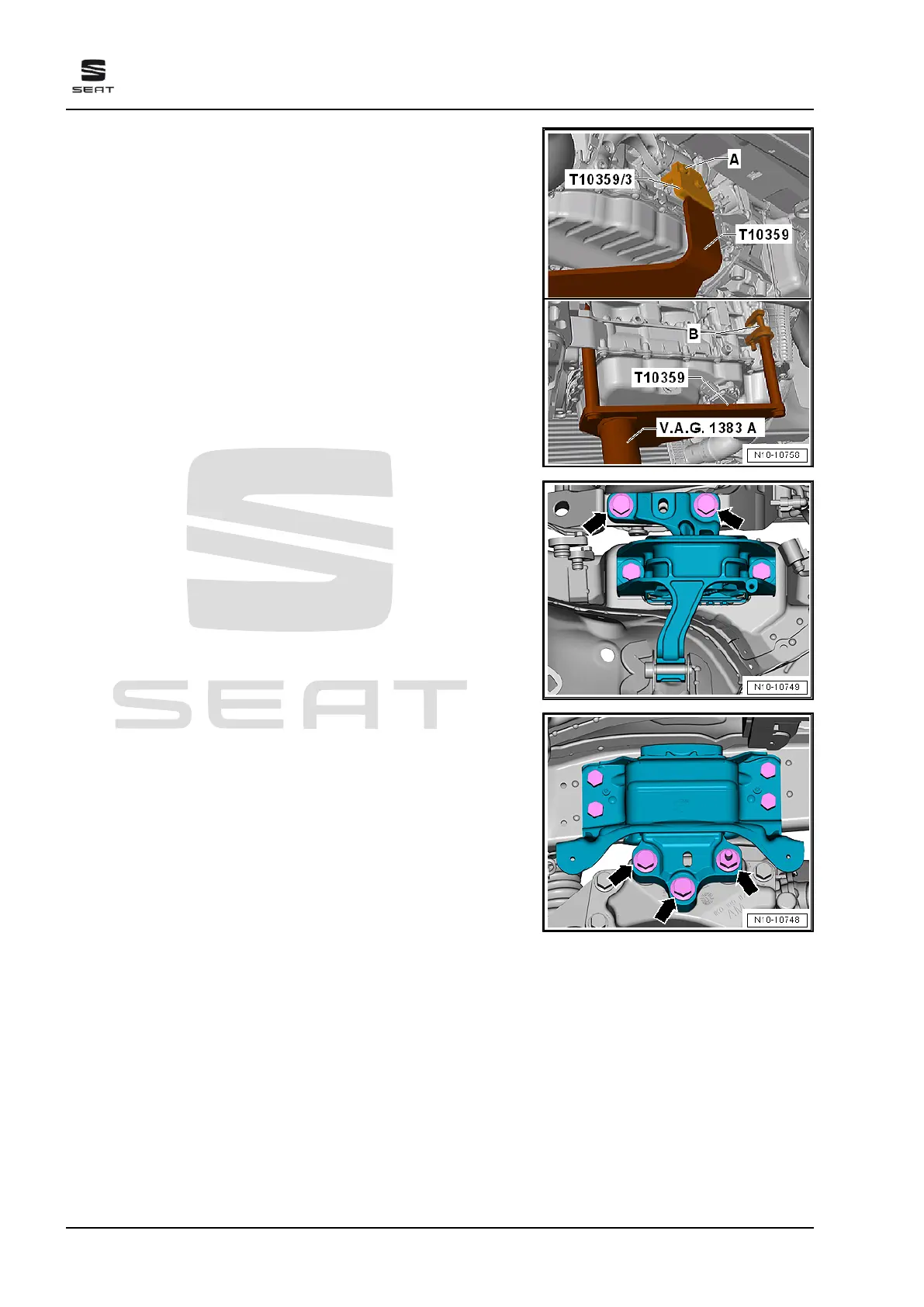

– Fit engine support - T10359- to cylinder block. Screw bolt -A-
with spacer sleeve into cylinder block. Specified torque:
20 Nm.
– Secure engine with locking element -B-, and slightly lift engine
with gearbox.
– Remove bolts -arrows- for engine mounting.
– Remove bolts -arrows- securing gearbox mounting.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
28 Rep. gr.10 - Removing and installing engine
