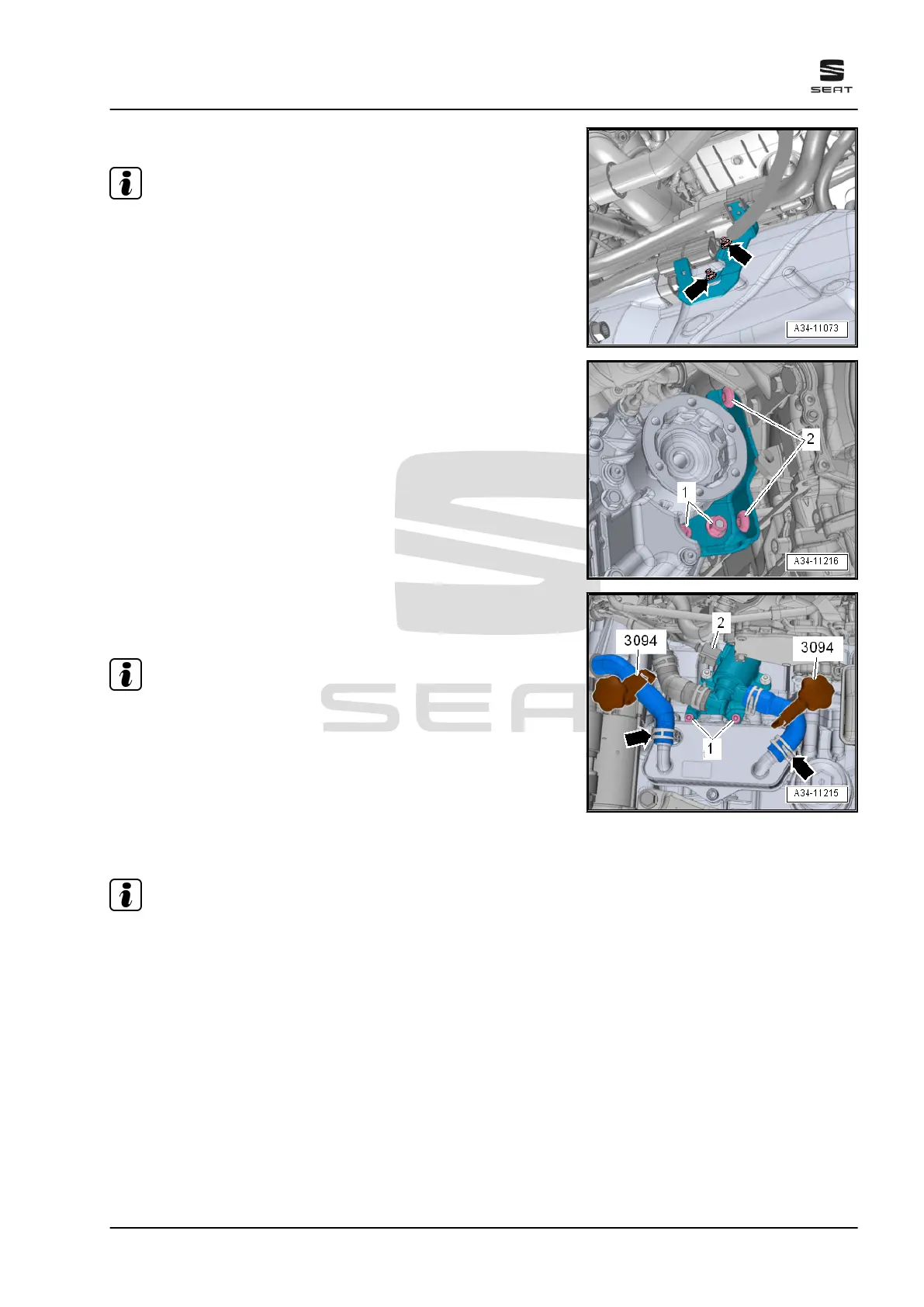

– Remove nuts -arrows- and detach bracket at front of oil pan.
Note
The studs are welded on to the front of the oil pan.
Vehicles with four wheel drive:
– Unscrew bolts-1, 2- and remove the holders of the bevel box.
Continued for all vehicles:
– Unplug electrical connector -2-.
Note
Use cloth to catch escaping coolant.
– Release hose clips -arrows- and detach coolant hoses from
gear oil cooler.
– Remove bolts -1- and move coolant valve for gearbox - N488-
clear to one side.
– Seal off open pipes/lines and connections immediately with
clean plugs from engine sealing cap set - VAS 6122- .
Note
Ignore -3094- .
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
1. Removing and installing the engine 35
