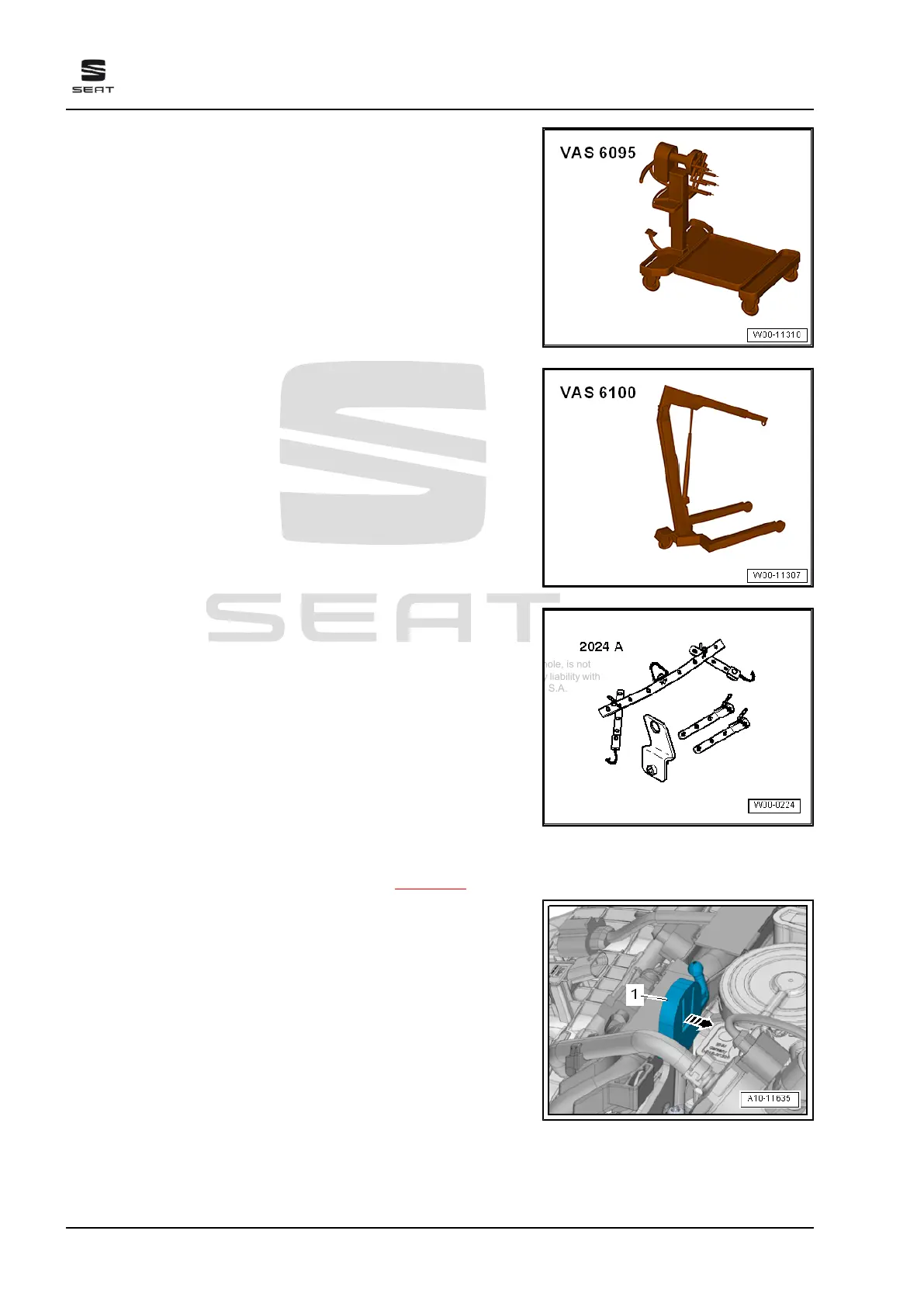

♦ Engine and gearbox support - VAS 6095-
♦ Workshop hoist - VAS 6100-
♦ Lifting tackle - 2024 A-
Operation process
• With the gearbox separated from the engine ⇒ page 29 .
– Release catch -arrow- and pull off mounting -1- for engine
cover panel.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
38 Rep. gr.10 - Removing and installing engine
