99

www.sauservice.com

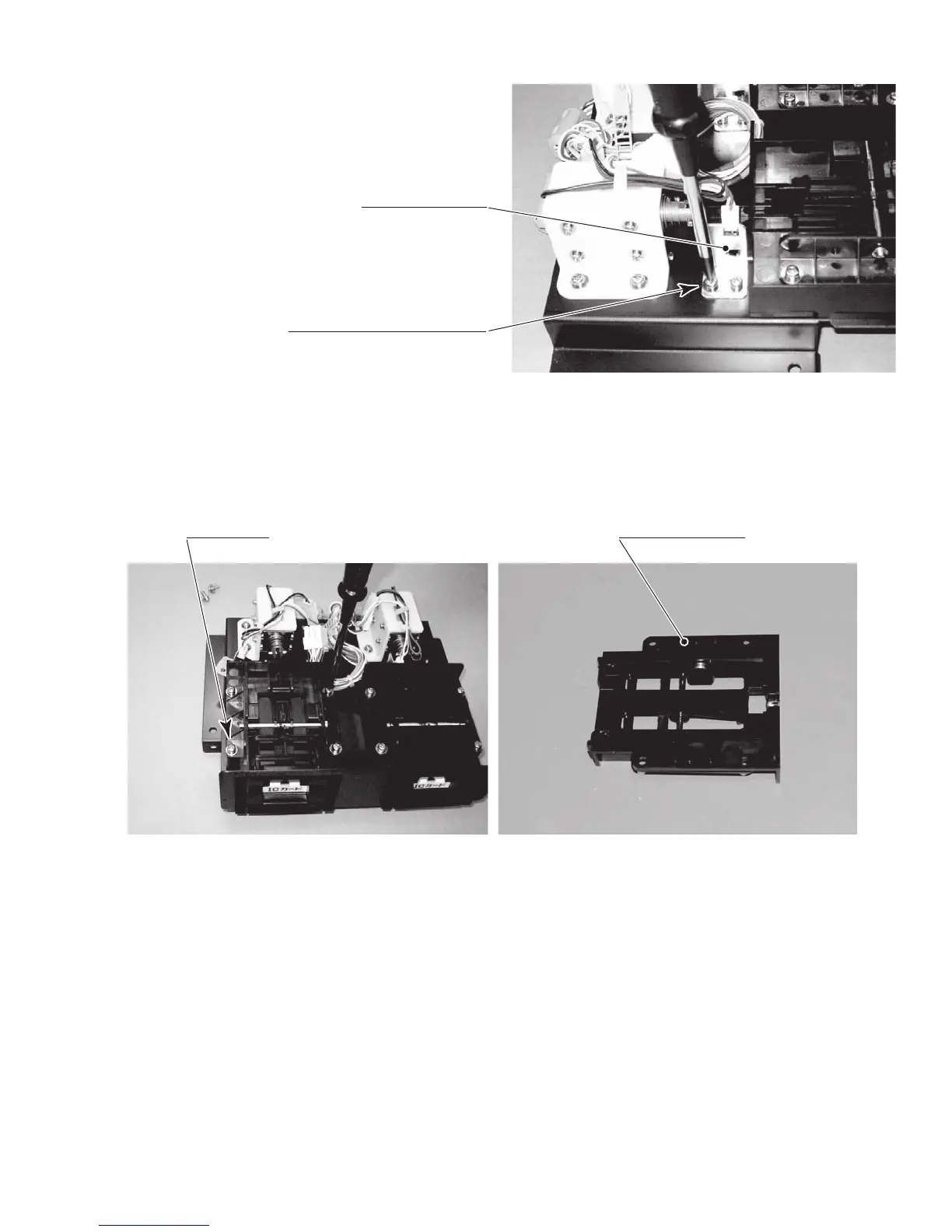

● Undo the 4 screws, and remove the RW guide upper.

● Undo the 2 screws and remove the sensor

bracket.

SCREW (2) 6

M4×10, w/ﬂat & spring washers

SENSOR BRACKET

SCREW (4)

M4×10, w/ﬂat & spring washers

RW GUIDE UPPER

PHOTO 11. 1 f

PHOTO 11. 1 g
