● Attach the RW guide upper by inserting the push rod from the RW guide lower into the hole in the RW
guide upper. Take care not to lose the roller at this time.
● Attach the RW guide upper. Take note of the following points when you are attaching this component.
Additionally, after attaching the RW guide upper, move the push rod with your hand to make sure that it
works correctly and that the tab passes through the hole.
• Insert the lock arm into the lower side of the push rod.
• Hook the spring onto the rib.
● Attach the sensor bracket by reversing the previously described procedure, and attach the IC card unit,
connect the connector and close the control panel.
● Lock the coin chute door.

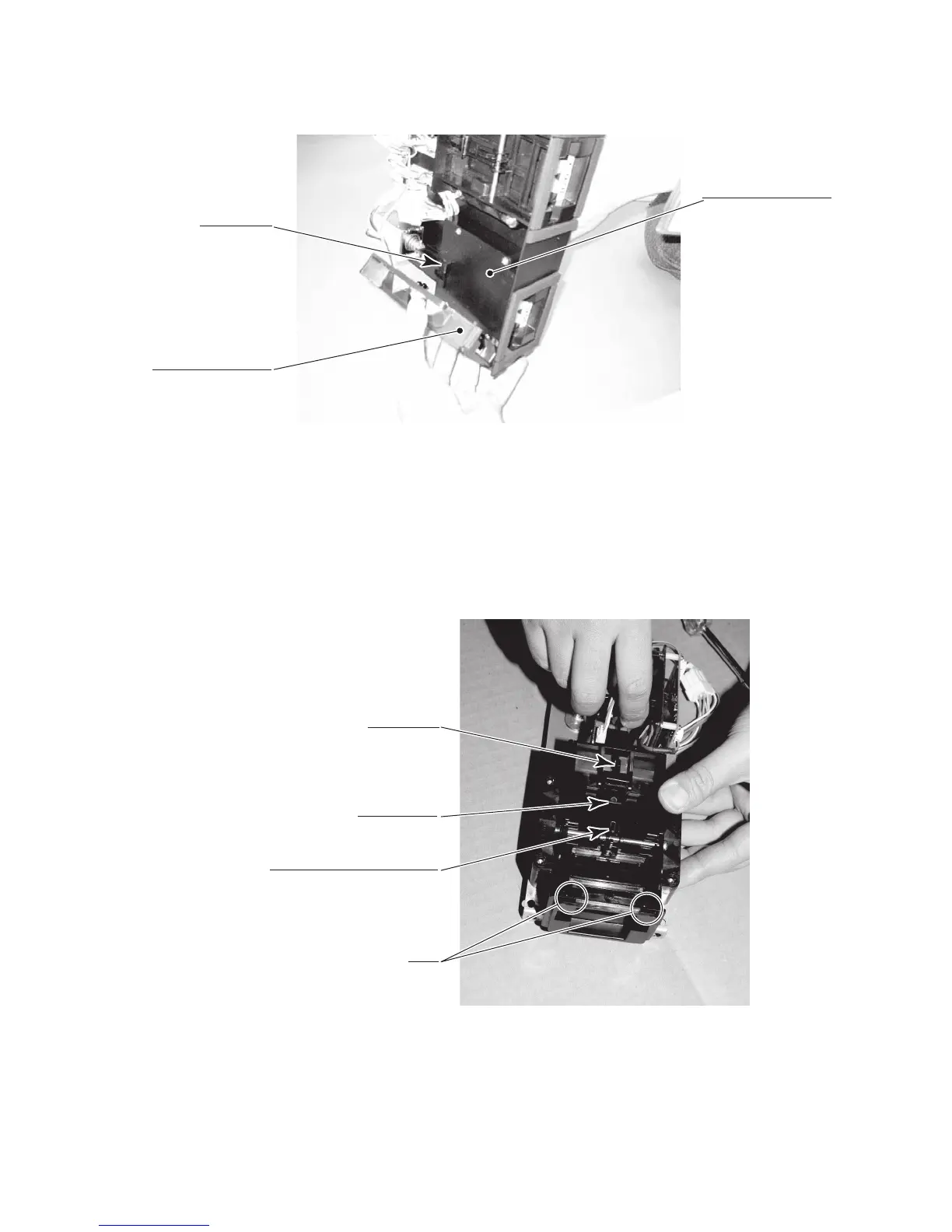

PUSH ROD
RW GUIDE UPPER
RW GUIDE LOWER
PUSH LOD
LOCK ARM
Hook the spring onto the rib.
TAB
PHOTO 11. 1 j
PHOTO 11. 1 k
