2.4
SEL-551 Relay Instruction Manual Date Code 20110408
Installation
Relay Mounting

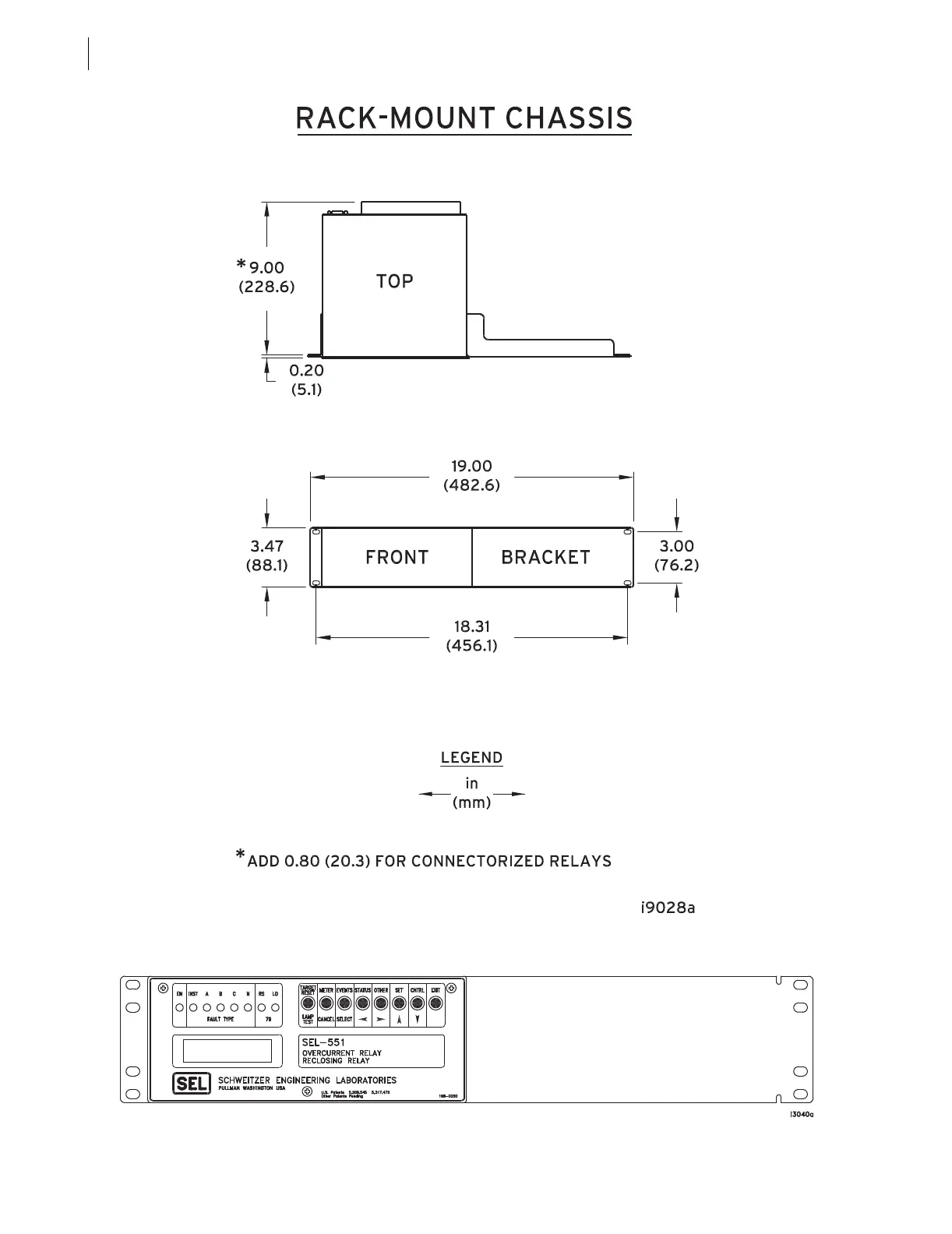

Figure 2.3 Relay Dimensions and Drill Plan for Mounting an SEL-551 With Rack Mount Bracket 9100 (Bracket on
Right Side in Front View)
Figure 2.4 SEL-551 Fitted with Mounting Bracket (SEL P/N 9100) for Mounting in 19-Inch Rack
