SEW-Eurodrive MOVIDRIVE MDA90A-0160-503-X-S00

3
Unit structure, axis system structure
Device structure of master module UHX45A/MDM90A
Operating Instructions – MOVIDRIVE
®
modular
44

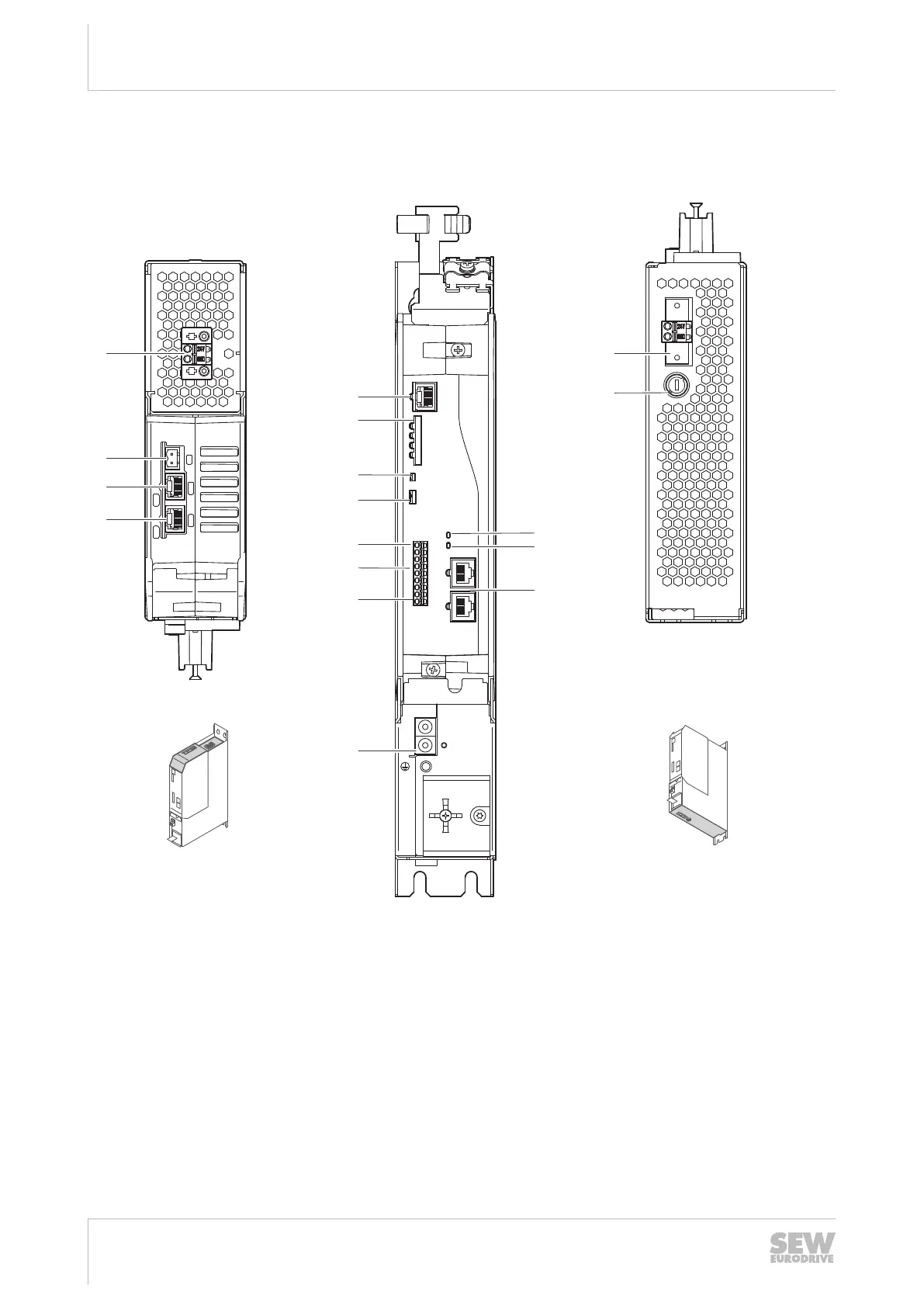

3.6 Device structure of master module UHX45A/MDM90A
X40
US1
BF
X85
S3
T1
L1
L/ A
X80
L2
L3
L4
XM
L5
L6
24V
24 V0V
X5
GND
L/ A
X41
L/ A
UH X 45A - N
XF X5_A
X5_B
X81 X 30
X5
L/ A L/ A
A B C
[15]
[14]
[13]
[1]
[5]
[6]
[11]
[16]
[17]
[12]
[9]
[10]
[2]
[3]
[4]
[7]
[8]
20806913419
A: View from top B: View from front C: View from bottom
[1] X5_B: Output of DC 24V supply voltage
of MDM90A
[5] X80: Engineering via Ethernet [16] X5_A: External 24V supply
voltage
[2] X5: Input of DC 24V supply voltage
UHX45A
[6] SD removable data storage [17] Fuse for DC 24V supply
UHX45A
[3] X30: EtherCAT
®
/SBus
PLUS
master [7] Reset of UHX45A
[4] X81: Ethernet port (reserved) [8] IP address of the engineering port
[9] X85/L5: CAN bus 1
[10] X85/L6: CAN-Bus 2
[11] RS485
[12] X5: Connection +24V supply voltage
[13] US1: Operating state of the fieldbus
[14] BF: Bus error
[15] X41: Fieldbus - slave interface
24748536/EN – 11/2017
